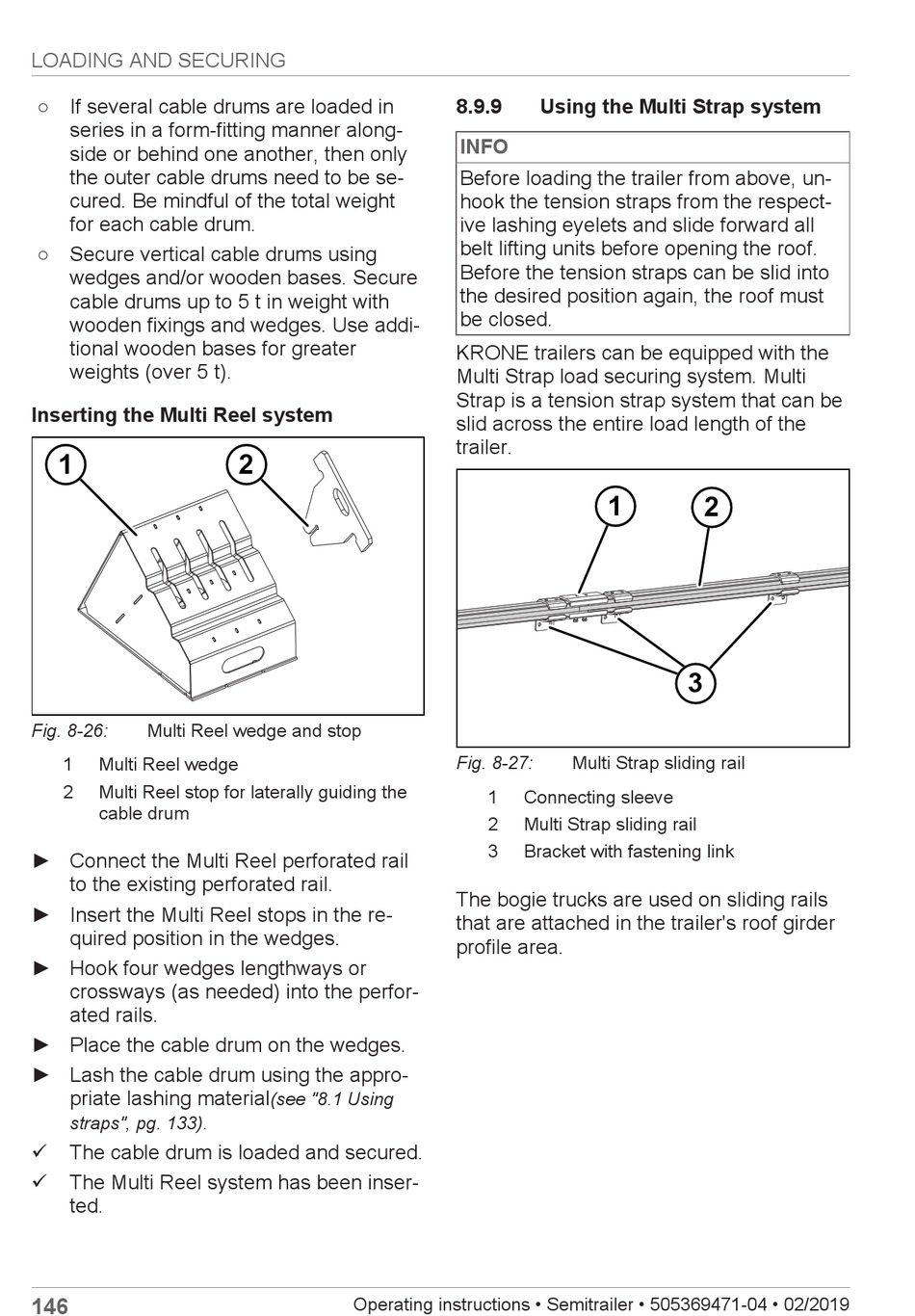

LOADING AND SECURING
○ If several cable drums are loaded in
series in a form-fitting manner along-
side or behind one another, then only
the outer cable drums need to be se-
cured. Be mindful of the total weight
for each cable drum.
○ Secure vertical cable drums using
wedges and/or wooden bases. Secure
cable drums up to 5 t in weight with
wooden fixings and wedges. Use addi-
tional wooden bases for greater
weights (over 5 t).
Inserting the Multi Reel system
1
Fig. 8-26: Multi Reel wedge and stop
1 Multi Reel wedge
2 Multi Reel stop for laterally guiding the
cable drum
► Connect the Multi Reel perforated rail
to the existing perforated rail.
► Insert the Multi Reel stops in the re-
quired position in the wedges.
► Hook four wedges lengthways or
crossways (as needed) into the perfor-
ated rails.
► Place the cable drum on the wedges.
► Lash the cable drum using the appro-
priate lashing material
.
straps", pg. 133)
ü
The cable drum is loaded and secured.
ü
The Multi Reel system has been inser-
ted.
146
2
(see "8.1 Using
Operating instructions • Semitrailer • 505369471-04 • 02/2019
8.9.9

Using the Multi Strap system

INFO
Before loading the trailer from above, un-
hook the tension straps from the respect-
ive lashing eyelets and slide forward all
belt lifting units before opening the roof.
Before the tension straps can be slid into
the desired position again, the roof must
be closed.
KRONE trailers can be equipped with the
Multi Strap load securing system. Multi
Strap is a tension strap system that can be
slid across the entire load length of the
trailer.
1
Fig. 8-27: Multi Strap sliding rail
1 Connecting sleeve
2 Multi Strap sliding rail
3 Bracket with fastening link
The bogie trucks are used on sliding rails
that are attached in the trailer's roof girder
profile area.
2
3
