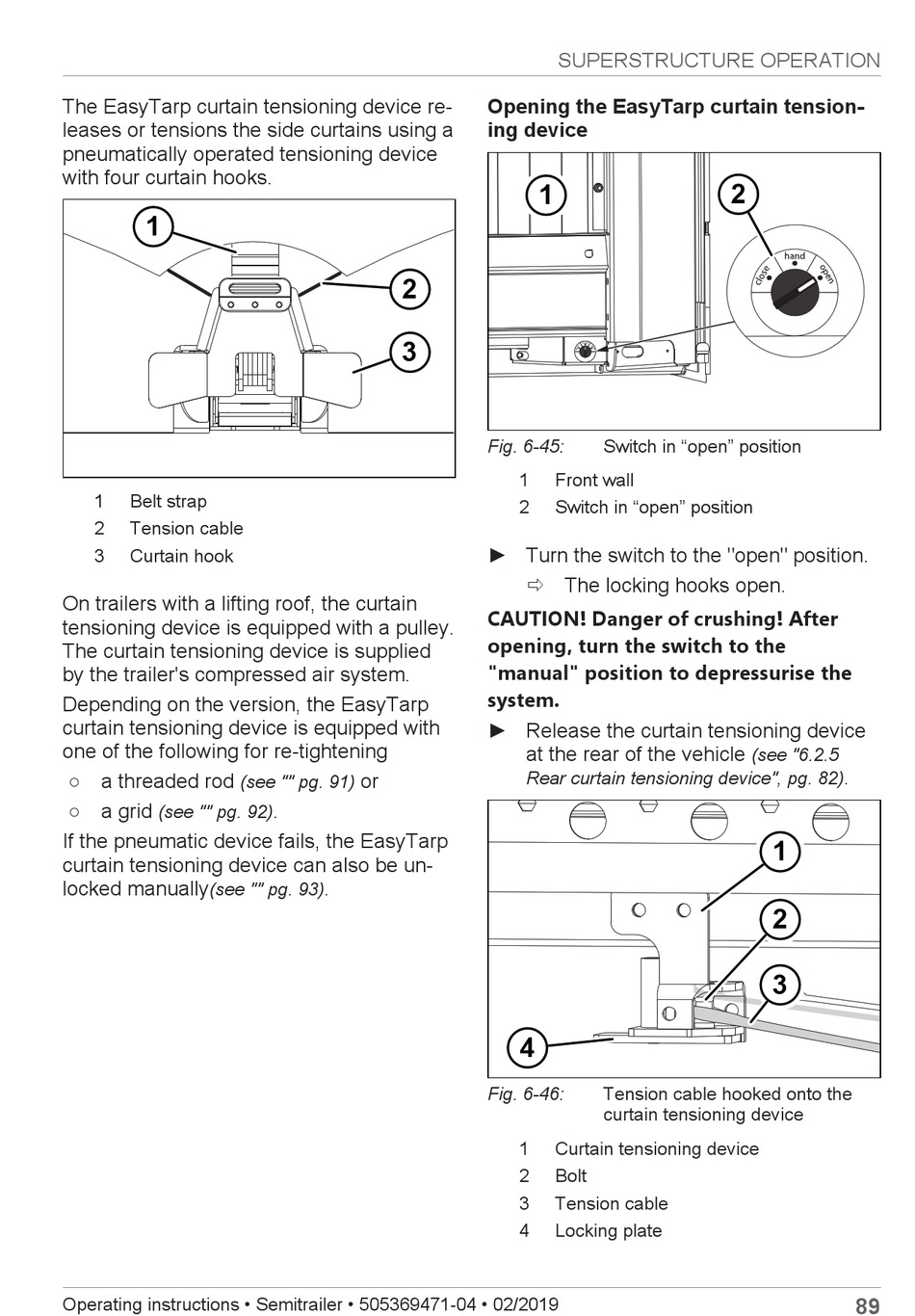

The EasyTarp curtain tensioning device re-
leases or tensions the side curtains using a
pneumatically operated tensioning device
with four curtain hooks.
1
1 Belt strap
2 Tension cable
3 Curtain hook
On trailers with a lifting roof, the curtain
tensioning device is equipped with a pulley.
The curtain tensioning device is supplied
by the trailer's compressed air system.
Depending on the version, the EasyTarp
curtain tensioning device is equipped with
one of the following for re-tightening
○ a threaded rod
○ a grid
(see "" pg. 92)
If the pneumatic device fails, the EasyTarp
curtain tensioning device can also be un-
locked manually
(see "" pg. 93)
Operating instructions • Semitrailer • 505369471-04 • 02/2019
2
3
or
(see "" pg. 91)
.
.
SUPERSTRUCTURE OPERATION
Opening the EasyTarp curtain tension-
ing device
1
Fig. 6-45: Switch in "open" position
1 Front wall
2 Switch in "open" position
► Turn the switch to the "open" position.
ð The locking hooks open.
CAUTION! Danger of crushing! After
opening, turn the switch to the
"manual" position to depressurise the
system.
► Release the curtain tensioning device
at the rear of the vehicle
Rear curtain tensioning device", pg. 82)
4
Fig. 6-46: Tension cable hooked onto the
curtain tensioning device
1 Curtain tensioning device
2 Bolt
3 Tension cable
4 Locking plate
2
(see "6.2.5
.
1
2
3
