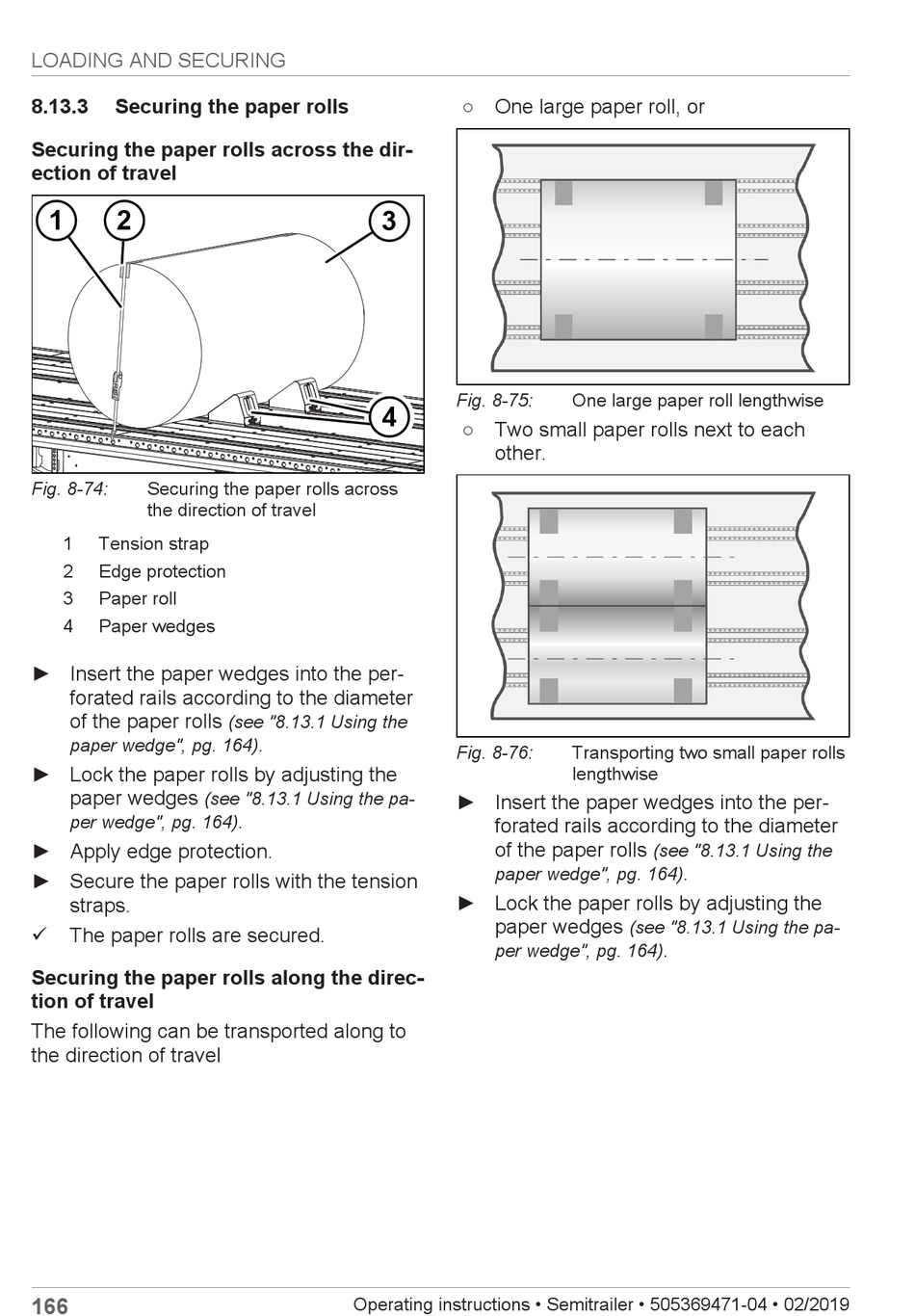

LOADING AND SECURING
8.13.3 Securing the paper rolls
Securing the paper rolls across the dir-
ection of travel
1 2
Fig. 8-74: Securing the paper rolls across
the direction of travel
1 Tension strap
2 Edge protection
3 Paper roll
4 Paper wedges
► Insert the paper wedges into the per-
forated rails according to the diameter
of the paper rolls
paper wedge", pg. 164)
► Lock the paper rolls by adjusting the
paper wedges
(see "8.13.1 Using the pa-
per wedge", pg. 164)
► Apply edge protection.
► Secure the paper rolls with the tension
straps.
ü
The paper rolls are secured.
Securing the paper rolls along the direc-
tion of travel
The following can be transported along to
the direction of travel
166
3
4
(see "8.13.1 Using the
.
.
Operating instructions • Semitrailer • 505369471-04 • 02/2019
○ One large paper roll, or
Fig. 8-75: One large paper roll lengthwise
○ Two small paper rolls next to each
other.
Fig. 8-76: Transporting two small paper rolls
lengthwise
► Insert the paper wedges into the per-
forated rails according to the diameter
of the paper rolls
paper wedge", pg. 164)
► Lock the paper rolls by adjusting the
paper wedges
(see "8.13.1 Using the pa-
per wedge", pg. 164)
(see "8.13.1 Using the
.
.
