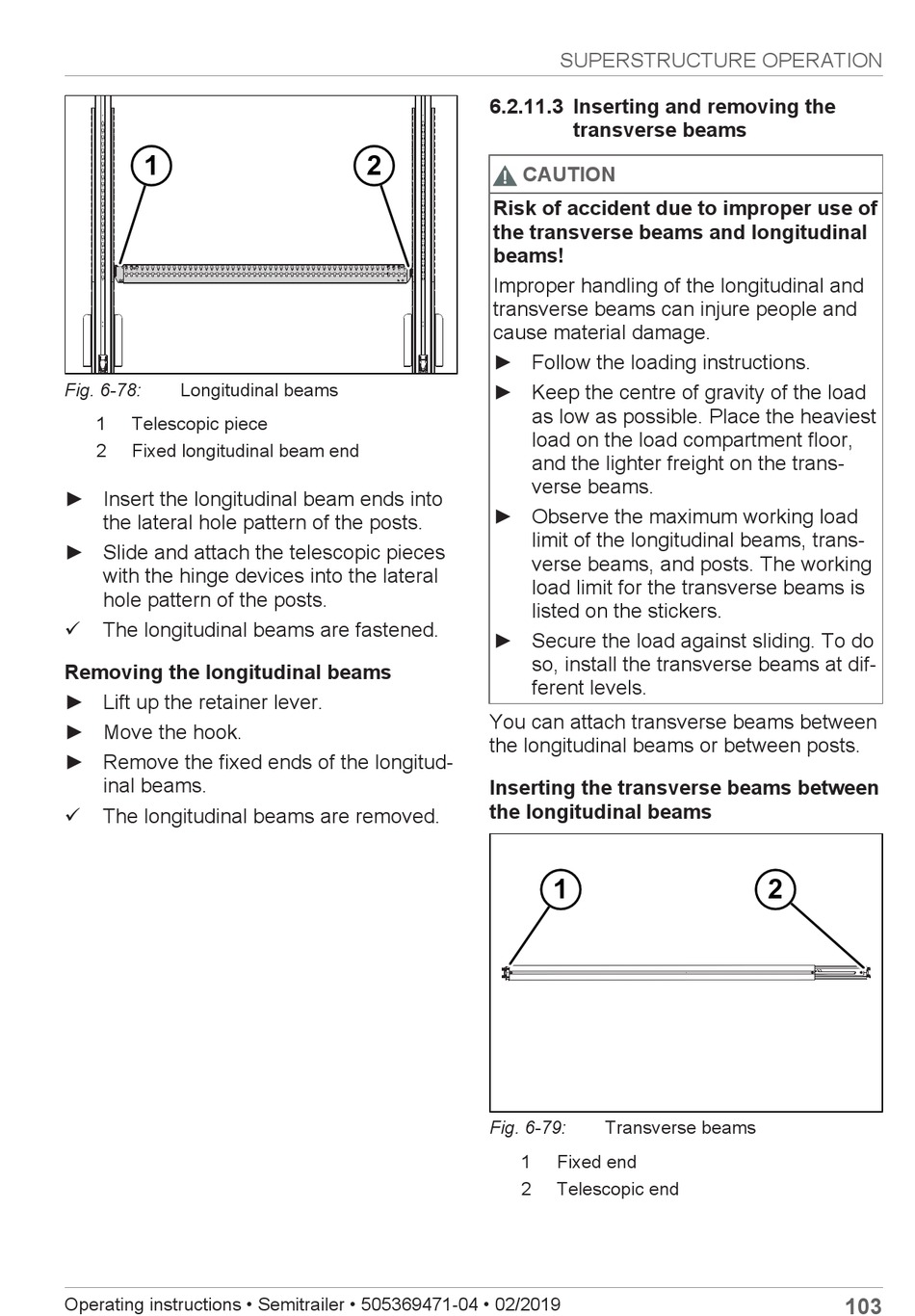

Fig. 6-78: Longitudinal beams
1 Telescopic piece
2 Fixed longitudinal beam end
► Insert the longitudinal beam ends into
the lateral hole pattern of the posts.
► Slide and attach the telescopic pieces
with the hinge devices into the lateral
hole pattern of the posts.
ü
The longitudinal beams are fastened.
Removing the longitudinal beams
► Lift up the retainer lever.
► Move the hook.
► Remove the fixed ends of the longitud-
inal beams.
ü
The longitudinal beams are removed.
Operating instructions • Semitrailer • 505369471-04 • 02/2019
6.2.11.3 Inserting and removing the
2
CAUTION
Risk of accident due to improper use of
the transverse beams and longitudinal
beams!
Improper handling of the longitudinal and
transverse beams can injure people and
cause material damage.
► Follow the loading instructions.
► Keep the centre of gravity of the load
as low as possible. Place the heaviest
load on the load compartment floor,
and the lighter freight on the trans-
verse beams.
► Observe the maximum working load
limit of the longitudinal beams, trans-
verse beams, and posts. The working
load limit for the transverse beams is
listed on the stickers.
► Secure the load against sliding. To do
so, install the transverse beams at dif-
ferent levels.
You can attach transverse beams between
the longitudinal beams or between posts.
Inserting the transverse beams between
the longitudinal beams
Fig. 6-79:
1
2
SUPERSTRUCTURE OPERATION
transverse beams
1
Transverse beams
Fixed end
Telescopic end
2
