Opening the pallet storage box

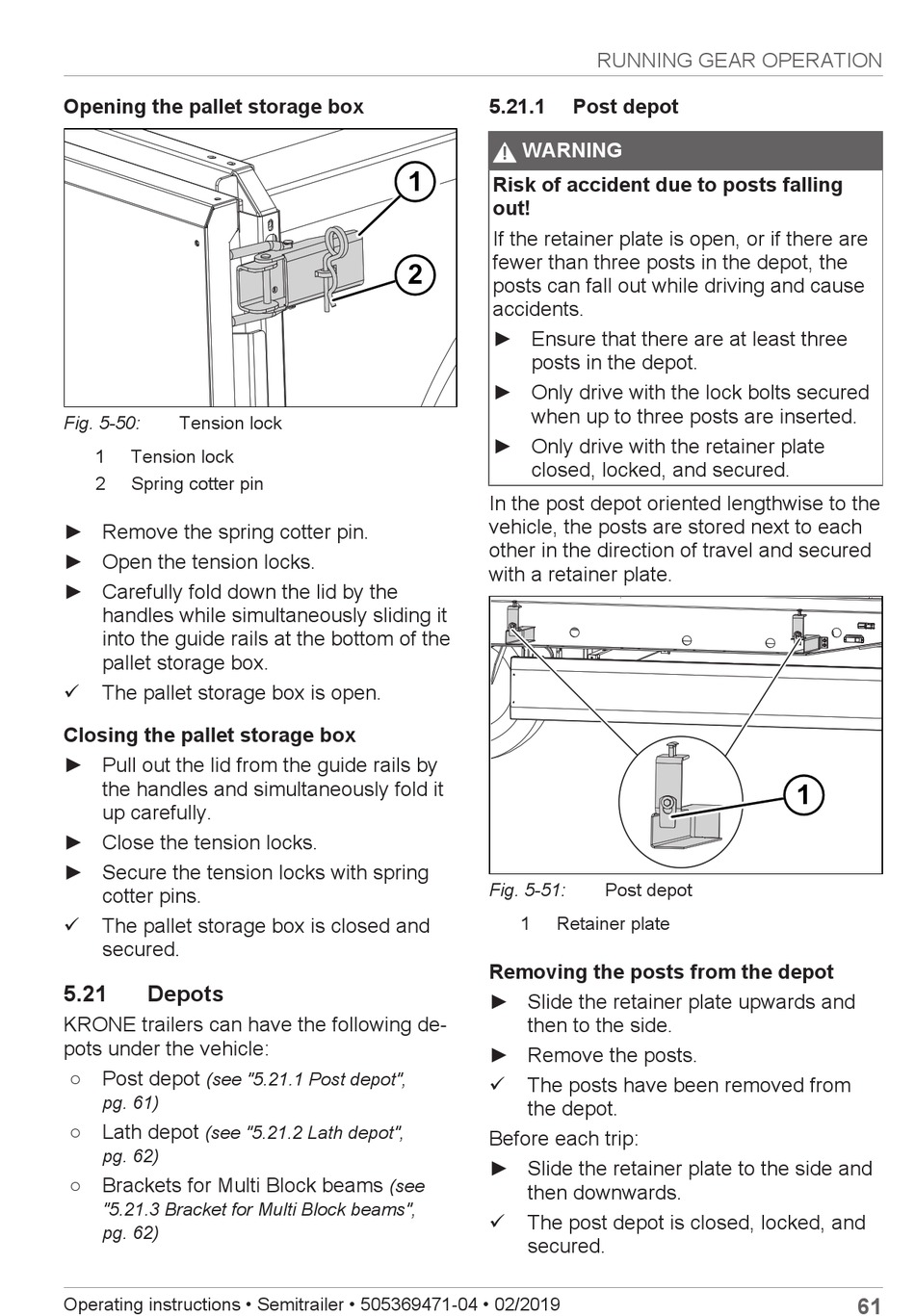

Fig. 5-50: Tension lock
1 Tension lock
2 Spring cotter pin
► Remove the spring cotter pin.
► Open the tension locks.
► Carefully fold down the lid by the
handles while simultaneously sliding it
into the guide rails at the bottom of the
pallet storage box.
ü
The pallet storage box is open.
Closing the pallet storage box
► Pull out the lid from the guide rails by
the handles and simultaneously fold it
up carefully.
► Close the tension locks.
► Secure the tension locks with spring
cotter pins.
ü
The pallet storage box is closed and
secured.
5.21

Depots

KRONE trailers can have the following de-
pots under the vehicle:
○ Post depot
(see "5.21.1 Post depot",
pg. 61)
○ Lath depot
(see "5.21.2 Lath depot",
pg. 62)
○ Brackets for Multi Block beams
"5.21.3 Bracket for Multi Block beams",
pg. 62)
Operating instructions • Semitrailer • 505369471-04 • 02/2019
5.21.1 Post depot
!
WARNING
1
Risk of accident due to posts falling
out!
If the retainer plate is open, or if there are
fewer than three posts in the depot, the
2
posts can fall out while driving and cause
accidents.
► Ensure that there are at least three
posts in the depot.
► Only drive with the lock bolts secured
when up to three posts are inserted.
► Only drive with the retainer plate
closed, locked, and secured.
In the post depot oriented lengthwise to the
vehicle, the posts are stored next to each
other in the direction of travel and secured
with a retainer plate.
Fig. 5-51:
1 Retainer plate
Removing the posts from the depot
► Slide the retainer plate upwards and
then to the side.
► Remove the posts.
ü The posts have been removed from
the depot.
Before each trip:
► Slide the retainer plate to the side and
(see
then downwards.
ü
The post depot is closed, locked, and
secured.
