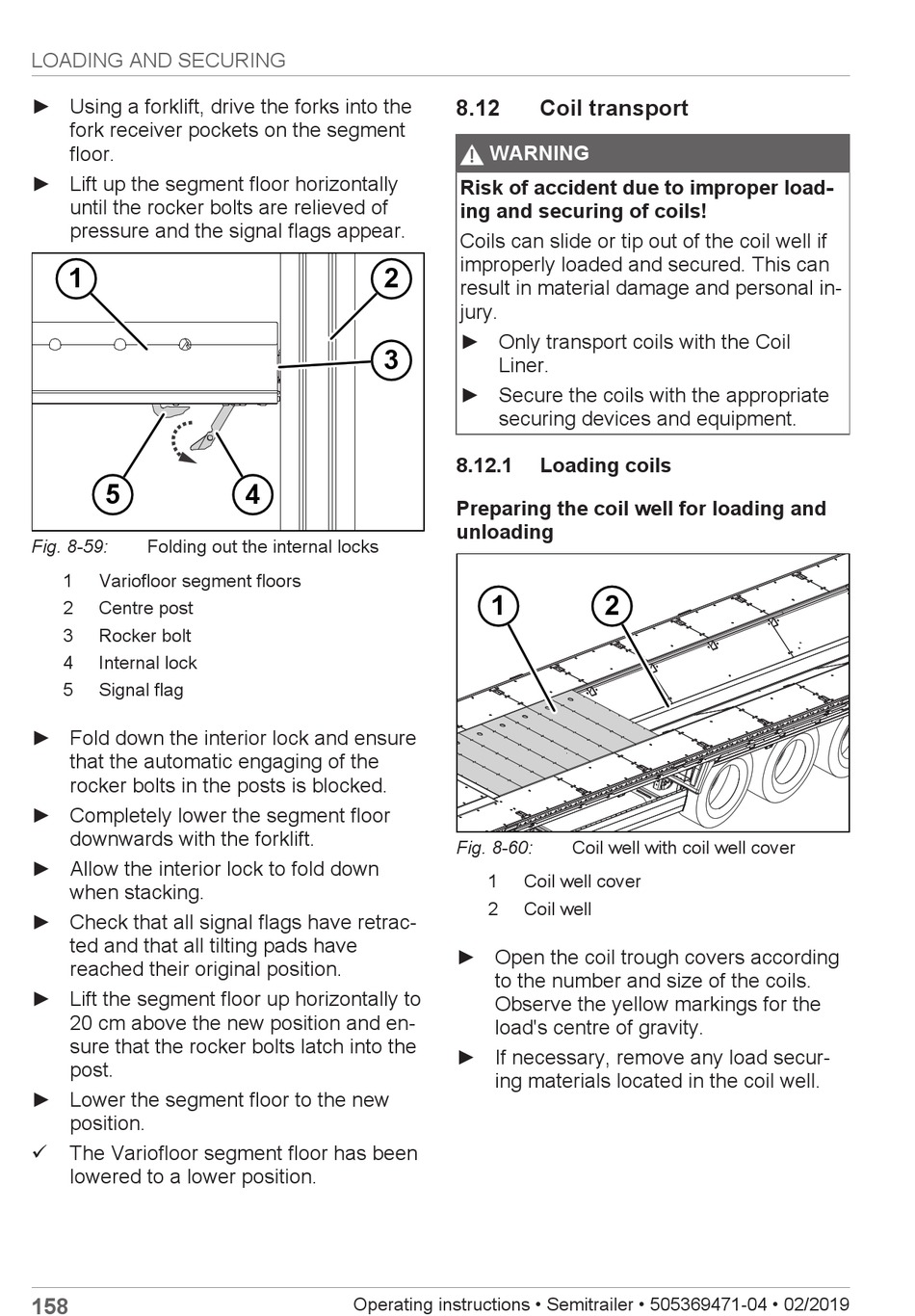

LOADING AND SECURING
► Using a forklift, drive the forks into the
fork receiver pockets on the segment
floor.
► Lift up the segment floor horizontally
until the rocker bolts are relieved of
pressure and the signal flags appear.
1
5
Fig. 8-59: Folding out the internal locks
1 Variofloor segment floors
2 Centre post
3 Rocker bolt
4 Internal lock
5 Signal flag
► Fold down the interior lock and ensure
that the automatic engaging of the
rocker bolts in the posts is blocked.
► Completely lower the segment floor
downwards with the forklift.
► Allow the interior lock to fold down
when stacking.
► Check that all signal flags have retrac-
ted and that all tilting pads have
reached their original position.
► Lift the segment floor up horizontally to
20 cm above the new position and en-
sure that the rocker bolts latch into the
post.
► Lower the segment floor to the new
position.
ü
The Variofloor segment floor has been
lowered to a lower position.
158
2
3
4
Operating instructions • Semitrailer • 505369471-04 • 02/2019
8.12

Coil transport

!
WARNING
Risk of accident due to improper load-
ing and securing of coils!
Coils can slide or tip out of the coil well if
improperly loaded and secured. This can
result in material damage and personal in-
jury.
► Only transport coils with the Coil
Liner.
► Secure the coils with the appropriate
securing devices and equipment.
8.12.1 Loading coils
Preparing the coil well for loading and
unloading
1 2
Fig. 8-60: Coil well with coil well cover
1 Coil well cover
2 Coil well
► Open the coil trough covers according
to the number and size of the coils.
Observe the yellow markings for the
load's centre of gravity.
► If necessary, remove any load secur-
ing materials located in the coil well.
