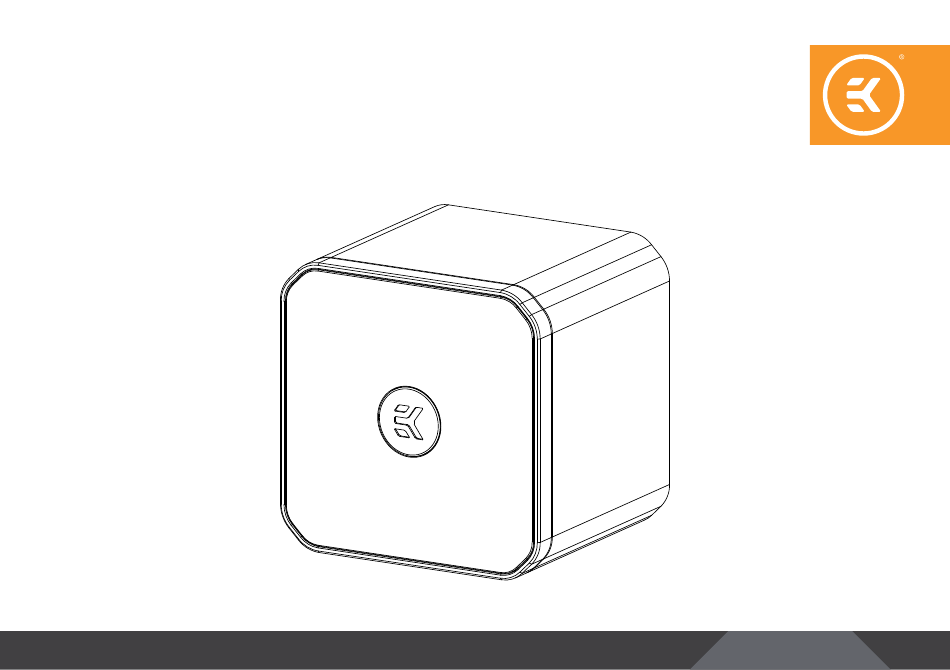

  • Page 1 EK-Quantum Convection D5 D-RGB USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS PRODUCT DIMENSIONS TECHNICAL SPECIFICATIONS AND MAIN PARTS INSTALLING THE PUMP COVER CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
  • Page 4: Box Contents

    BOX CONTENTS D5 Convection Cover Assembly (1 pc) LED D-RGB Strip (1 pc) M4 x 50 DIN7984 Screw (4 pcs) Metal cable holder (1 pc) M2.5 x 5 AX1 Screw (2 pcs) - 4 -...
  • Page 5: Product Dimensions

    PRODUCT DIMENSIONS 71 mm 62 mm - 5 -...
  • Page 6: Technical Specifications And Main Parts

    – D-RGB cable length: 50 cm – D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground) Position Description Quantity ALU - Convection D5 D-RGB - 107465 Base (Nickel) ALU - Convection D5 D-RGB - 107446 Base (Black)
  • Page 7: Installing The Pump Cover

    INSTALLING THE PUMP COVER STEP 1 Insert the D5 Pump into the Pump Cover Base and position the M2.5 X 5 AX1 cables in the shown place. Secure the cables with the provided SCREW metal Cable Holder and two (2) M2.5 x 5 AX1 Screws. CABLE HOLDER *The D5 Pump is not included in the package! PUMP COVER...
  • Page 8 STEP 2 After securing the cables, position the D5 Pump Cover onto the desired product and secure it with four (4) M4 X 50 DIN7984 M4 x 50 DIN7984 mounting screws. Make sure to not overtighten the screws! Max SCREW Torque: 0.6Nm.
  • Page 9 STEP 3 Place the D-RGB LED Strip in the shown place. The D-RGB LED D-RGB LED STRIP strip does not need to be glued. For this step, you will need: D-RGB LED Strip (1 pc) STEP 3 STEP 4 Pick up the pre-assembled Light Guide set and carefully place it over LIGHT GUIDE SET the D-RGB LED Strip.
  • Page 10: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin connector of the Pump cover D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, empty, Ground.
  • Page 11: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 12: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
