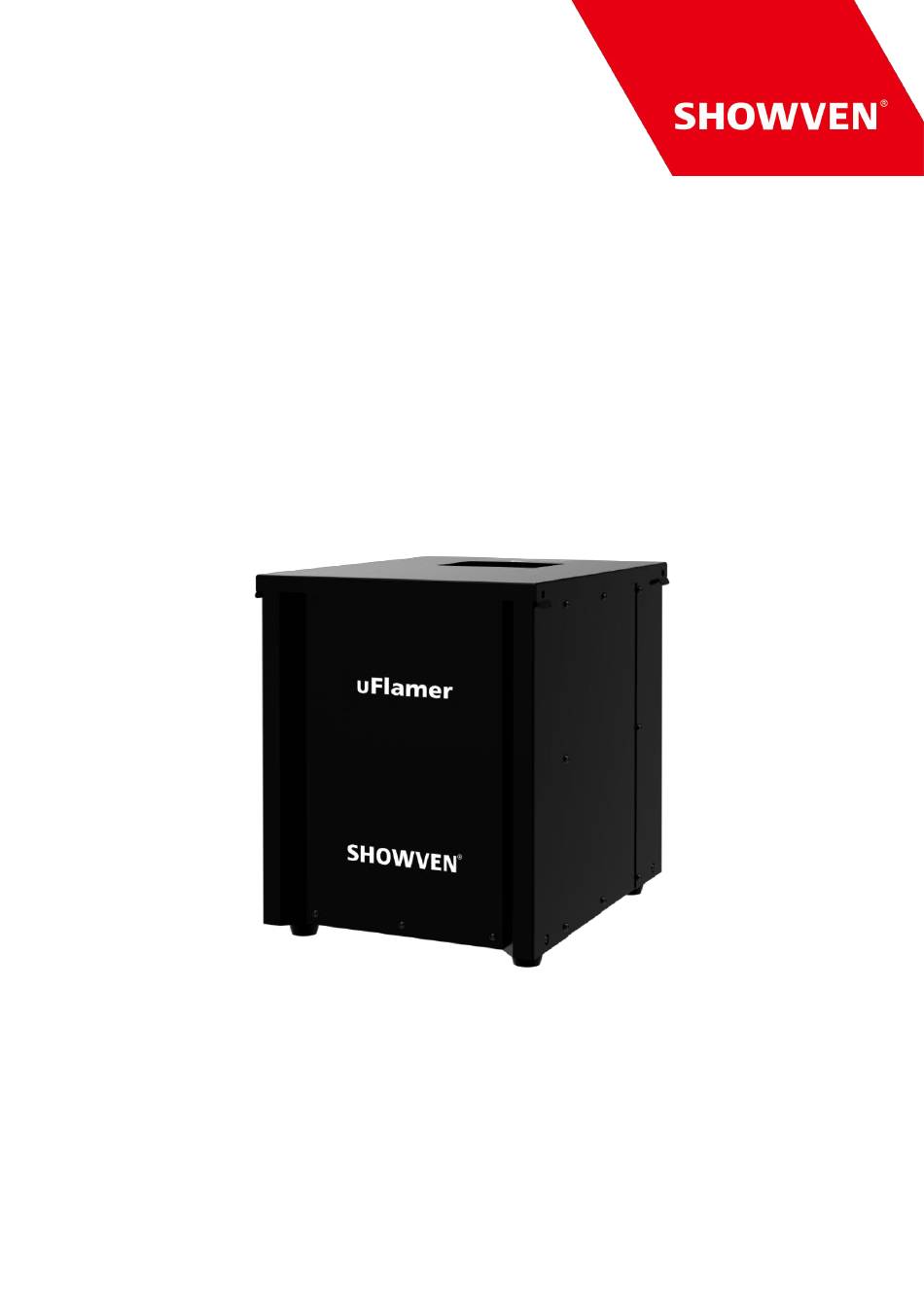

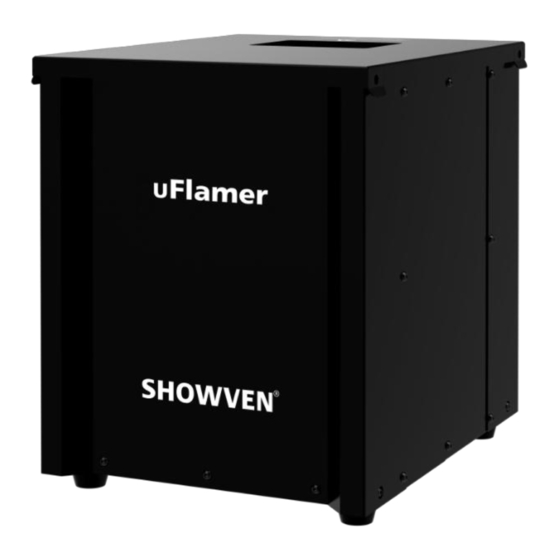

- Page 1 USER MANUAL uFlamer V1.0 2019.12 Showven Technologies Co., Ltd...
- Page 2 Do not smoke! The operator responsible for the control of uFlamer must always have a clear view of the device, so that he/she can stop the show immediately when there is danger. The main AC power switch should near operator.
-
Page 3: Technical Specifications
Effect Maximum Height 8-10m (no wind) ISOPROPANOL Fuel ISOPAR G,H,L,M Fuel Bottle Capacity Weight (no fuel) 14KG Fuel Consumption Rate 60ml/s ▲Structure of uFlamer 1. Firing Box 2. Top Panel 3. Fuel Bottle Area 4. Control Panel 5. Safety Loop... -
Page 4: Overview Of Control Panel
▲Connection dimension diagram of bottom bracket of the flamer ▲Overview of Control Panel 1. LCD screen operate panel 2. ON/OFF switch 3. Safety Lock 4. 3-pin DMX socket 5. 5-pin DMX socket 6. 110V/220V Power socket 7. Input Charging... -
Page 5: Operation Panel
▲Operation Panel 1. LED Display Area : Radio receiving (reserved) DMX : DMX signal. Flash means DMX signal available, otherwise no DMX signal : Light on when there is an error PUMP : Light on when pump is running 2. Button Funtions: MENU : Switch interface to setup parameter;... - Page 6 5. Alert Message Alert Message Explanation Test Mode Safety lock located at TEST MODE Factory Mode DMX signal blocked in factory mode Pressuriser for about 13s, pressure value failed to reach 100%, system will report E1 Pressure Err E1. Possible fault: No fuel, pump failure, pipeline problem etc. Pipeline can't release pressure leads to pressure relief error.
- Page 7 ▲Operation Instructions 1. Direction explanation Please read the safety instructions printed on the top panel of uFlamer carefully. is at least 15m in projection directions and 5m around. Safety distances for uFlamer 2. DMX ChannelMode selection for host controller ZK6200/ZK6300...
- Page 8 3. Quick Operation Sheet for reference (Specialized for host controller ZK6200/ZK6300) Immediately upon receiving the machine, carefully unpack the carton, check the machine received in good condition. Ensure safety operation of machine, please do following below operation procedures when operate uFlamer . Operation step Schematic diagram and explanation Explanation The device can only be placed horizontally, if 1.
- Page 9 (both of the lights on) Host controller: Press “FIRING” key 12. Firing Relief pressure when shows finished or 13. Pressure uFlamer not use for a long period. Relief Host controller: Press “pre-heat” key (both of the lights off) 14. Switch safety...
-
Page 10: Maintenance
4. DMX CONTROL (2CH-P ) Channel Function Ignition ON/OFF: (0~110) Ignition OFF, (111~255) Ignition ON Mode setup: (0~49) Pressure Relief Mode (Emergency Stop), (50~200) Compression Mode, (201~255) Pressure Relief Mode (Emergency Stop) 5. DMX CONTROL (6CH ) Channel Function --none-- --none-- Ignition ON/OFF: (0~253) Ignition OFF, (254~255) Ignition ON Firing Duration setup: 0 and 255 is permanent fire (8s is limit duration time);... -
Page 11: Warranty Instructions
3.Damage caused by external reasons (lightning strike, power supply etc) 4.Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. ★Invoice and warranty card are necessary when applying for maintenance service from SHOWVEN. Warranty Card Product Name: Serial No.
