SaMASZ KDF 390 Operator's Manual

Front disc mower - 3,9m
Hide thumbs Also See for KDF 390:
Table of Contents

Advertisement

Quick Links

Download this manual

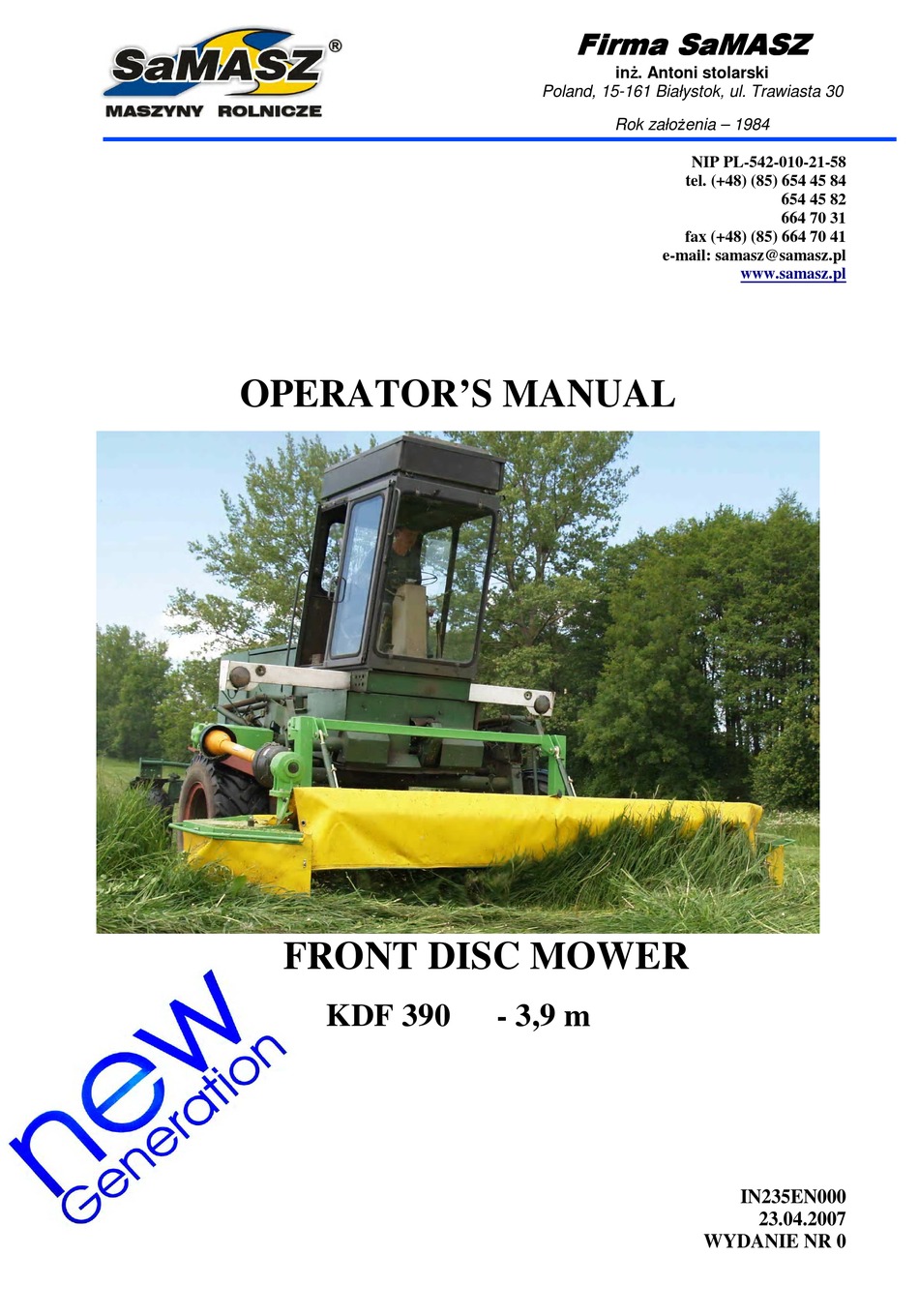

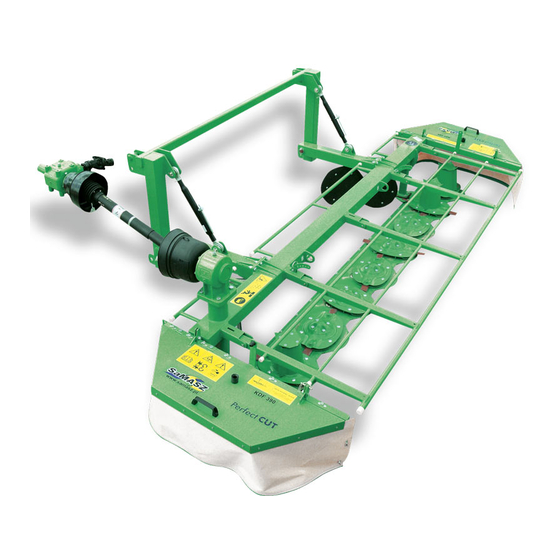

OPERATOR'S MANUAL
FRONT DISC MOWER
KDF 390
Firma SaMASZ
Firma SaMASZ
Firma SaMASZ
Firma SaMASZ
inŜ. Antoni stolarski
Poland, 15-161 Białystok, ul. Trawiasta 30
Rok załoŜenia – 1984
e-mail: samasz@samasz.pl
- 3,9 m
NIP PL-542-010-21-58
tel. (+48) (85) 654 45 84
654 45 82
664 70 31
fax (+48) (85) 664 70 41
www.samasz.pl
IN235EN000
23.04.2007
WYDANIE NR 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDF 390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SaMASZ KDF 390

Summary of Contents for SaMASZ KDF 390

  • Page 1 Rok załoŜenia – 1984 NIP PL-542-010-21-58 tel. (+48) (85) 654 45 84 654 45 82 664 70 31 fax (+48) (85) 664 70 41 e-mail: samasz@samasz.pl www.samasz.pl OPERATOR’S MANUAL FRONT DISC MOWER KDF 390 - 3,9 m IN235EN000 23.04.2007 WYDANIE NR 0...
  • Page 2 ZALECANE POCHYLENIE KOSIARKI W POZYCJI ROBOCZEJ DOPUSZCZA SIĘ PRACĘ W POZYCJI POZIOMEJ POCHYLENIE ODWROTNE POWODUJE TRWAŁE USZKODZENIE LISTWY DYSKOWEJ Recommended inclination of cutterbar towards the ground is 5°. It is allowed to work in horizontal position. Different position may damage the cutterbar. DANGER TURNING THE DRIVE ON, IF THE MOWER IS NOT...

  • Page 3: Table Of Contents

    Front disc mower Operator’s manual KDF 390 Contents page INTRODUCTION ........................3 TECHNICAL DATA......................3 2.1. Specifications...........................3 2.2. Design and working principle ....................3 2.3. Proper use..........................5 2.4. Standard equipment and spare parts ..................5 SAFETY ADVICE........................7 3.1. Safety rules and regulations ......................7 3.2.

  • Page 4: Introduction

    Front disc mower Operator’s manual KDF 390 INTRODUCTION Operator’s manual is attached to every machine in order that the operator can familiarize himself with design, working principles, service and adjustment of the mower. The user of the mower should be familiar with common safety rules and procedures.
  • Page 5 Front disc mower Operator’s manual KDF 390 Fig. 2a. Parts of SaMASZ front disc mower KDF 390. Fig. 2b. Parts of SaMASZ front disc mower KDF 390. 6 – PTO shaft 1 – Suspension frame 2 – Main frame 7 – Swath discs 8 –...

  • Page 6: Proper Use

    KDF 390 2.3. Proper use SaMASZ front disc mower is designed for mowing standing grass on meadows and in stone free fields. It is a machine for hay and green fodder production. The mower is adjusted to work with FORTSCHRITT E 301; E 302; E303.
  • Page 7 E-kits need lubrication every 50 hours. See decal on guard if applicable. PTO shafts of other brands with equivalent parameters could be used afer SaMASZ permission. CAUTION: Optional extra equipment should be ordered separately.

  • Page 8: Safety Advice

    Front disc mower Operator’s manual KDF 390 SAFETY ADVICE 3.1 Safety rules and regulations Operation without safety guards as well as with the damaged or raised guards is not allowed (danger of the stones, etc. being thrown out). Start mowing only when the tractor’s PTO reaches its normal 1000 rpm.

  • Page 9: Safety Decals

    Front disc mower Operator’s manual KDF 390 3.2. Safety decals CAUTION: a) all warning decals should be clean and legible, b) lost or damaged decals must be replaced, c) please order new decals from your dealer or supplier. CAUTION – read the CAUTION –...

  • Page 10: Transport And Operation

    Front disc mower Operator’s manual KDF 390 WORKING WITHOUT SAFETY GUARDS IS FORBIDDEN DANGER OF THE STONES, ETC. BEING THROWN OUT Caution max = 1050 /min rotor min = 900 /min TRANSPORT AND OPERATION 4.1. Attaching the mower to self-propelled mower FORTSCHRITT See also separate mounting instructions Fig 4.
  • Page 11 Intersecting axis gear (1) is mounted on the special bracket (3) welded to self-propelled machine over the right wheel. Mounting of the bracket may be done by SaMASZ crew or you can do it by yourelf according to the manual provided by the manufacturer.

  • Page 12: Operation

    Front disc mower Operator’s manual KDF 390 CAUTION Use the machines with PTO shafts designed to drive them. Before the work begins, check the safety guards (in tractor, mower and PTO shaft), if they are placed correctly and are not damaged.

  • Page 13: Mounting And Adjustments

    Front disc mower Operator’s manual KDF 390 MOUNTING AND ADJUSTMENTS 5.1. Mounting and timing of the knives The knives should be mounted as shown in Fig. 7, 8 i 9, according to the rule, that the cutting edges should be directed towards ground, so that a knife will lift the grass after cutting.

  • Page 14: Maintenance And Service

    Front disc mower Operator’s manual KDF 390 Fig.9. Disc turns KDF 390. CAUTION: Check disc turns, before you change the knife (Fig. 9) CAUTION: Different mounting of the knives will block the mower. When mounting pay particular attention to loose rotation of the knife on the knife holder pin.

  • Page 15: Daily Maintenance

    Front disc mower Operator’s manual KDF 390 Fig. 10. Permissible wear of knife holder pin. 5.3.2.Daily maintenance Everyday after work please carry out the following maintenance: remove grass and mud, check all visible units and parts and their connections; tighten all loose bolts and nuts and...

  • Page 16: Intersecting Axis Gears

    Front disc mower Operator’s manual KDF 390 Fig. 11. Cutterbar oil inlet (A) and outlet (B). Tab.3. Oil capacities. Model Oil capacity [L] Oil type Lubrication frequency Once every 3 seasons KDF 390 80W90 (if working intensively) 6.2. Intersecting axis gear.

  • Page 17: Defects And Their Repairs

    Front disc mower Operator’s manual KDF 390 Tab.4. Oil capacities. Model Oil capacity [l] Oil type Lubrication frequency Transol 680 1000 Once every 3 seasons (acc. to ISO 3448 oil viscosity KDF 390 about 1 (if working intensively) grade : VG-680 – 1000 ) CAUTION: The above instructions should be strictly followed.

  • Page 18: Disassembly And Withdrawal From Use

    Front disc mower Operator’s manual KDF 390 DISASSEMBLY AND WITHDRAWAL FROM USE 8.1. Disassembly Before starting any repair or service the mower should be cleaned and any grass or dirt removed. Carefully check nuts and bolts for correct tension and the pins for wear. Replace as necessary.

  • Page 19: Warranty Terms

    2. The warranty period is for two years from the date of sale to the purchaser, stated above. 3. Any repair which is subject to warranty should be carried out by an authorised SaMASZ dealer. Upon completion of the repair the dealer must submit a warranty claim within 21 days.

  • Page 20: Warranty Repairs Record

    Front disc mower Operator’s manual KDF 390 CAUTION: When the warranty expires, repairs can be done for a payment by the entitled repair shops pointed by the dealer. The dealer is obliged to indicate them. CAUTION: The manufacturer reserves the right to alter technical design and specification without prior notice and without liability.
