SaMASZ KDD 861 Operator's Manual

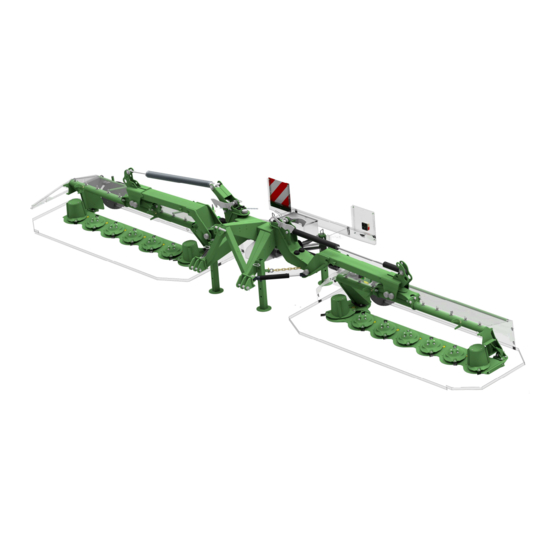

Double-sided mower with central suspension
Hide thumbs Also See for KDD 861:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
DOUBLE-SIDED MOWER WITH
Standard
KDD 861 (H)
KDD 941 (H)
KDD 861 S (H)
KDD 941 S (H)
KDD 860 W (H)
KDD 940 W (H)
KDD 861 S T (H)
KDD 941 S T (H)
KDD 860 W T (H) - 8,6 m
KDD 940 W T (H) - 9,4 m
CENTRAL SUSPENSION
- 8,6 m
Wide swath
- 9,4 m
- 8,6 m
Wide
- 9,4 m
conditioner
- 8,6 m
Swath
- 9,4 m
rollers
- 8,6 m
Wide
conditioner
- 9,4 m
Swath
rollers
Serial number:
The original instruction
SaMASZ Sp. z o.o.
Poland, 15-161 Białystok, ul. Trawiasta 15
On special order
KDD 860 (H)
KDD 940 (H)
KDD 860 S (H)
KDD 940 S (H)
KDD 860 S T (H)
KDD 940 S T (H)
Rok założenia – 1984
NIP 966-159-29-76
tel. (+48) (85) 664-70-31
fax (+48) (85) 664-70-41
e-mail: samasz@samasz.pl
www.samasz.pl
- 8,6 m
Narrow
- 9,4 m
swath
- 8,6 m
Narrow
- 9,4 m
conditioner
- 8,6 m
Narrow
conditioner
- 9,4 m
IN272EN006
2014.02.21
EDITION NO 6
