Chapter 3: Terminal Menu Operation and Structure
Configuration/IP
The IP menu is used to set up the IP parameters for the Express XL/XLT. Any
general IP-related configuration item is under this menu. Figure 3-4 shows the
IP menu.
IP/IP Address
Write security: 2; Read security: 5
The IP address assigned to the Express XL/XLT's Ethernet port is set here.
This address must be unique within the network. Factory default is 10.0.0.1.
IP/Subnet Mask
Write security: 2; Read security: 5
The IP network mask to be applied to the Express XL/XLT's Ethernet port is
set here. Factory default is 255.255.255.0.
40
Express XL/XLT User Manual

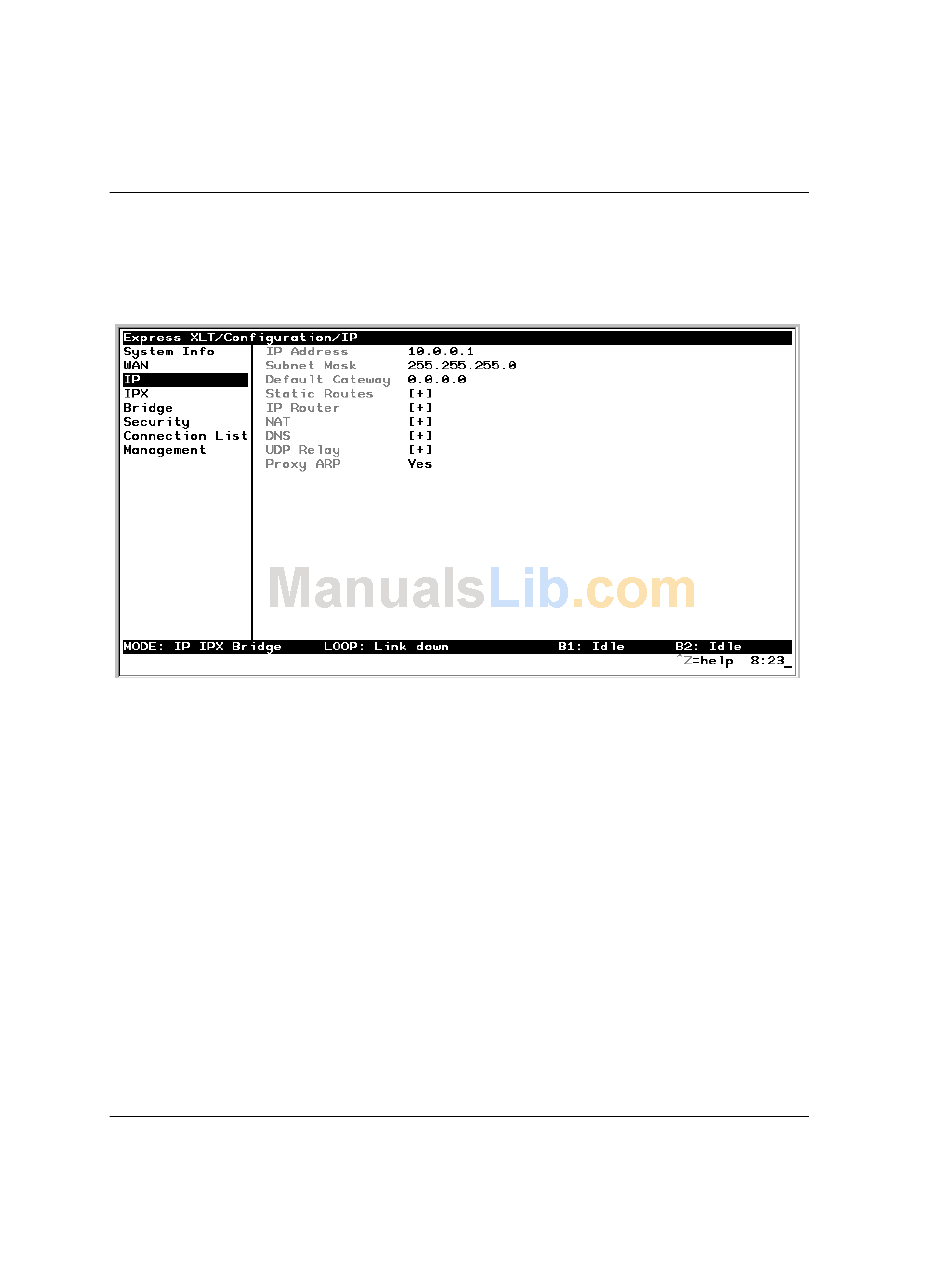

Figure 3-4
Configuration/IP Screen
61200070L1-1
