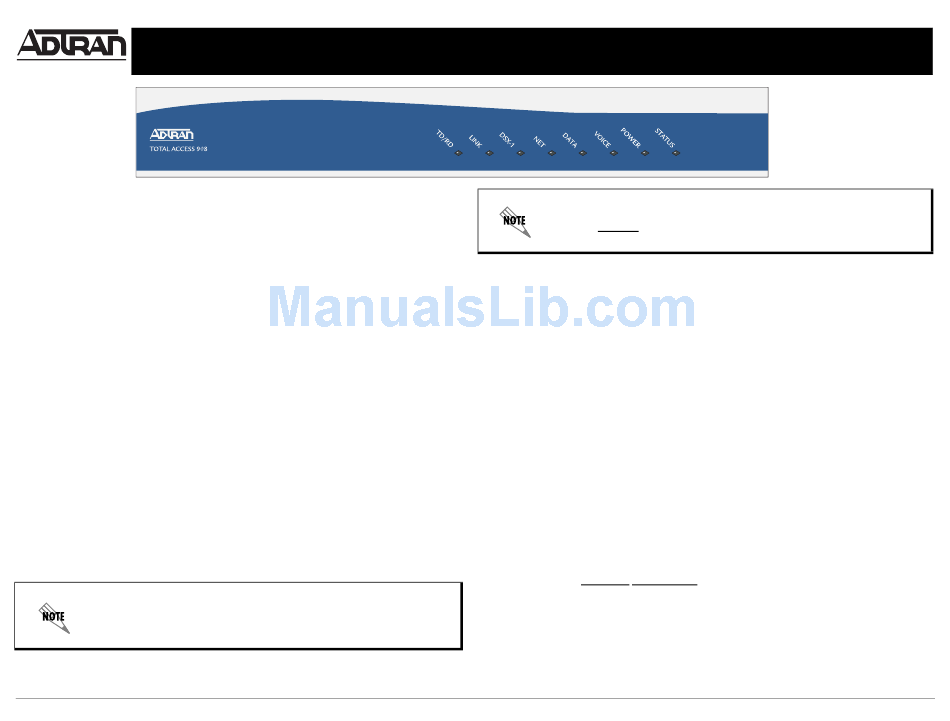

Total Access 904/908
Quick Start Guide
G S
ETTING TARTED
Two configuration methods are available for your Total Access 900 Series:
• Web-based GUI
• AOS Command Line interface (CLI)
The GUI lets you configure the main unit setting and provides online guidance and explanations for
each setting. However, using the AOS CLI may be necessary for more advanced configurations.
A GUI
CCESS THE
The Web-based GUI is an online configuration tool that allows you to easily configure and view the
main settings, as well as the status of your system.
1. Connect the Total Access 900 Series unit to your PC using the ETH 0/1 port on the rear panel
of the unit. The Total Access 900 Series units support auto MDI-MDIX crossover; therefore, a
straight-through cable can be used for this connection.
2. Configure your PC to obtain an IP address automatically (DHCP), or change the IP address of
your PC to 10.10.10.2. The default address for the Total Access 900 Series unit is 10.10.10.1.
3. Enter the unit's IP address in your browser address field. The default IP address is 10.10.10.1.
4. You will then be prompted for the username and password. The default settings are admin and
password.
5. The initial GUI screen appears.
U C
SING THE ONFIGURATION
Once you have logged in, click on Config Wizard. Use the buttons at the bottom of the screen or
the menu at the top left to navigate the Config Wizard.
Use the system's Config Wizard utility as an online configuration tool to set up basic (as well as
advanced) voice applications. The Config Wizard can easily walk you through system setup, voice
and data settings, and trunk and station configuration through a series of easy-to-answer questions.
At the end of the wizard, you can review your choices and accept them or make additional changes.
It is best to use the Config Wizard for new installations only because some
existing settings may be lost or reset when using this wizard.
Quick Start Guide, 61210908L1-13C, November 2006
W
IZARD
For more detailed documentation, visit us online at www.adtran.com.
The configuration parameters used in the examples outlined in this
document are for instructional purposes only. Please replace all underlined
entries ( ) with your specific parameters to configure your
example
application.
A CLI
CCESS THE
The following items are needed to connect to the Total Access 900 Series unit:
• VT100 terminal or PC (with VT100 terminal emulation software)
• Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate
interface for your terminal (or PC) on the other
1. Connect the DB-9 (male) connector of your serial cable to the CRAFT port on the rear panel of
the unit.
2. Connect the loose end of the serial cable to the VT100 terminal or PC (with terminal emulation
software).
3. Open a VT100 terminal session to the Total Access 900 Series unit using the following settings:
9600 baud, 8 data bits, no parity bits, 1 stop bit, and no flow control.
4. Press <Enter> to activate the ADTRAN Command Line Interface.
5. Enter enable at the > prompt, and enter the password when prompted. The default password is
password.
C U ' IP A
ONFIGURE THE NIT S
Follow these steps if you are not able to change the PC's IP address in order to access the Web GUI.
Change the Total Access 900's IP address to correspond with your network setup. If you are not sure
what IP address to assign, please contact your network administrator.
1. At the # prompt, enter config terminal.
2. At the (config)# prompt, enter interface eth 0/1 to access the Ethernet interface configuration
parameters.
3. Enter ip address 10.10.10.1 255.255.255.0 to assign an IP address to the Ethernet port using a
24-bit subnet mask.
4. Enter no shutdown to activate the interface to pass data.
5. Enter exit to exit the Ethernet interface commands and return to Global Configuration mode.
6. Enter exit to return to the Enable command security mode.
7. At the # prompt, enter copy running-config startup-config to save the current configuration to
memory.
8. Enter exit to close the configuration session.
P/N 1210904L1, 1210908L1
DDRESS
Copyright © 2006 ADTRAN, All Rights Reserved
