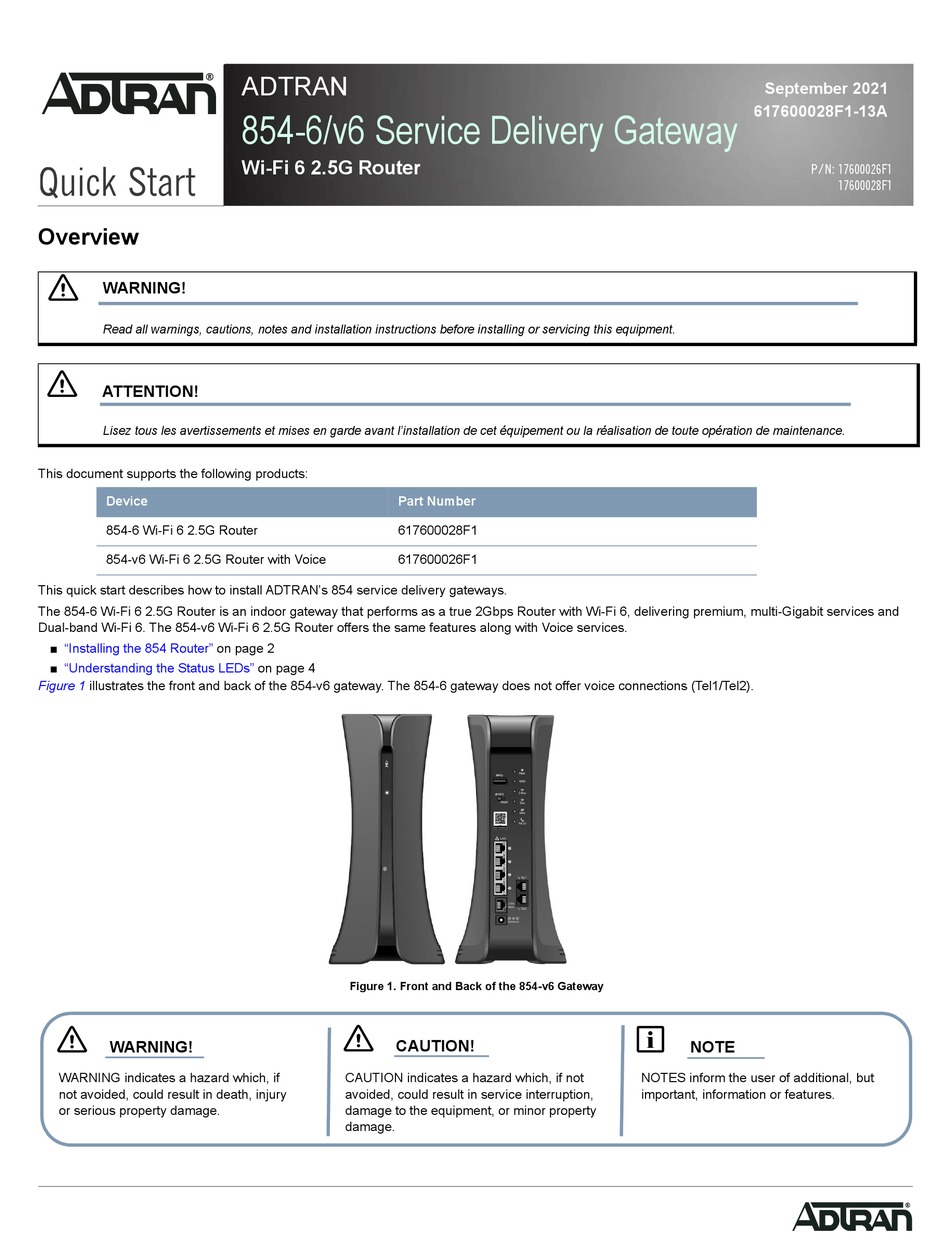

Quick Start
Overview
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
f
ATTENTION!
Lisez tous les avertissements et mises en garde avant l'installation de cet équipement ou la réalisation de toute opération de maintenance.
This document supports the following products:
Device
854-6 Wi-Fi 6 2.5G Router
854-v6 Wi-Fi 6 2.5G Router with Voice
This quick start describes how to install ADTRAN's 854 service delivery gateways.
The 854-6 Wi-Fi 6 2.5G Router is an indoor gateway that performs as a true 2Gbps Router with Wi-Fi 6, delivering premium, multi-Gigabit services and
Dual-band Wi-Fi 6. The 854-v6 Wi-Fi 6 2.5G Router offers the same features along with Voice services.
■
"Installing the 854 Router"
on page 2
■
"Understanding the Status LEDs"
illustrates the front and back of the 854-v6 gateway. The 854-6 gateway does not offer voice connections (Tel1/Tel2).
Figure 1
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
ADTRAN
854-6/v6 Service Delivery Gateway
Wi-Fi 6 2.5G Router
Part Number
617600028F1
617600026F1
on page 4
Figure 1. Front and Back of the 854-v6 Gateway
f
CAUTION!
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
September 2021
617600028F1-13A
P/N: 17600026F1
g
NOTE
NOTES inform the user of additional, but
important, information or features.
17600028F1
Advertisement
Table of Contents
Related Manuals for ADTRAN 617600028F1
Summary of Contents for ADTRAN 617600028F1
- Page 1 854-v6 Wi-Fi 6 2.5G Router with Voice 617600026F1 This quick start describes how to install ADTRAN’s 854 service delivery gateways. The 854-6 Wi-Fi 6 2.5G Router is an indoor gateway that performs as a true 2Gbps Router with Wi-Fi 6, delivering premium, multi-Gigabit services and Dual-band Wi-Fi 6.
-
Page 2: Mounting Options
These options are described below. Desktop Installation This device can be placed on a desk or table. The following table shows the recommended minimum distance (in feet and meters) between ADTRAN equipment and household appliances to reduce interference. Household Appliance... - Page 3 Household Appliance Recommended Minimum Distance (in feet and meters) Cordless phone – digital 30 feet / 9 meters Bluetooth devices 20 feet / 6 meters ZigBee 20 feet / 6 meters WARNING! Ensure that the device does not come in contact with water or other liquids. CAUTION! Ensure that the device is not located in direct sunlight or next to any thermal obstructions.
-
Page 4: Understanding The Status Leds
3. For a Voice connection on the 854-v6 only, insert an RJ-11 cable into one of the telephone ports (labeled Tel 1 or Tel 2) until there is an audible “click”. 4. Before connecting to the service provider interface, clean the optical Interfaces of the SC/APC connectors. 5. - Page 5 2.4GHz / 5GHz Status LEDs The 2.4GHz and 5GHz status LEDs indicate the state of the wireless connections on the gateway. Color State Description Wi-Fi radio is UP. Green 2.4GHz / 5GHz Flashing Wi-Fi radio is transferring data. None Wi-Fi connection is DOWN. WPS Status LED The WPS status LED indicates the status of WPS (Wi-Fi protected setup).
-
Page 6: Product Specifications
Refer to the Safety and Regulator Notice for this product (P/N: 617600028F1-17) for detailed safety and regulatory information. Consultez l'avis sur la sécurité et la conformité à la réglementation pour ce produit (P/N: 617600028F1-17) pour obtenir des renseignements détaillés sur la sécurité... - Page 7 This product meets the following compliance requirements: ■ This equipment contains no parts that can be serviced by the user. ■ This product meets EU RoHS Directive. Refer to www.adtran.com/environmental for further information on RoHS/WEEE. ■ This product is UL Listed to the applicable UL/CSA Standards.
-
Page 8: Regulatory Compliance Information
FCC Declaration of Conformity We, ADTRAN, Inc., 901 Explorer Blvd, Huntsville, AL 35806, declare under our sole responsibility that these device comply with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions: ■... - Page 9 Schnellstart- oder Auftragshilfe für installation instructions. article 617600028F1-13) pour des consignes dieses Produkt (P/N:617600028F1-13). d'installation détaillées. ADTRAN CUSTOMER CARE: From within the U.S. 1.800.726.8663 From outside the U.S. +1 256.963.8716 PRICING AND AVAILABILITY 1.800.827.0807 Copyright © 2021 ADTRAN, Inc. All Rights Reserved. *617600028F1-17a*...
