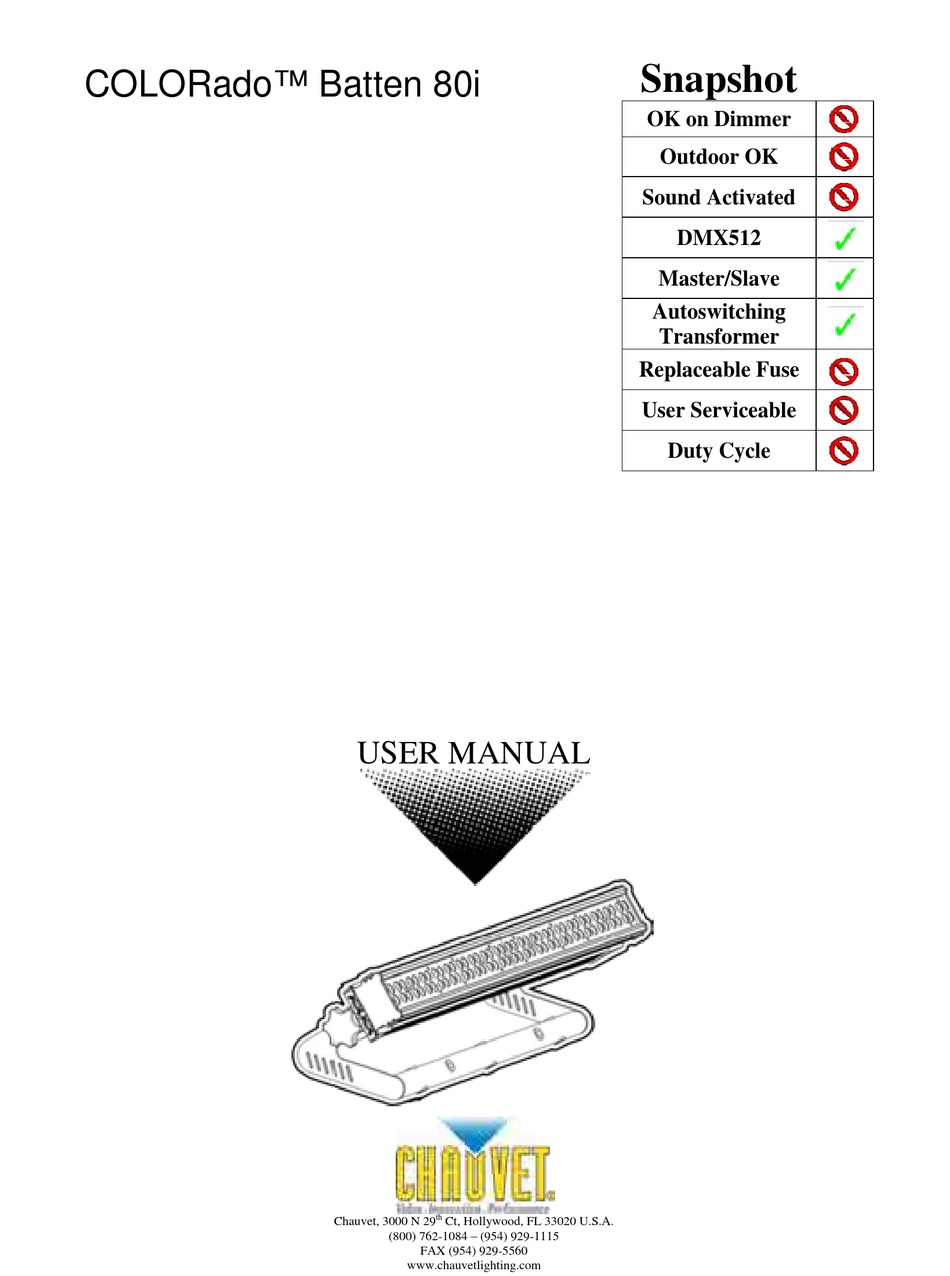

  • Page 1 CO OLORa do™ B Batten 8 USER R MANU Chauvet, 3000 N 29 Ct, Hollywood, FL L 33020 U.S.A. (800) 762 -1084 – (954) 929-1 X (954) 929-5560 www. chauvetlighting.com Snapsh OK on Dim mmer Outdoor O Sound Activ vated...

  • Page 2: Table Of Contents

    5. Appendix ... 32 DMX Primer ... 32 General Maintenance ... 33 Returns Procedure ... 33 Claims ... 33 COLORado ™Batten 80i Service Maintenance Guide ... 34 Blow-out Diagram ... 35 Photometric ... 35 PCB Line Drawings ... 37 Technical Specifications ... 39 COLORado™...

  • Page 3: Before You Begin

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. COLORado™ Batten 80i User Manual EGIN 5/19/2008 10:40 AM...

  • Page 4: Safety Instructions

    50,000 hours will be achieved under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place care in providing for lower operational temperatures. This may include climatic-environmental and the reduction of overall projection intensity COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 5: Introduction

    Additional power output: max 4 or 9 units @ 120V • LCD display with password protection • Battery-powered display for setup without power OPTIONS • Optical systems available: 10°, 15° (installed), 30° COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 6: Dmx Channel Summary

    DMX Channel Summary The COLORado™ Batten 80i has a total of 11 DMX channel configurations, referred to as “Personalities” in this manual and in the fixture onboard control board. The 8 personalities are [BLOCK 1, BLOCK 2, BLOCK 3, BLOCK 4, HSV, STAGE 1, STAGE 2, ARC1, ARC 2, PIXEL 1, and PIXEL 2].
  • Page 7 HANNEL 4-60 [PIXEL 2] HANNEL 5-80 [BLOCK] HANNEL [HSV] HANNEL COLORado™ Batten 80i User Manual ESCRIPTION Pixel 1 Red Pixel 1 Green Pixel 1 Blue Repeat Ch.1~Ch.3 (pixel1, pixel 2, pixel 3, etc) ESCRIPTION Pixel 1 Red Pixel 1 Green...

  • Page 8: Product Overview

    Product Overview Bracket Adjustment Power Link Out Power In DMX In 3+5-pin Hanging Bracket/ Floor Stand Control Panel Power In/Out DMX Out 3+5-pin COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 9: Setup

    (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch. This fixture is designed for power linking from one COLORado™ Batten 80i to another COLORado™ Batten 80i fixture. Each fixture ships with Neutrik power input cables (standard Edison male-to-female 6ft A-type Neutrik 3-conductor connector).

  • Page 10: Mounting

    It is recommended to use at least 2 mounting points per fixture. You can order “C” and “O”-clamps from any CHAUVET dealer or distributor (CLP-15, CLP-06 recommended).

  • Page 11: Lens Assembly Installation/Replacement

    Lens Assembly Installation/Replacement The COLORado™Batten 80i comes with 15° lens assembly pre-installed from the factory. However, there are 3 other optional lens kits [CL18X10, CL18X15 (installed), CL18X30].available as accessories which will alter the beam angle. Please follow the below instructions for proper replacement/installation.

  • Page 12: Fixture Linking

    Maximum recommended number of fixtures on a serial data link: 32 fixtures Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

  • Page 13: 3-Pin To 5-Pin Conversion Chart

    -PIN TO 5-PIN CONVERSION CHART If you use a controller with a 5 pin DM Note! adapter. CHAUVET Model No: DMX5M, or DMX5F. The chart below details a proper cable conversion: IN TO ONVERSION Ground/Shield Data ( - ) signal...

  • Page 14: Operating Instructions

    NSTRUCTIONS Control Options The COLORado™ Batten 80i is addressable in the DMX range of 001 to 512. In its simplest control form, this allows for the control of 6 fixtures in the full pixel personality with 80 channels each; however, a secondary “ID” address system exists for use in a limited DMX universe and architectural environments.

  • Page 15: Dmx-512 Addressing With Id Address

    Navigates upwards through the menu list and increases the numeric value when in a function ENTER Enables the currently displayed menu or sets the currently selected value in to the selected function COLORado™ Batten 80i User Manual {ID ON/OFF} [ON] {ID address} [01 ~ 66]...

  • Page 16: Manual Power On/Off

    Manual Power ON/OFF The COLORado™ Batten 80i can be turned on and off using the control panel. This can even be done when there is no power connected to the fixture for setting the DMX address and any other functions that are useful to do before the power in present.

  • Page 17: Menu Map

    4. Edit Static 5. Auto Play Mode 6. Edit Custom 7. Settings 8. Key-Lock 9. White Calib 10. Fan Setting 11. Run Mode COLORado™ Batten 80i User Manual UNCTION ELECTION 0-~512 Block 1 Block 2 Block 3 Block 4 Stage 1...

  • Page 18: Dmx512 Channel Values

    DMX512 Channel Values The COLORado™ Batten 80i has 13 DMX512 channel configurations [BLOCK1, BLOCK 2, BLOCK 3, BLOCK 4, HSV, ARC1+D, ARC2+D, STAGE 1, STAGE 2, ARC1, ARC2, PIXEL 1, and PIXEL 2]. STAGE 1 HANNEL ALUE COLORado™ Batten 80i User Manual...
  • Page 19 ID 18 ID 19 ID 20 ID 21 ID 22 COLORado™ Batten 80i User Manual Auto + Custom + Fan control No Function Fans Off (Hold for 3 sec.) Fans Low (Hold for 3 sec.) Fans Normal (Hold for 3 sec.) Fans High (Hold for 3 sec.)
  • Page 20 Auto 8 Auto 9 Auto 10 Custom 1 Custom 2 Custom 3 Custom 4 Custom 5 Custom 6 Custom 7 Custom 8 Custom 9 Custom 10 COLORado™ Batten 80i User Manual UNCTION 100% 100% 100% 100% 100% 20Hz 5/19/2008 10:40 AM...
  • Page 21 ID 14 ID 15 ID 16 ID 17 ID 18 ID 19 ID 20 ID 21 ID 22 COLORado™ Batten 80i User Manual ID 23 ID 46 ID 24 ID 47 ID 25 ID 48 ID 26 ID 49 ID 27...
  • Page 22 COLORado™ Batten 80i User Manual Module 3 Cyan Module 4 Cyan Module 1,2 Cyan Module 1,3 Cyan Module 1,4 Cyan Module 2,3 Cyan Module 2,4 Cyan Module 3,4 Cyan Module 1,2,3 Cyan Module 2,3,4 Cyan Module 1,3,4 Cyan Module 1,2,4 Cyan...
  • Page 23 Pixel 2 Red Pixel 2 Green Pixel 2 Blue Pixel 3 Red Pixel 3 Green Pixel 3 Blue Pixel 20 Red Pixel 20 Green Pixel 20 Blue COLORado™ Batten 80i User Manual 100% 100% 100% 100% 100% 100% 100% 100%...
  • Page 24 Pixel 3 Green Pixel 3 Blue Pixel 3 White Pixel 20 Red Pixel 20 Green Pixel 20 Blue Pixel 20 White HANNEL ALUE UNCTION Saturation Value COLORado™ Batten 80i User Manual 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%...
  • Page 25 Block 2 Red Block 2 Green Block 2 Blue Block 3 Red Block 3 Green Block 3 Blue Block 4 Red Block 4 Green Block 4 blue COLORado™ Batten 80i User Manual 100% 100% 100% 100% 100% 100% 100% 100%...
  • Page 26 Block 2 Green Block 2 Blue Block 2 White Block 3 Red Block 3 Green Block 3 Blue Block 3 White Block 4 Red Block 4 Green Block 4 Blue Block 4 White COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...
  • Page 27 Block 1 Green Block 1 Blue Block 2 Red Block 2 Green Block 2 Blue Block 3 Red Block 3 Green Block 3 Blue Block 10 Red Block 10 Green Block 10 Blue COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...
  • Page 28 Block 2 Green Block 2 Blue Block 2 White Block 3 Red Block 3 Green Block 3 Blue Block 3 White Block 10 Red Block 10 Green Block 10 Blue Block 10 White COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 29: Important Notes About Stage 1

    • Channel 1 is sued to control the intensity of the COLOR MACRO. AUTO • Channel 8 selects the preset AUTO and CUSTOM programs (1-10). • Channel 8 has priority over channels 2, 3, 4, & 5. COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 30: Important Notes About Stage 2

    • The fixture is divided into 10 separate sections which include 2 red, 2 blue, and 2 green LEDs. BLOCK 4 • The fixture is divided into 4 separate sections which include 2 red, 2 blue, 2 green, and 2 white LEDs. COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 31: Technical Support

    Fax: (954) 929-5560 - (Attention: Service) Website: http://www.chauvetlighting.com Contact Us W o r l d W i d e General Information World Wide Web COLORado™ Batten 80i User Manual Chauvet Lighting 3000 North 29 Court Hollywood, FL 33020 voice: 954.929.1115 fax: 954.929.5560...

  • Page 32: Appendix

    Connect fixtures using shielded two conductor twisted pair cable with three pin XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) COLORado™...

  • Page 33: General Maintenance

    Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RMA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.

  • Page 34: Colorado ™Batten 80I Service Maintenance Guide

    Note: Keep DMX cables separated from power cables or black lights Make sure connector is firmly connected to device The COLORado™ Batten 80i fixture must be in the correct mode in order to properly respond to the COLOR-CON controller. The correct mode is “SLAVE”...

  • Page 35: Blow-Out Diagram

    2  LED Lens‐complete set  3  LED Metal‐Core PCB ‐ complete  4  Fan 5volt, 40mm diameter  5  LED Driver PCB  6  Electronic Transformer  7  Bracket Knob  8  Battery  9  Display/Master PCB  10  DMX PCB  11  Fan 5volt, 60mm diameter  12  Temperature sensor  13  Display/Master IC chip (unmarked)  COLORado™ Batten 80i User Manual Part Number  P111‐80ICLR  T.B.A. By Barry  P222‐80ILED(A+B)  P130‐5V40MM  P172‐80ILEDD  P140‐80IELTR  P111‐80IKNOB  P320‐80IBTRY  P170‐80IPCB  P170‐80IDMX ...
  • Page 36 COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 37: Pcb Line Drawings

    PCB Line Drawings LED Driver PCB Display/Master PCB Part#:P172-80ILEDD Part#:P170-80IPCB COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...
  • Page 38 COLORado™ Batten 80i User Manual 5/19/2008 10:40 AM...

  • Page 39: Technical Specifications

    Protocols... DMX-512 USITT DMX Channels ... User Configurable: 3, 4, 9, 12, 16, 60, or 80 STANDARD ORDERING INFORMATION COLORado ™ Batten 80i ... COLORADOBATTEN80I 10° Optical Lens kit (20pcs) 15° Optical Lens kit (20pcs) 30° Optical Lens kit (20pcs)
