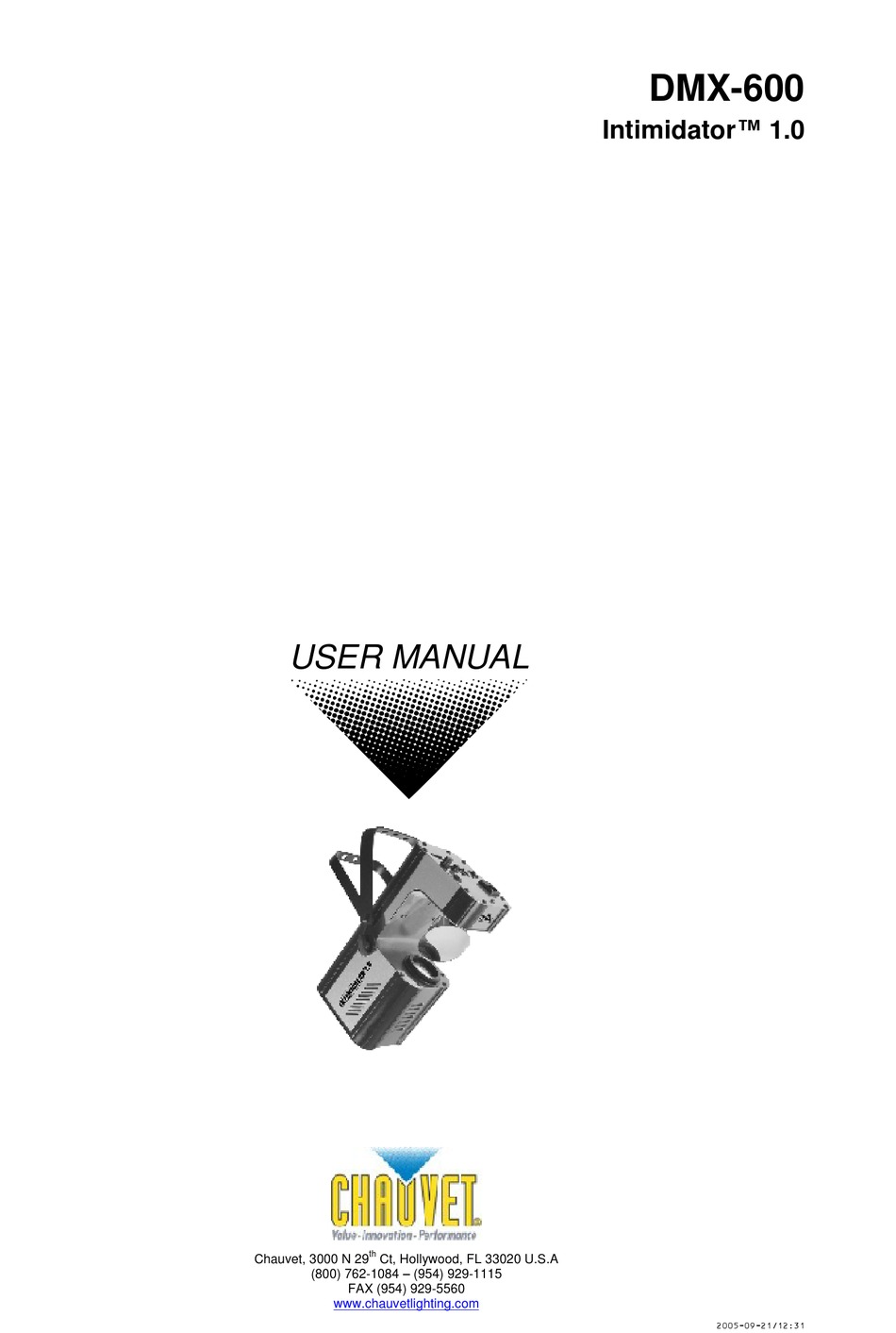

- Page 1 DMX-600 Intimidator™ 1.0 USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-09-21/12:31...
-
Page 2: Table Of Contents
CH-X Optional Blackout Controller... 9 APPENDIX... 10 DMX P ... 10 RIMER Fixture Linking... 10 DMX C ... 11 HANNEL ALUES ... 12 AINTENANCE ... 12 ETURNS ROCEDURE ... 12 LAIMS ... 13 ENERAL ROUBLESHOOTING ... 14 ECHNICAL PECIFICATIONS DMX-600 User Manual 2005-09-21/12:31... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x DMX-600 Intimidator™ 1.0 Power cord with plug ELC 250w lamp Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Introduction
Linkable via Master/Slave Micro-stepping motors Thermal switch Fan cooled Options Wired remote controllers: CH-X blackout controller Programmable: Any universal DMX-512 controller DMX Channel Summary HANNEL UNCTION Color/Gobo Strobe Tilt DMX-600 User Manual 2005-09-21/12:31... -
Page 5: Product Overview

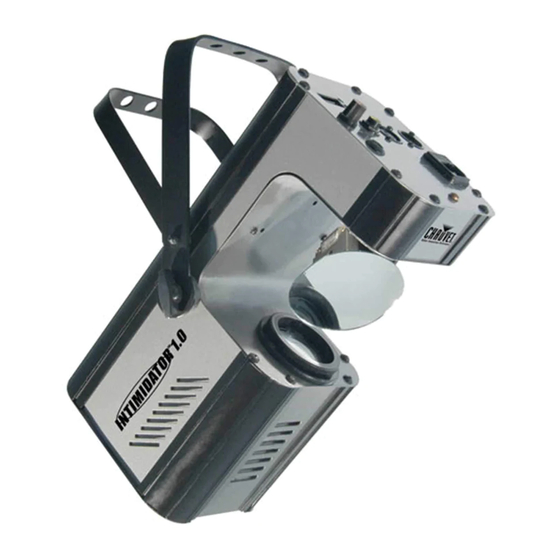

Product Overview Hanging Yoke, double bracketed for floor positioning Intimidator™ 1.0 Double bracketed yoke used for floor positions. DMX-600 User Manual Lamp access cover Mirror Scanner Power & Fuse compartment DMX connectors Dipswitches Remote Controller Input Microphone Sound Sensitivity Knob... -
Page 6: Setup
0% to 100% switch. Before applying power to a fixture, check that the source voltage matches the fixture’s requirement. All fixtures must be connected to circuits with a suitable Earth Ground. DMX-600 User Manual Lamp Installation Remove screw Lamp exposed... -
Page 7: Mounting
Remove the damaged fuse from its holder and replace with exact same type fuse. Insert the fuse holder back in its place and reconnect power. DMX-600 User Manual always replace with the same type fuse. The fuse is located inside this compartment. -
Page 8: Operating Instructions
This DMX mode enables the use of a universal DMX controller device. Each fixture requires a "start address" from 1 to 511. A fixture requiring one or more channels for control begins to read the data DMX-600 User Manual Daisy Chain... -
Page 9: Ch-X Optional Blackout Controller
Only one controller is necessary on the master unit to blackout all other units following. DMX-600 User Manual DDRESS 233 – (128) = 105, Turn ON Dip # 8 105 –... -
Page 10: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 11: Dmx Channel Values
DMX Channel Values Channel DMX-600 User Manual Value Function Gobo/Color 000 009 Closed 010 019 White (Open) 020 029 Gobo-Color 1 030 039 Gobo-Color 2 040 049 Gobo-Color 3 050 059 Gobo-Color 4 060 069 Gobo-Color 5 070 ... -
Page 12: Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 13: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when rotating... -
Page 14: Technical Specifications
Data input ... locking 3-pin XLR male socket Data output ... locking 3-pin XLR female socket Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols...DMX-512 USITT DMX Channels ...4 ORDERING INFORMATION Intimidator™ 1.0...DMX-600 CH-X Blackout Controller ... CH-X DMX-600 User Manual Appendix 2005-09-21/12:31...
