Summary of Contents for Chauvet Intimidator

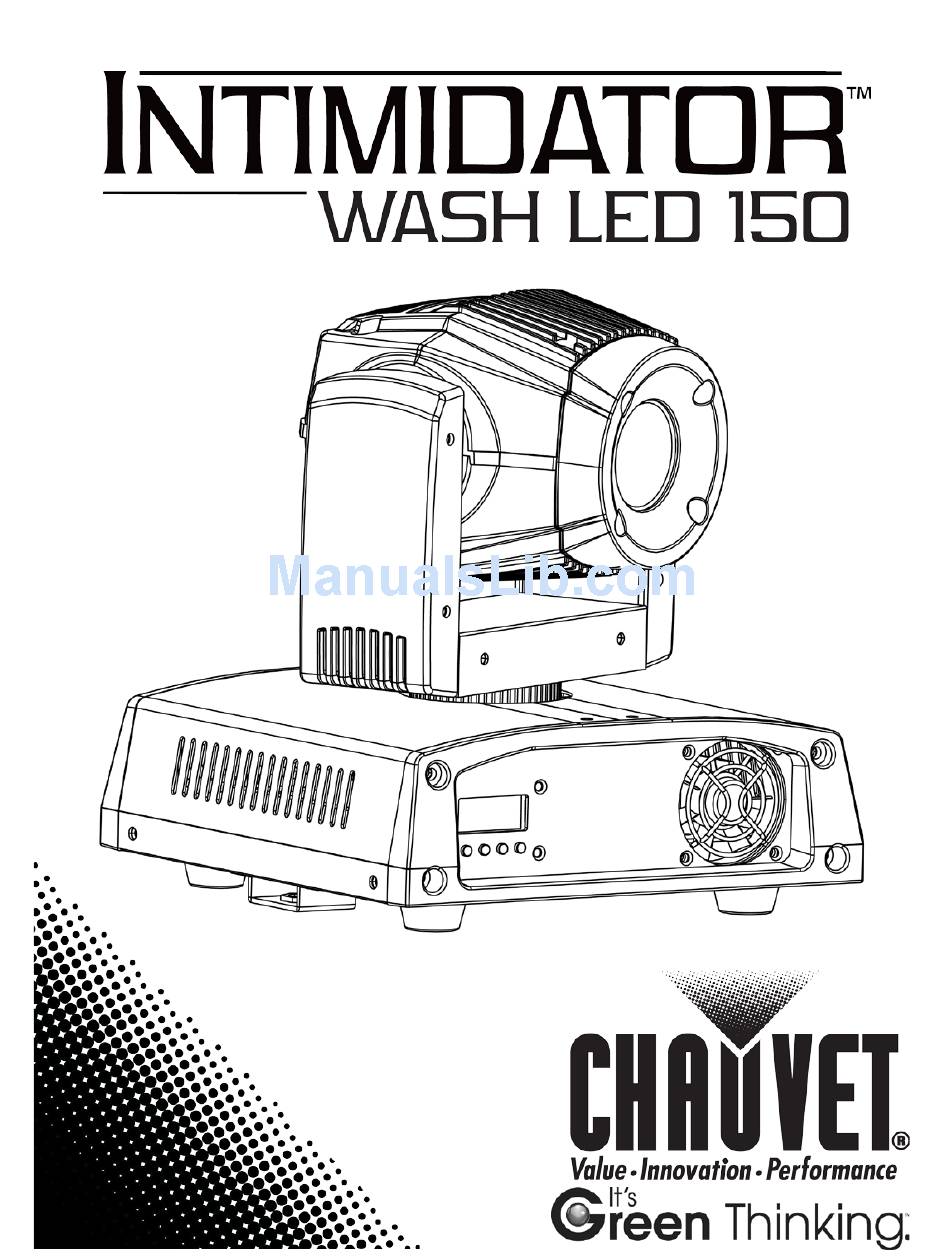

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Configuration (DMX) ........................11 Configuration (Standalone Modes) ..................... 11 DMX Channel Assignments and Values..................13 5. Maintenance ........................15 General Maintenance ......................... 15 6. Technical Specifications ....................16 Page 2 of 17 Intimidator™ Wash LED 150 User Manual Rev. 5...

  • Page 3: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Convention Meaning Text 1–512...

  • Page 4: Safety Notes

    This product is not intended for permanent installation. · Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. Page 4 of 17 Intimidator™ Wash LED 150 User Manual Rev. 5...

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Back Panel DMX out Power in DMX in Fuseholder Power out Front Panel Menu Display Intimidator™ Wash LED 150 User Manual Rev. 5 Page 5 of 17...

  • Page 6: Product Dimensions

    Product Dimensions Page 6 of 17 Intimidator™ Wash LED 150 User Manual Rev. 5...

  • Page 7: Setup

    Product Other fixtures You can power link up to 12 Intimidator™ Wash LED 150 units on 120 VAC or up to 21 Intimidator™ Wash LED 150 units on 230 VAC. The power linking diagram shown above corresponds to the North American version of this product ONLY! If using this product in other markets, you must consult with the local CHAUVET®...

  • Page 8: Mounting

    Mounting Orientation The Intimidator™ Wash LED 150 may be mounted in any position, provided there is adequate room for ventilation around it. Rigging Be sure that the structure onto which you are mounting this product can support its weight. Please see the “Technical Specifications” section of this manual for weight information.

  • Page 9: Operation

    9 Reset System reset rESt Reset all motors Load Factory Use this to revert all settings for the fixture Load default LoAd Defaults back to the factory-defaults values Intimidator™ Wash LED 150 User Manual Rev. 5 Page 9 of 17...

  • Page 10: Hidden Menu Map

    Accessing the Hidden Menu Map 1) Press and hold <MODE/ESC> for at least 10 seconds. 2) Use <UP> or <DOWN> to input the following access code: 2323. 3) Press <ENTER>. Page 10 of 17 Intimidator™ Wash LED 150 User Manual Rev. 5...

  • Page 11: Configuration (Dmx)

    DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the fixture’s channels. The Intimidator™ Wash LED 150 uses up to 15 DMX channels in the advanced personality, which defines the highest configurable address to 497.
  • Page 12 Master/Slave Mode This mode allows a single Intimidator™ Wash LED 150 unit (the “master”) to control the actions of one or more Intimidator™ Wash LED 150 units (the “slaves”) without the need of a DMX controller. The master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave Mode.

  • Page 13: Dmx Channel Assignments And Values

    184 ó 199 Sound-active movement 4 200 ó 215 Sound-active movement 5 216 ó 231 Sound-active movement 6 232 ó 247 Sound-active movement 7 248 ó 255 Sound-active movement 8 Intimidator™ Wash LED 150 User Manual Rev. 5 Page 13 of 17...
  • Page 14 162 ó 175 Macro 7 176 ó 189 Macro 8 190 ó 203 Macro 9 204 ó 217 Macro 10 218 ó 231 Macro 11 232 ó 255 Moveable macro Page 14 of 17 Intimidator™ Wash LED 150 User Manual Rev. 5...

  • Page 15: Maintenance

    Gently polish the external optics until they are free of haze and lint. Always dry the external optics carefully after cleaning them. Do not spin the cooling fans using compressed air because you could damage them. Intimidator™ Wash LED 150 User Manual Rev. 5 Page 15 of 17...

  • Page 16: Technical Specifications

    104° F (40° C) Fan cooled I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 6, 15 Ordering Item Name Item Code Item No. Intimidator™ Wash LED 150 08010177 INTIMWASHLED150 Page 16 of 17 Intimidator™ Wash LED 150 User Manual Rev. 5...
  • Page 17 You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
