Configuration/Security; Security/Authentication; Figure 3-7. Configuration/Security Screen - ADTRAN Express 4100 User Manual

Configuration/Security

Security/Authentication

61200176L2-1
The Security menu is used to set up the authentication parameters
needed to authenticate PPP connection over the ISDN B-channels. Also,
the filter defines are placed under this menu. Figure 3-7 shows the Secu-
rity menu.

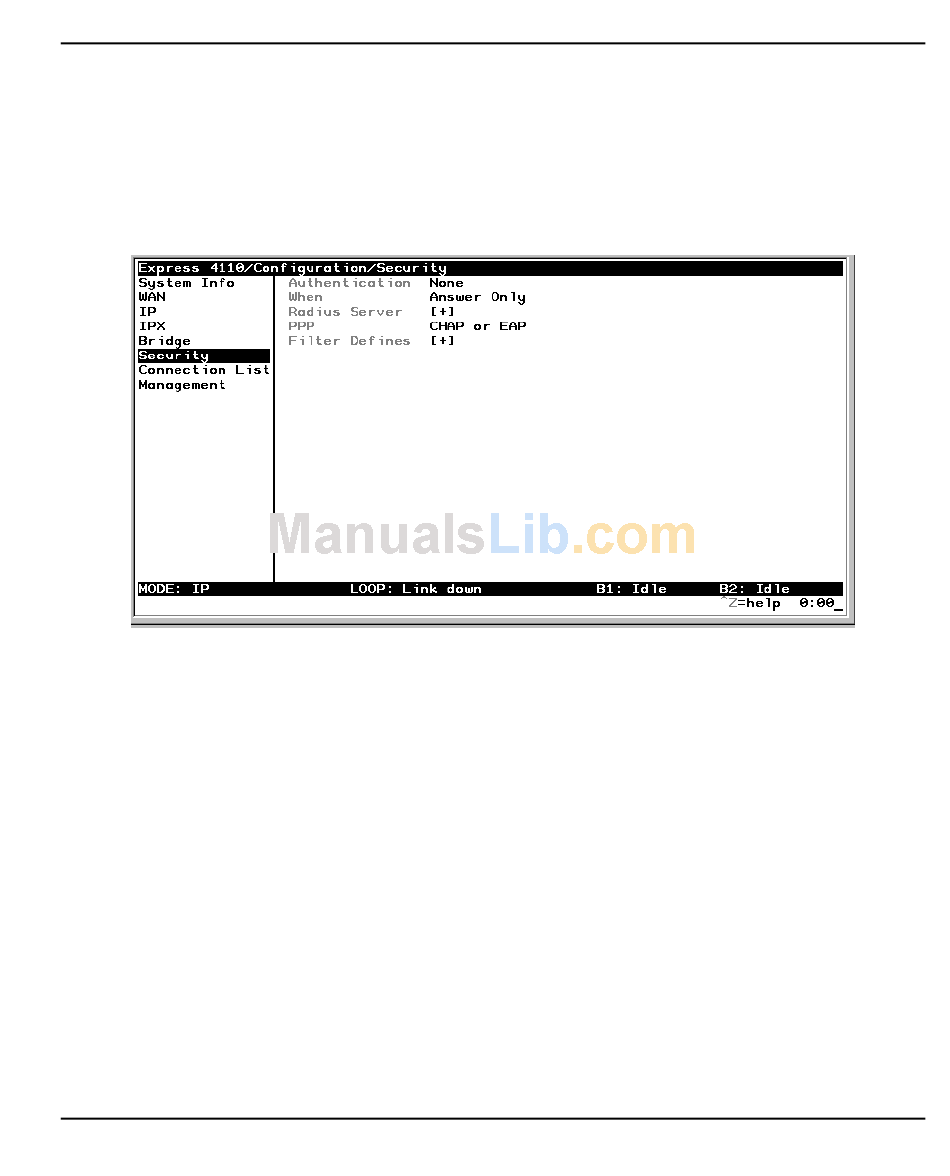

Figure 3-7. Configuration/Security Screen

Write security: 1; Read security: 2
The method used for authenticating the PPP peer is selected here. The
possible values are:
None (def) No attempt is made to authenticate the PPP peer.
Radius The Express 4100/4110 will act as a RADIUS client and authen-
ticate the PPP peer using the RADIUS server. The Radius server
parameters must be set up properly for this to work.
Connection The Connection List profile is used to authenticate the PPP peer.
List
See "Configuration/Connection List" on page 3-36 for more information
on authenticating.
Express 4100/4110 User Manual
Chapter 3. Terminal Menu Operation and Structure
3-29
