Conettix DX4020 | Installation Guide | 1.0 Introduction

1.0 Introduction

Use the Conettix DX4020 Ethernet Network Interface
Module (Figure 1) for bi-directional communications
over Ethernet networks. Generally, you use the
DX4020 in PC front-end software packages such as:
•
Conettix D6600 Communications
Receiver/Gateway reporting
•
History retrieval
•
Building Integration System (BIS) and PC9000
•
Remote Programming Software (RPS) connection
for control panel programming
•
Diagnostic troubleshooting

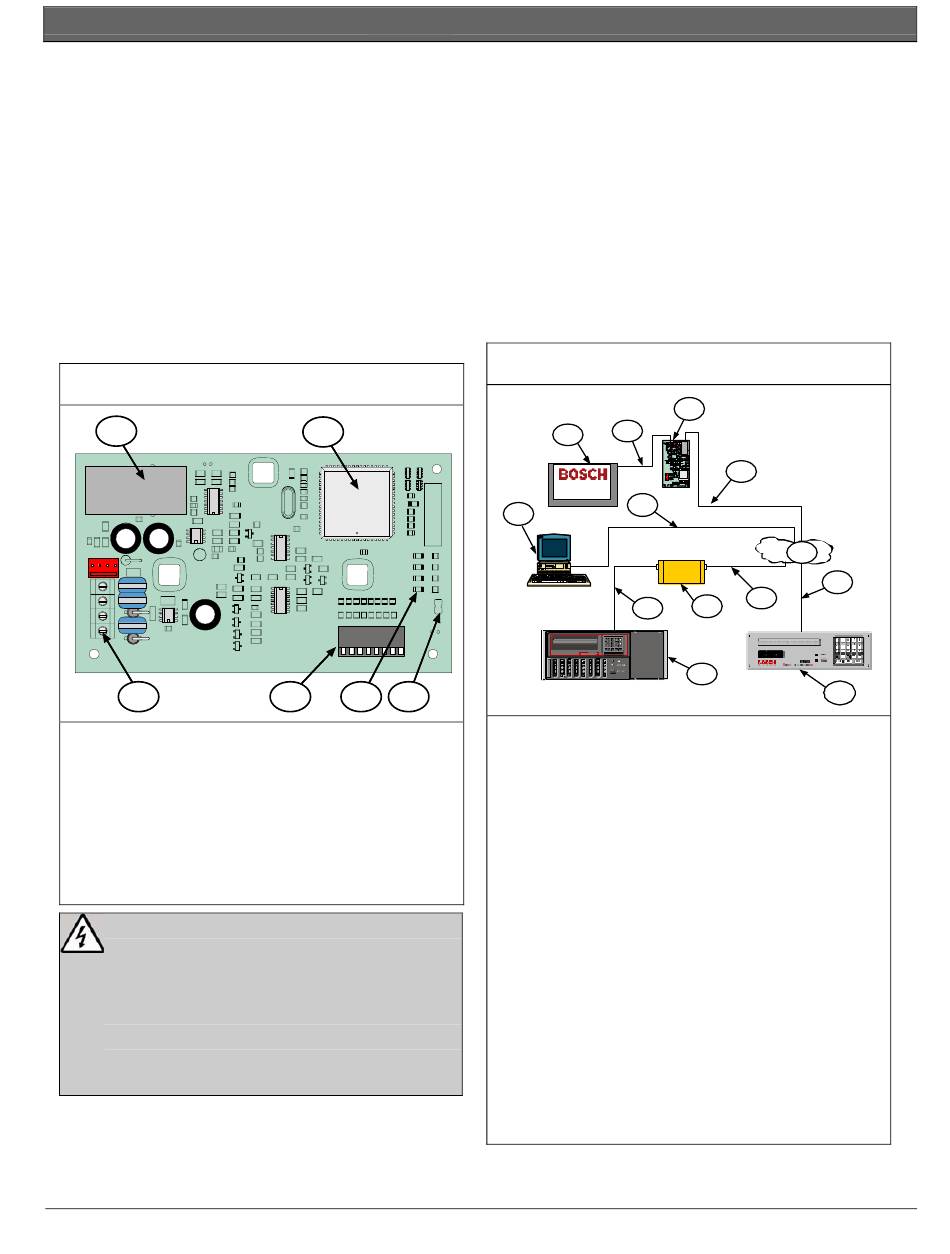

Figure 1: DX4020 Network Interface Module
1
3
® ™
1 - Lantronix XPort network interface module
(NIM)
2 - Erasable programmable read only memory
(EPROM)
3 - Data bus
4 - DIP switches
5 - Serial and bus LEDs
6 - P2 Jumper
Failure to follow these instructions can
result in a failure to initiate alarm conditions.
Bosch Security Systems, Inc. is not
responsible for improperly installed, tested,
or maintained devices.
Follow these instructions to avoid
personal injury and damage to the
equipment.
4
2
4 5 6

2.0 Overview

Refer to Figure 2 for general system connections. The
main components are:
•
Compatible control panel
•
Conettix DX4020 Ethernet Network Interface
Module
•
Conettix D6600 Communications Receiver/
Gateway
•
Conettix D6680 Ethernet Network Adapter
•
Conettix D6100i Communications
Receiver/Gateway
Figure 2: System Connections Overview
2
1
12
13
11
7
1 - Compatible control panel
2 - Compatible control panel data bus to the
DX4020 data bus terminals connection
3 - DX4020 Network Interface Module
4 - DX4020 to Ethernet connection
5 - Ethernet network
6 - Ethernet network to the D6100i connection
7 - Conettix D6100i Communications
Receiver/Gateway
8 - Ethernet network to the D6680/D6682
connection
9 - D6680/D6682 Ethernet Network Adapter
10 - Conettix D6600 Communications
Receiver/Gateway
11 - D6680 to the D6600 COM4 Port connection
12 - Ethernet network to Host PC Ethernet network
interface card (NIC) connection
13 - Host PC running D6200 Programming
Administrative Software
Bosch Security Systems, Inc. | 1/09 | F01U045288-05
3
4
5
6
8
9
10
7
