Introduction

3.1

Description

The extension module AMC2-4WE is equipped with four Wiegand type reader-interfaces plus
eight inputs and eight outputs. Hence with the AMC2-4WE it is possible to double the number
of readers on an AMC2-4W from 4 to 8.

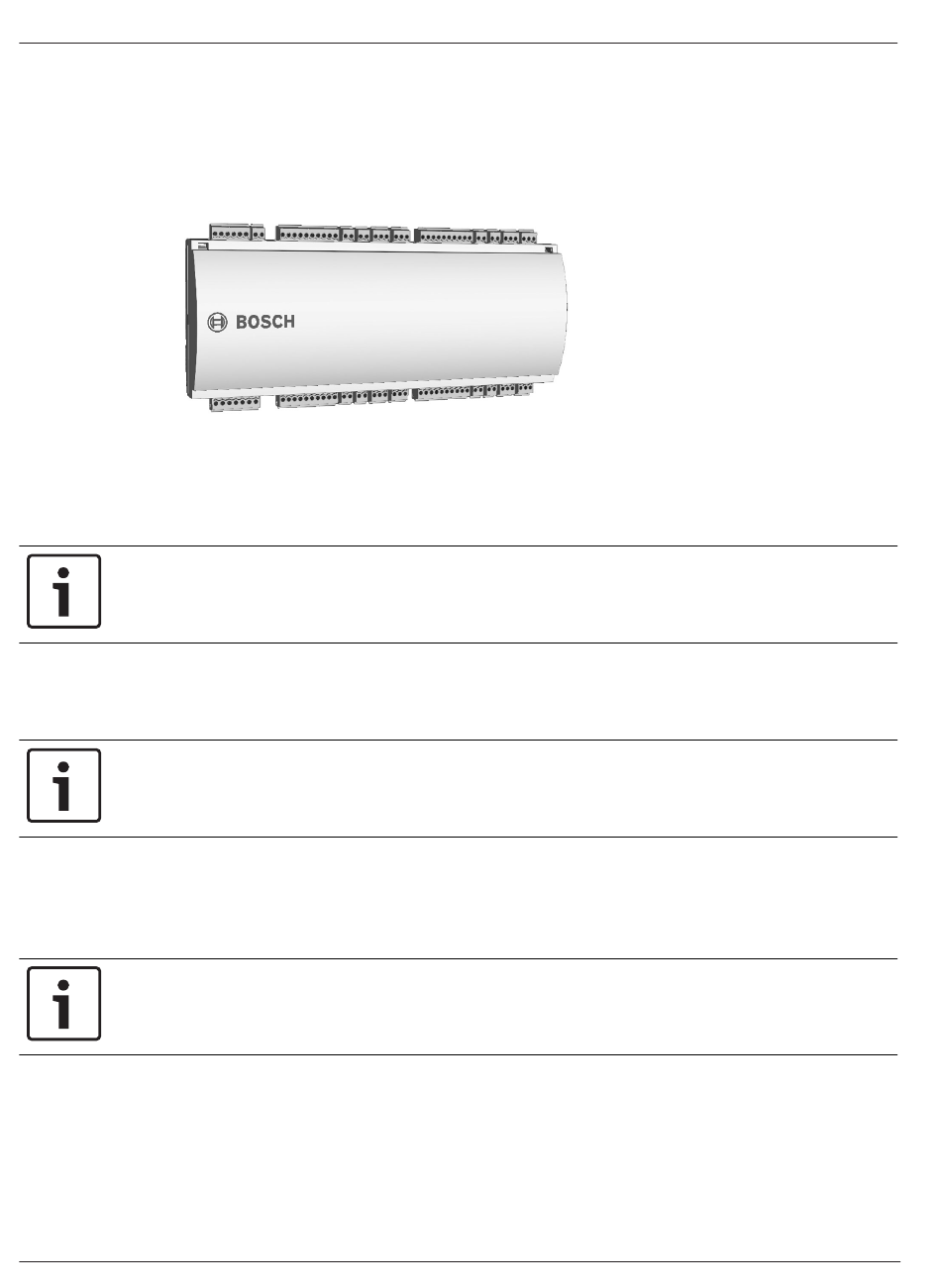

Figure 3.1: The extension module AMC2-4WE
The AMC2-4WE can not be deployed as an independent controller but only as an extension
module for the AMC2-4W. Control and access decisions and bookings are carried out by the
AMC2-4W alone.
Notice!
The AMC2-4WE can only be used with AMC2-4W. As it provides Wiegand interfaces it cannot
be coupled with an AMC2-4R4.
The AMC2-4W can be extended by a maximum of one AMC2-4WE plus a maximum of three I/O
extension modules. The I/O extension modules AMC2-8IOEAMC2-16IOE (in any combination)
are, like the AMC2-4WE, connected via the AMC2-4W's extension interface.
Notice!
The AMC2-4WE has no display. The information about the input and outputs will be shown on
special pages of the AMC2 display.
As the extension modules contain neither memory nor display they are controlled and
monitored entirely by the AMC2-4W.
The AMC2-4W can have an additional interface extension module AMC2-4WE, so that the
number of inputs and outputs can grow up to 64.
Notice!
An AMC2-4WE provides signals only to the AMC2 to which it is connected. Signal transfer to
another AMC2 is not possible.
The signal settings and parametrization of the readers connected to the extension module, are
carried out by the configuration applications in the access control system and by the
AMC2-4W to which it belongs.
