Conettix DX4020 | Installation Guide | 5.0 LEDs
4.3

DS7400Xi Control Panel

Use Option Bus Addresses 13 and 14 (Figure 9 and
Figure 10) to send reports. Use Option Bus Address 13
to connect to the RPS for remote programming.

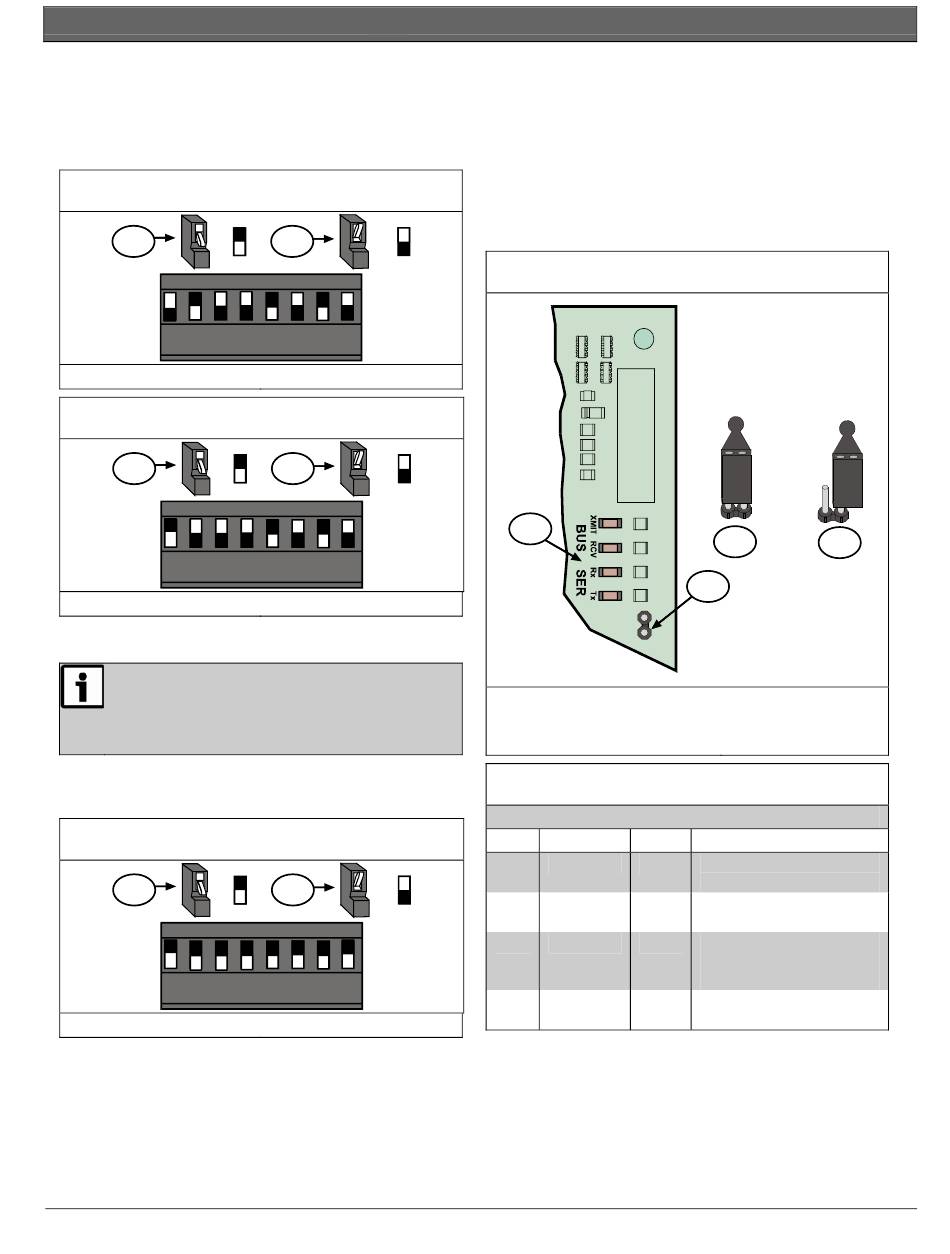

Figure 9: DIP Switch Setting for Address 13
1
=
1 2 3 4 5 6 7 8
1 - ON (down)
Figure 10: DIP Switch Setting for Address 14
1
=
1 2 3 4 5 6 7 8
1 - ON (down)
4.4

FPD-7024 Control Panel

For proper network communication
between the DX4020 and the FPD-7024
Control Panel, the DX4020 requires
firmware revision 2.21 or later.
Use Option Bus Address 250 (Figure 11) when using the
DX4020 with an FPD-7024 Control Panel.
Figure 11: DIP Switch Setting for Address 250
1
=
1 2 3 4 5 6 7 8
1 - ON (down)
8
=
2
2 - OFF (up)
=
2
2 - OFF (up)
=
2
2 - OFF (up)

5.0 LEDs

5.1

Ethernet and Serial

Figure 12 and in Table 3 identify and describe the
DX4020's four bus and serial status LEDs.
Use the P2 jumper to enable (jumper on) or disable
(jumper off) LED operation.
Figure 12: Ethernet and Serial LEDs
1
1 - Ethernet and serial
LEDs
2 - P2 jumper
Table 3: Bus and Serial Status LEDs
LED Name Color
1 BUS-XMIT Red
2 BUS-RCV Red
3 SER-RX Green
4 SER-TX Green
Bosch Security Systems, Inc. | 1/09 | F01U045288-05
3
4
2
3 - LED enabled
4 - LED disabled
Function
Flashes when the data bus
sends a message.
Flashes when the data bus
receives a message.
Flashes every time a
message is received from
the Ethernet port.
Flashes when a message is
sent to the Ethernet port.
