DRK-CCA

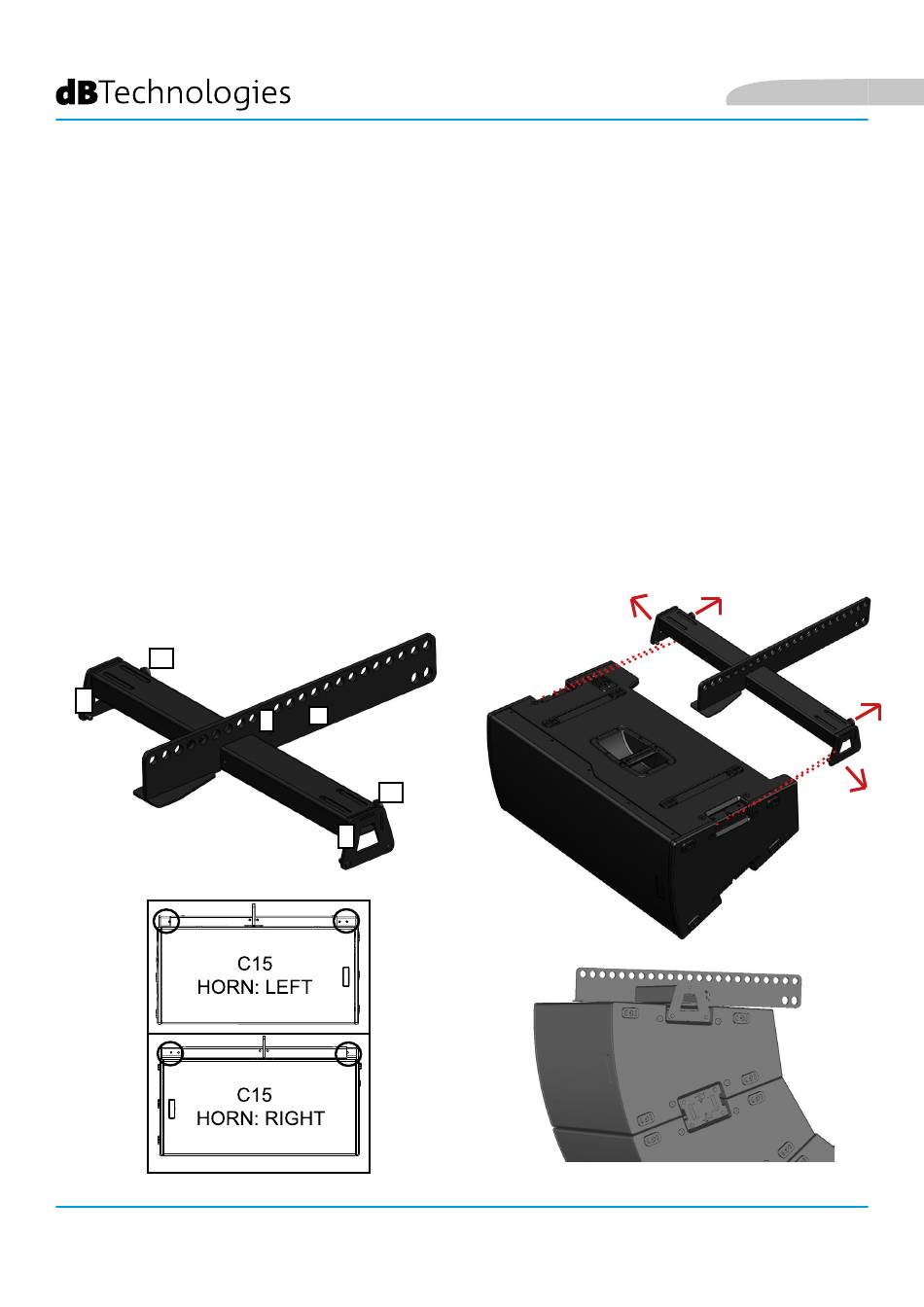

DRK-CCA is the fly-bar for the installation of up to four VIO C12 - VIO C15
units in vertical cluster.
For VIO C12 the assembling is symmetrical, while for VIO C15 it depends on
whether the horn is fitted on the right or on the left - as shown in the dia-
gram below - in order to balance the centre of gravity.
DRK-CCA is characterised by:
X - MOVABLE SIDE BRACKETS
W - EXTRACTABLE SAFETY PINS
Z - MAIN BRACKET
J - HOUSING FOR LASER INCLINOMETER (OPTIONAL)
For installation, LP-1 must be used in the lateral position as shown in the
figure on the side.
To mount it, pull out the side brackets one at a time by acting on their pins
and insert them into the upper element of the cluster.
The maximum allowed load is 170 kg/374 lbs
W
X
J
Z
W
w w
X
