DRKL-4

J
w

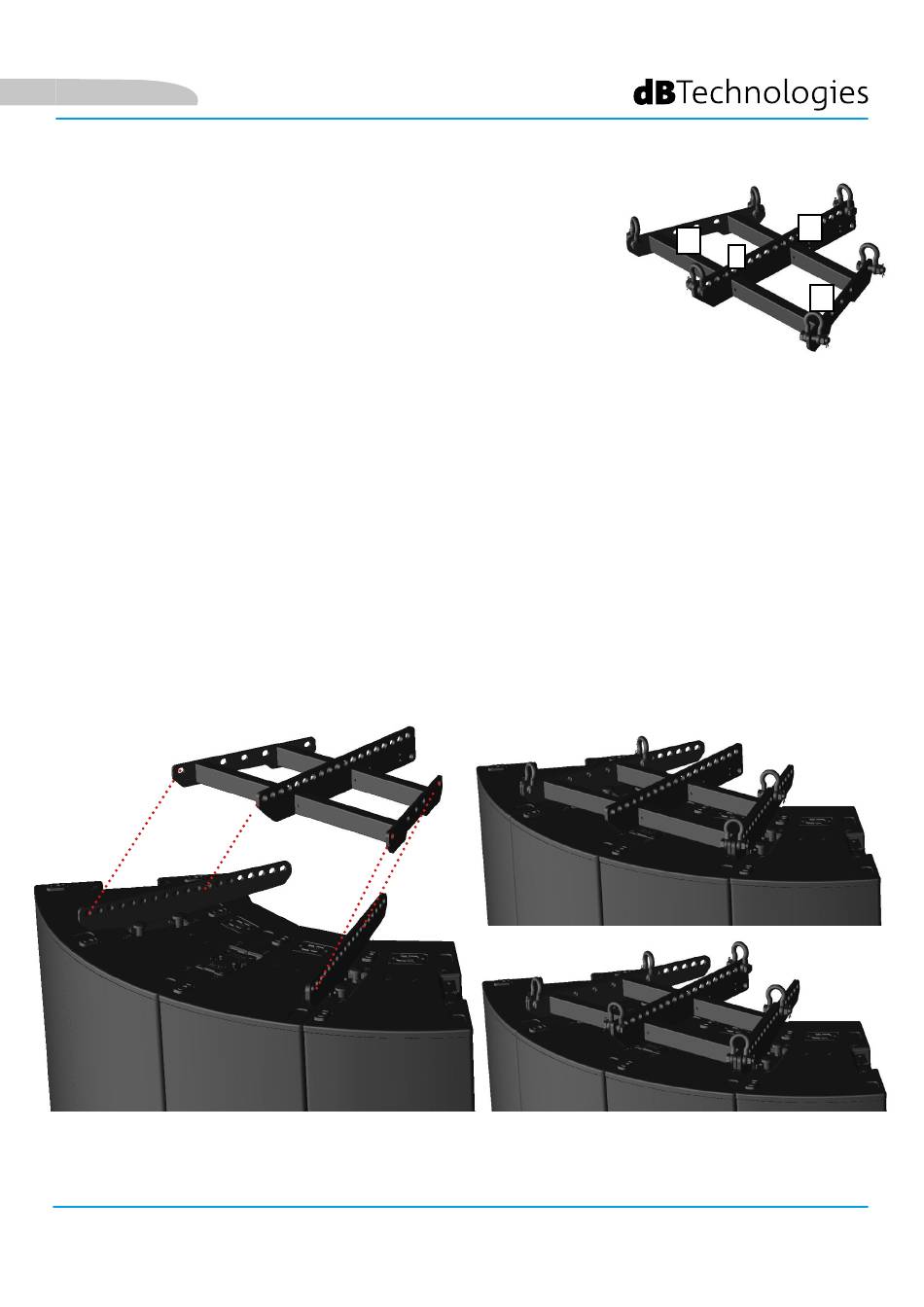

DRKL-4 is the fly-bar for the flown installation of VIO-C clusters. It is used
Z
for a cluster of up to 2 layers of 3 elements each. Two shackles with pin for
hanging and 2 LP-1 link-brackets are included in the supply.
w
2 DRK-C units and the use of LP-1 link plugs are required for installation,
depending on the configuration.
DRKL-4 is characterised by:
W - BRACKETS FOR DRK-C
Z - MAIN BRACKET
J - HOUSING FOR LASER INCLINOMETER (OPTIONAL)
See the previous DRK-C section for preliminary details.
The installation starts with a cluster with 2 DRK-C units and relevant LP-1 link
plugs already installed.
The brackets W are fixed to the DRK-C units by their shackles, using the
far end holes shown in the figure. Then the 2 shackles supplied are used
on the main bracket Z, according to the positions of the holes on the label
(1-19 to comply with EUROCODE 3 regulation, 5-12 to comply with BGV-C1
regulation).
Maximum load: 340 kg/749.6 lbs.
