COVERAGE (HORIZONTAL CLUSTER)

The horizontal sound coverage of a speaker for the 3 models is:
22.5°. The coverage in horizontal cluster can be assumed to be the
sum of the individual coverages (e.g. clusters of 4 VIO C units side
by side: 90°).
The vertical coverage is asymmetrical and varies according to the
model.
VIO C12-C212: +20° -35°.
VIO C15: +15° -30°.
In addition to the use in horizontal 1-layer clusters, VIO C12 AND
VIO C15 can be used in 2-layer clusters.

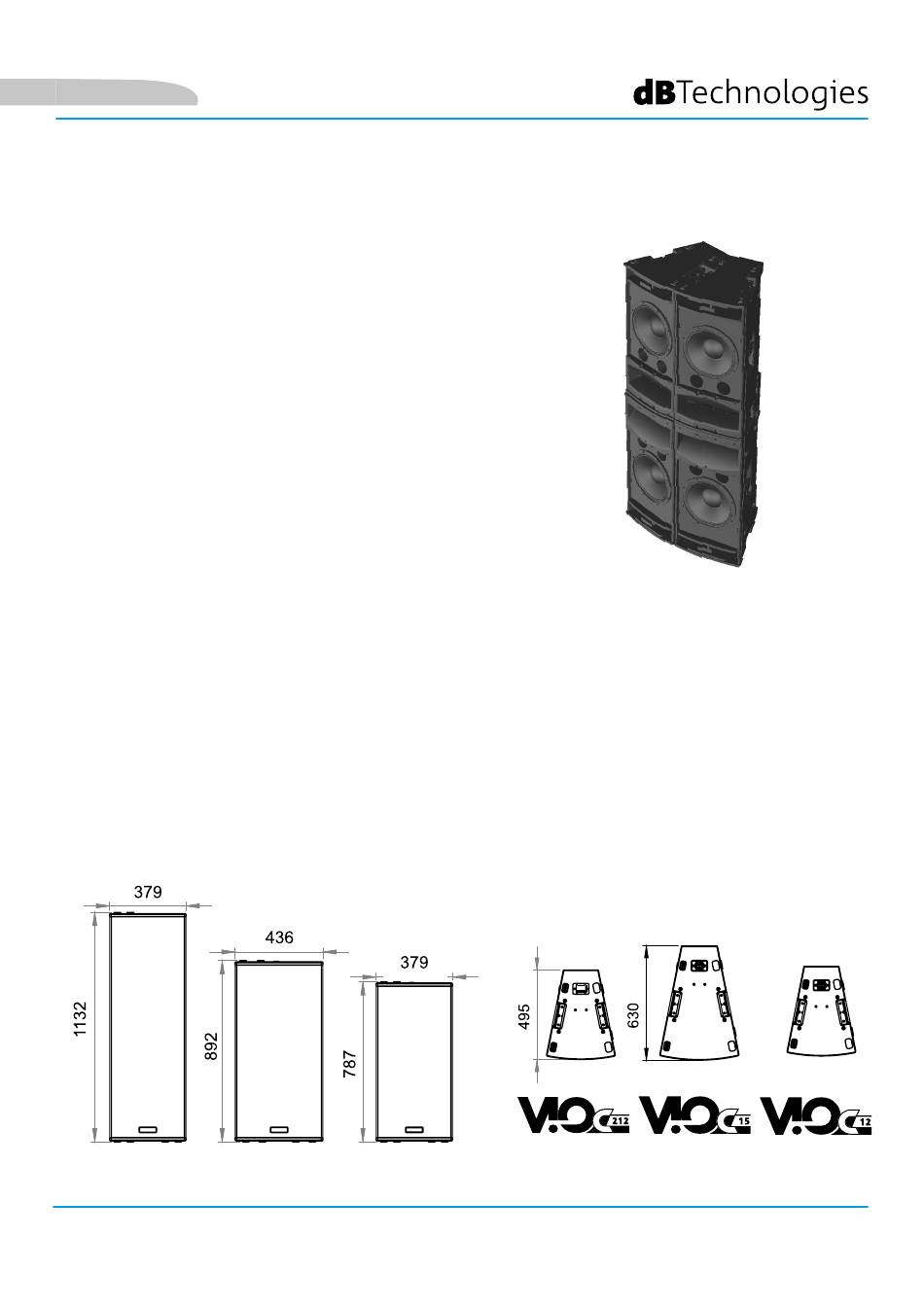

In this case, as shown in the figure, the speakers are upside down
in the upper layer: therefore, thanks to the matching of the
acoustic horns, the vertical coverage can be as follows:
VIO C12 - 2-layer clusters - V: 70°
VIO C15 - 2-layer clusters - V: 60°

DIMENSIONS

The VIO C series has been designed with the intent to optimise weight and dimensions in relation to
performance.
For a quick comparison of the 3 models, the overall dimensions are the following:
VIO C12 - 379 mm (w), 787 mm (H), 495 mm (D)
VIO C15 - 436 mm (W), 892 mm (H), 630 mm (D)
VIO C212 - 379 mm (W), 1132 mm (H), 495 mm (D)
