DRK-C

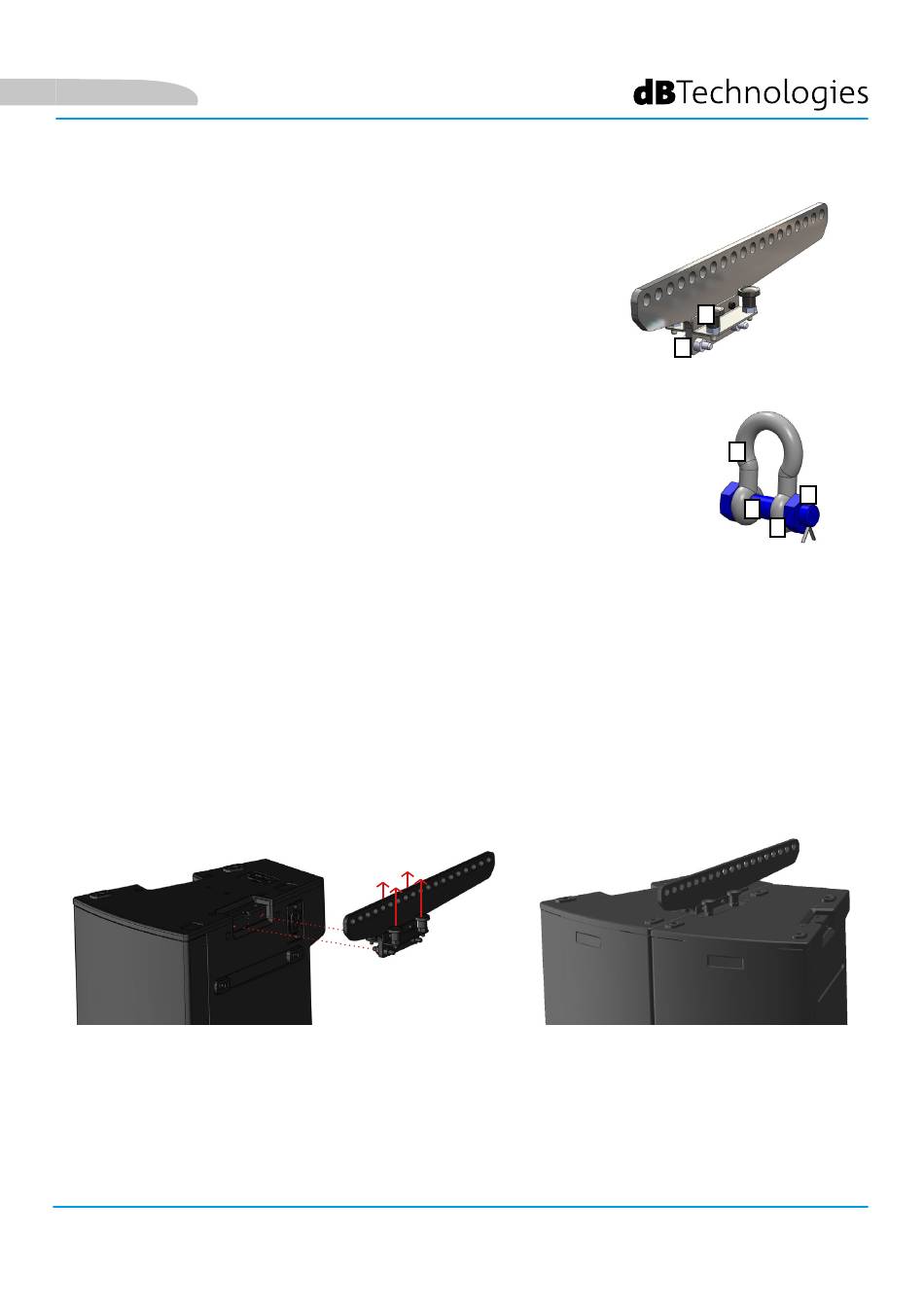

DRK-C is the fly-bar for the flown installation of VIO-C clusters. It is used
alone for a cluster of up to 2 layers of 2 elements each, or, in combination
with other fly-bar models, for larger clusters. Two shackles with safety pin
for hanging are included in the supply. Depending on the type, the LP-1
X
link plugs are always required for the installation of the clusters, see the
relevant instructions.
Y
DRK-C is characterised by:
X - QUICK RELEASE PINS (x 4)
Y - HORIZONTAL PINS
a
The shackles with safety pin are equipped with:
d
b
a - SHACKLE
c
b - BOLT
c - NUT
d - PIN
The insertion into the first VIO-C of DRK-C is done by lifting the pins X of
the first side and inserting the horizontal pins Y into the mechanical seat,
then proceeding to the other side with the second speaker. Note that the
pins X remain in the lifted position, with a slight rotation when lifted, and
unlock again with a subsequent rotation.
Insert the 2 shackles for the flown hanging (by unscrewing the nut c,
inserting bolt b into the holes, and tightening and inserting the safety pin).
The maximum load is 190 kg/418.9 lbs.
