INPUT, OUTPUT, RDNET AND CONTROL SECTION
1. INPUT AND OUTPUT LINK ("Balanced
audio")
Input and output compatible with cables
with balanced XLR connectors.
In particular, "Input" is used to connect
with the audio signal coming from the
mixer or from another loudspeaker,
"Link" is used to link the signal to other
loudspeakers.
2. OLED DISPLAY
It allows displaying all VIO C control
parameters, or signalling that the control is
remote (Aurora Net)
3. PUSH/ROTARY ENCODER
Button that can be pressed or rotated.
Pressing this button allows you to change
a parameter or confirm it, rotating it allows
you to select the value or increase/decrease
it.
4. INPUT AND NETWORK CONNECTION
LINK RDNet
Section compatible with network cables
with etherCON/RJ45 connectors.
In particular, "Data in" must be connected
to devices such as RDNet Control 2 or
Control 8; "Data Out" is used to link the
network to additional loudspeakers in
daisy-chain configuration.
5. CONTROL LEDs
LEDs relating to module network operation (RDNet).
In particular, if "Link" is on the RDNet network is active and has acknowledged the device, if "Active" is flashing
there is data traffic, if "Remote Preset Active" is on all local control on the amplifier panel are by-passed by the
RDNet remote control.
6. SERVICE DATA USB PORT
It is a USB B port to be used only for product firmware update.
VIO C SERIES
4
5
2
1

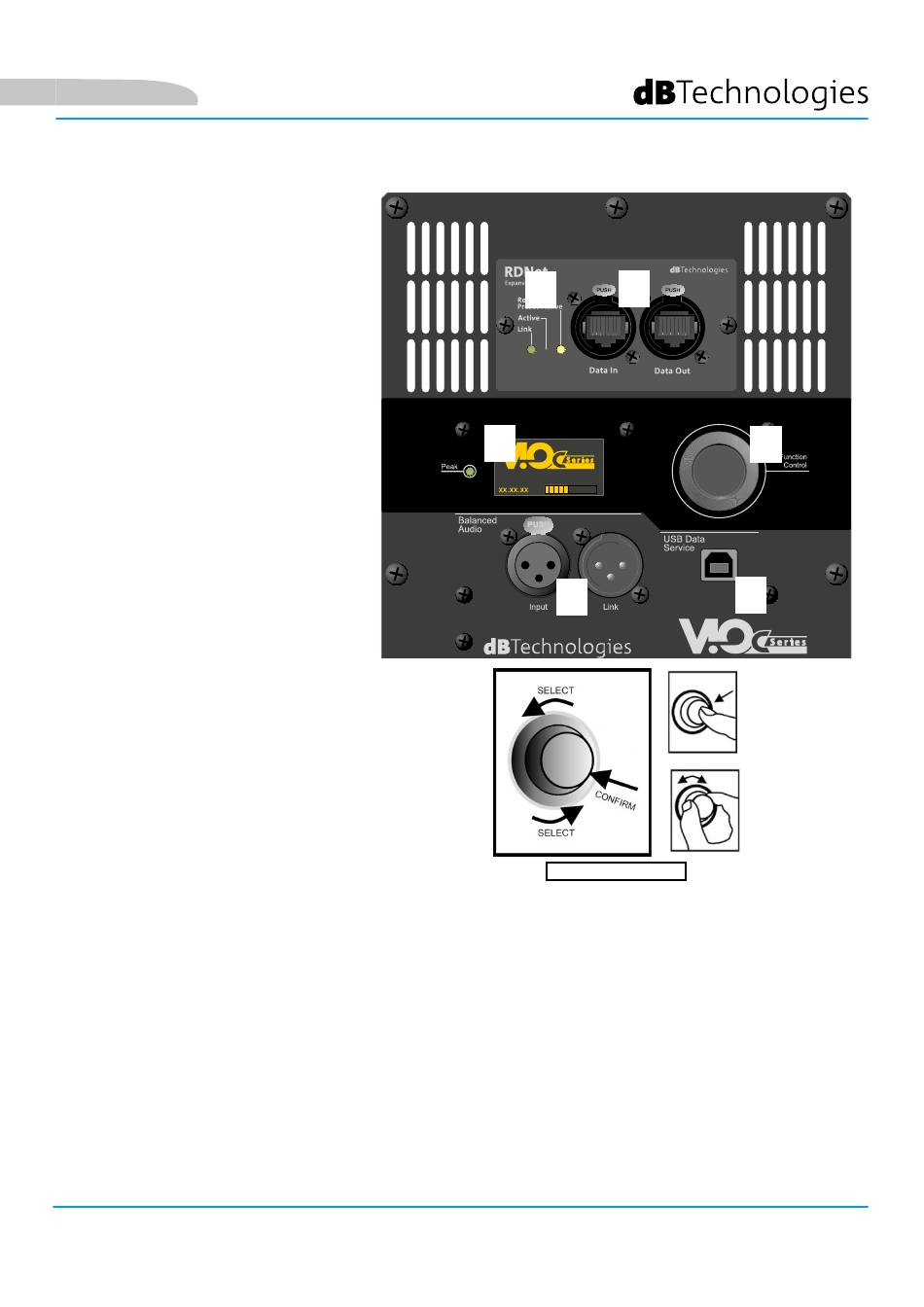

PUSH/ROTARY ENCODER
