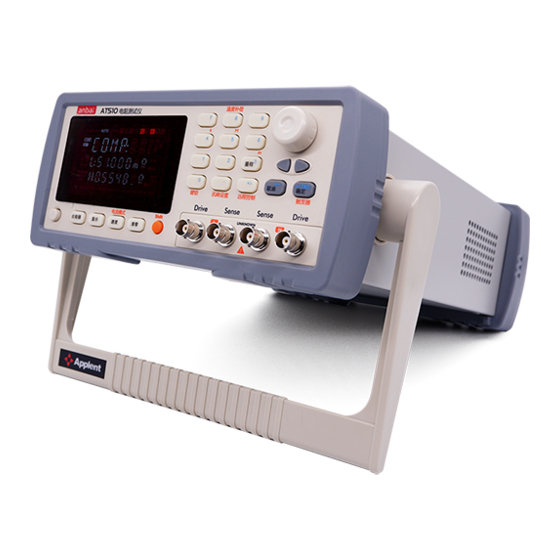

Applent Instruments Anbai AT510PRO User Manual

Dc resistance meter
Hide thumbs Also See for Anbai AT510PRO:
Table of Contents

Advertisement

Quick Links

Download this manual
! $Instruments
Applent Instrument, Inc.
Dangnan Industrial Park,Tianning District,
Changzhou, Jiangsu, China [213014]
Tel：0519‐88805550 / 89966117/89966227
Fax：0519‐89966550
http://www.applent.com
Sales Email: sales@applent.com
Tech Email: tech@applent.com
©2005‐2014 Applent Instruments, Inc.

Rev.D3
[AT510PRO/510/510SE/510L/510M
DC RESISTANCE METER]
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anbai AT510PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Applent Instruments Anbai AT510PRO

Summary of Contents for Applent Instruments Anbai AT510PRO

  • Page 1 ! $Instruments Applent Instrument, Inc.  Dangnan Industrial Park,Tianning District,  Changzhou, Jiangsu, China [213014]  Tel：0519‐88805550 / 89966117/89966227  Fax：0519‐89966550  http://www.applent.com  Sales Email: sales@applent.com  Tech Email: tech@applent.com  ©2005‐2014 Applent Instruments, Inc.    Rev.D3 [AT510PRO/510/510SE/510L/510M DC RESISTANCE METER] User’s Manual...

  • Page 2: Safety Summary

    When you notice any of the unusual conditions listed below, immediately terminate operation and disconnect the power cable. Please Contact Applent Instruments Incorporation sales representative for repair of the instrument. If you continue to operate without repairing the instrument, there is a potential fire or shock hazard for the operator.

  • Page 3: Certifiaction, Limited & Limitation Of Uability

    CERTIFIACTION, LIMITED & LIMITATION OF UABILITY Applent Instruments, Inc. （ shortened form Applent ） certifies that this product met its published specifications at the time of shipment from the factory. Applent further certifies that its calibration measurements are traceable to the People’s Republic of China National Institute of Standards and Technology, to the extent allowed by the...

  • Page 4: Table Of Contents

    AT510x DC Resistance Meter Contents Safety Summary ..............................2  CERTIFIACTION, LIMITED & LIMITATION OF UABILITY ..............3  Contents ................................4  1.  Unpacking and Inspection ..........................6  1.1  Packing List ............................6  1.2  Power Supply ............................. 6  1.3  Setting up Fuse ..........................7  1.4 ...
  • Page 5 Unpacking and Inspection 6.1  High Current Test Mode ........................24  6.2  Low Current Test Mode(AT510PRO/AT510) .................. 25  6.3  Plus Current Test Mode (AT510PRO/AT510) ................. 25  6.4  General Specification ........................26  6.5  Dimensions ............................27  7.  Models ................................28 ...

  • Page 6: Unpacking And Inspection

    AT510x DC Resistance Meter Unpacking and Inspection This chapter provides the following information:  Packing List  Power Supply  Setup Fuse  Operating Environment  Cleaning  How to Remove the Handle Packing List After you receive the instrument, carry out checks during unpacking according to the following procedure.

  • Page 7: Setting Up Fuse

    Unpacking and Inspection Setting up Fuse ~Line: 47.5Hz - 66Hz 198VAC - 242VAC 10VA MAX Fuse: 250V, 0.5AH Slow Blow Figure1-1 Fuse Holder Please use the following fuse type ： UL/CSA type, Slow-Blow, 5×20-mm miniature fuse, 0.5A, 250 V .  Environmental Requirements Ensure that the operating environment meets the following requirements.

  • Page 8: How To Remove The Handle

    AT510x DC Resistance Meter How to Remove the Handle A handle kit is attached to the AT512: Figure 1‐1 Hand Handle 1 Retracted   Carrying Position 2 Extended  e Handle Lift the handle perpendicular to the unit while pulling it in the direction of ①. ） Remov （...

  • Page 9: General

    General 2. General This chapter provides the following information:  Index  Models Introduction  Main Specification  Feature Overview Introduction Thank you for purchasing AT510x DC Resistance Meter. AT510x is a high-precision wide-range, high-performance microprocessor-controlled resistance meter. Its measurement range of 1 ～ Ω...

  • Page 10: Feature Overview

    AT510x DC Resistance Meter  Basic Accuracy ： 0.05%  Maximum display digits:30000  10 ranges automatic and range hold Resistance range :1Ω ～ 20MΩ  Fast-high accuracy measurement Test speed of 15 times / sec, it still can guarantee high test accuracy (0.05%) and maxim display digits: 30000.

  • Page 11: Start Up

    Start up 3. Start up This chapter provides the following information:  A tour of front panel  A tour of rear panel  Power Up  Display information  Measurement configuration Front panel 3.1.1 Front Panel Overview Figure 3‐1 Front Panel Overview Brightness ...
  • Page 12 AT510x DC Resistance Meter Comparator 30mV Limit I-Mode Relative  -% Comp Rate Clear Figure 3‐3 Keypad II Brightness  Range  Data ← Trig Beep Enter Hold Key Lock Beeper Remote Trigger Table 3‐2 Primary Functions description Function Comparator Setup comparator -% *The function is invalid. Speed Measurement speed:（Slow）,（Medium）,（Fast）.

  • Page 13: Vfd

    Start up k, M, G). 3.1.3 VFD Figure 3‐4 VFD Applent’s Trade Mark.    Remote Control Indication. Beep is ON. AUTO Range automatic indication. Relative function is ON. Fail. Good. Above the upper limit value. Pass. Blow the lower limit value. COMP Comparator function is ON.

  • Page 14: Power Up

    AT510x DC Resistance Meter RS232C interface. Handler interface. AC power cord receptacle and fuse holder Power Up 3.3.1 Line Power Connection Power ON. Power OFF. 3.3.2 Power‐ up Sequence ： AT510x is power up, it performs self-tests on its Flash-Rom, RAM and momentarily lights all segments and indicators. If a failure is detected, the instrument will not enter the measurement state.

  • Page 15: Test Current Modes

    Start up Warning: No putting current source, voltage source directly access test side. Energy storage device access to testing after discharging. 3.4.2 Test Current Modes In the 2 function status, press Current Mode to select: High Current Mode － Low Current Mode － Plus Current Mode. The present current mode displays in the 3 line.

  • Page 16: Speed

    AT510x DC Resistance Meter 1M 10M Press Range < > keys to choose the fit range. Range Hold is help increasing the measurement rate..  In the “automatic range” status, the meter should be calibration (zeroing) when it can’t Tip： ...

  • Page 17: 20Mv Limit（The Function Is Invalid In The At510X's Version

    Start up  Indicator lighted means the keypad is locked. 3.4.9 20mV limit （ The function is invalid in the AT510x’s version. ） The function is invalid in the AT510x’s version. 3.4.10 Temperature Compensation Function AT510PRO, AT510: Standard function.AT510SE: Optional function.AT510L/510M: Invalid function. The temperature probe is plugged into the jack ， the function is enabled. Resistance value of temperature compensation works when the meter is equipped with temperature probe temperature.

  • Page 18: Comparator

    AT510x DC Resistance Meter 4. Comparator This chapter provides the following information:  Turn ON/OFF  Setup comparator record number file  Setup nominal value and limit value  Setup Beep Turn ON/OFF Comparator AT510X’s comparatorcan be turned OFF by pressing Comp key. When the comparator function is OFF, sorting system will no longer work and the Handler interface signals on the comparator output will be shut down.

  • Page 19: Turn On/Off Beep

    Comparator 4.1.3 Turn ON/OFF Beep Press Beep key to turn ON/OFF beep function. Indication is ON, the beep function is ON. 4.1.4 Setup Beep 1. Press Shift + Beep keys to the beep setup status. 2. Twist the Knob to choose: GD(Pass), NG(Fail). 3.

  • Page 20: Handler Interface

    AT510x DC Resistance Meter Handler Interface Note ： AT510PRO/AT510 (Standard interface), AT510SE/510L/510M(Optional interface). This chapter provides information of AT510x’s built-in handler interface. Include:  Pin Assignment  Circuit Diagram  Timing Chart The AT510x’s built-in handler interface outputs signals that indicate the end of a measurement cycle, the result of bin sorting by the comparator.

  • Page 21: Connection Method

    Handler Interface  External signal output Unused Unused Unused Unused Unused Unused “Parameter below lower limit” signal. This signal is output when the parameter is below the lower limit. Output the Pass signal. “Parameter beyond upper limit” signal. This signal is output when the parameter has above the upper limit.

  • Page 22: Electrical Characteristics

    AT510x DC Resistance Meter INPUT Negative logic 50mADC max EXT.DCV DC voltage input 35VDC max Electrical Characteristics 5.4.1 Input Signal: Each input signal is connected to the LED (cathode side) of the photo-coupler. The LED (anode side) is connected to the pull-up power supply voltage. 5.4.2 Output Signal: Each output signal is outputted via a open collector by using a photo-coupler.

  • Page 23: Timing Chart

    Handler Interface Timing Chart TRIG 有有 OUTPUT t1 Measurement time: Fast ： 66.7ms ， Medium ： 200ms ， Slow ： 330ms ： t2 1s ： t3 200s ： t4 0s ：...

  • Page 24: Specification

    AT510x DC Resistance Meter Specification Appendix provides the following information:  Feature Index  General Specification  Dimensions The following data are measured under the following conditions： Temperature：23℃±5℃ Humidity: <=80% R.H Correction：Short Zeroing Warm up：60 minutes and more Calibration Time：6 months High Current Test Mode Sample Speed：...

  • Page 25: Low Current Test Mode(At510Pro/At510)

    Specification Value 300mΩ 300.00mΩ 0.05%+4 0.05%+2 670mA <1V 10Ω 3Ω 3.0000Ω 0.05%+4 0.05%+2 67mA <1V 100Ω 30Ω 30.000Ω 1mΩ 0.05%+4 0.05%+2 6.7mA <1V 300Ω 300.00Ω 10mΩ 0.05%+4 0.05%+2 670uA <5V 3kΩ 3.000kΩ 100mΩ 0.05%+4 0.05%+2 670uA <5V 30kΩ 30.000kΩ 1Ω 0.05%+4 0.05%+2 67uA...

  • Page 26: General Specification

    AT510x DC Resistance Meter Range Maxim Display Resolu Fast Medium & Test Open-circuit terminal Value tion Slow Current voltage 30mΩ 30.000mΩ 1Ω 0.1%±5 0.1%±5 670mA <1V 300mΩ 300.00mΩ 0.05%±5 0.05%±5 67mA <1V 10Ω 3Ω 3.0000Ω 100Ω 0.05%±5 0.05%±5 6.7mA <1V 30.000Ω...

  • Page 27: Dimensions

    Specification Dimensions...

  • Page 28: Models

    Function RS232C RS232C(Optional) Interface HANDLER HANDLER(Optional) Comparator Hi/IN/Lo/GD/NG Range Mode Automatic/Range Hold Display 30000 digitals (4-2/3) VFD Display Beeper GD/NG/OFF, adjust the volume Correction Short Zeroing Test Terminal 4-terminals Test @ Instruments AT510PRO/510/510L/510M/510SE User’s Manual English ©2005-2012 Applent Instruments Inc.
