Applent Instruments
Address: Lanlin Dangnan Industrial Park,
Changzhou, Jiangsu, China (PRC)
Post Code: 213014
Telephone (Sales):
0086-0519-88805550 / 89966117/89966227
Fax：0086-0519-89966550
Sales Email:
sales@applent.com
Tech Email:
tech@applent.com
http://www.applent.com
©2005-2015 Applent Instruments Inc.
English
Revision B1
FIRMWARE REVISIONS
This manual applies directly to instruments that
have the firmware Rev.C1.x
Manual Print History
The print history shown below lists the printing dates of all Revisions and Addenda
created for this manual. The Revision Level letter increases alphabetically as the manual
undergoes subsequent updates. Addenda, which are released between Revisions, contain
important change information that the user should incorporate immediately into the
manual. Addenda are numbered sequentially. When a new Revision is created, all
Addenda associated with the previous Revision of the manual are incorporated into the
new Revision of the manual. Each new Revision includes a revised copy of this print
history page.
Revision A January, 2012
Revision B January, 2015
[

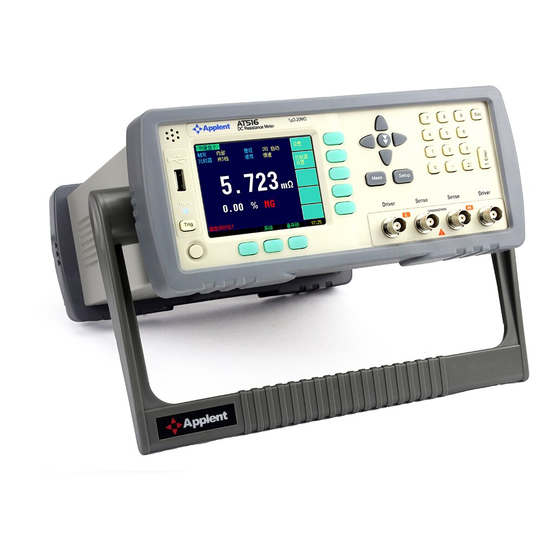

AT516/AT516L
User's Guide
DC Resistance Meter
]
Advertisement
Table of Contents
Related Manuals for Applent Instruments AT516
Summary of Contents for Applent Instruments AT516
- Page 1 0086-0519-88805550 / 89966117/89966227 Fax：0086-0519-89966550 Sales Email: sales@applent.com Tech Email: tech@applent.com http://www.applent.com ©2005-2015 Applent Instruments Inc. English Revision B1 FIRMWARE REVISIONS This manual applies directly to instruments that have the firmware Rev.C1.x Manual Print History The print history shown below lists the printing dates of all Revisions and Addenda created for this manual.
-
Page 2: Certification, Limited Warranty, & Limitation Of Liability
CERTIFICATION, LIMITED WARRANTY, & LIMITATION OF LIABILITY Applent Instruments, Inc. （shortened form Applent）certifies that this product met its published specifications at the time of shipment from the factory. Applent further certifies that its calibration measurements are traceable to the People’s Republic of China National Institute of Standards and Technology, to the extent allowed by the Institution’s calibration facility or by the calibration facilities of other International Standards Organization... -
Page 3: Table Of Contents
2.2.4 Basic Accuracy ......................... 11 2.3 Main Functions ..........................11 2.3.1 Correction Function ........................11 2.3.2 Comparator Function (Sorting) <AT516> ................11 2.4 Measurement Assistance Functions ....................11 2.4.1 Key Lock ..........................11 2.4.2 RS-232 ............................11 3. Startup ................................12 ... - Page 4 AT516/AT516L User's Guide 7.3.1 Input Signal: ..........................31 7.3.2 Output Signal: .......................... 31 7.3.3 Power supply ........................... 31 7.3.4 Schematic ..........................31 8. Remote Control ..............................33 8.1 About RS-232C ..........................33 8.2 About USB-Serial Interface (Option) ....................34 8.3 ...
- Page 5 Unpacking and Preparation Figure Contents Figure 1-1 How to remove the handle ......................9 Figure 3-1 Front panel ..........................12 Figure 3-2 Real Panel ..........................12 Figure 3-3 Connect to DUT ........................13 Figure 4-1 <MEAS DISPLAY> Page ......................15 Figure 4-2 ...
-
Page 6: Table Contents
Table 3-2 Real panel description ......................13 Table 4-1 Range Mode ........................... 16 Table 4-2 Effective measurement range of AT516 ................... 16 Table 4-3 Effective measurement range of AT516L ................17 Table 7-1 Description of Handler Interface Signals ................. 30 ... -
Page 7: Unpacking And Preparation
Please use the following fuse type. UL/CSA type, Slow-Blow, 5×20-mm miniature fuse, 1A, 250 V When you need a fuse, contact your nearest Applent Instruments sales or service office. To verify and replace the fuse, remove the power cable and pull out the fuse holder. -
Page 8: Cleaning
Altitude: 0 to 2,000m Vibration: Max. 0.5 G, 5 Hz to 500 Hz Cleaning To prevent electrical shock, disconnect the AT516 power cable from the receptacle before cleaning. Use a dry cloth or a cloth slightly dipped in water to clean the casing. - Page 9 Unpacking and Preparation Figure 1‐1 How to remove the handle 1 Retracted 3 Carrying Position 2 Extended Remove Handle（Lift the handle perpendicular to the unit while pulling it in the direction of 1.）...
-
Page 10: Overview
With its built-in comparator, the AT516 can output comparison/decision results for sorting components into a maximum of ten bins. Furthermore, by using the handler interface, the AT516 can be easily combined with a component handler, and a system controller to fully automate component testing, sorting, and quality-control data processing. -
Page 11: Basic Accuracy
Overview 2.2.4 Basic Accuracy Slow Speed: 0.05% <AT516> 0.1% <AT516L> Medium Speed: 0.1% <AT516> 0.2% <AT516L> Fast and Ultra Speed: 0.5% <AT516> Main Functions 2.3.1 Correction Function SHORT correction: Eliminates measurement errors due to stray parasitic impedance in the test fixtures. 2.3.2 Comparator Function (Sorting) <AT516>... -
Page 12: Startup
AT516/AT516L User's Guide Startup This chapter describes names and functions of the front panel, rear panel, and screen display and provides the basic procedures for operating AT516/AT516L. Front panel summary Rear panel summary Power On/Off Connect to Device under Test Front panel Figure 3‐1... -
Page 13: Power On/Off
Power ON. Power OFF. Warm‐up Time AT516 is ready to be used as soon as the power-up sequence has completed. However, to achieve the accuracy rating, warm up the instrument for 30 minutes. Connect to Device under Test (DUT) Red logo testing BNC cables into the H in the first rotation;... - Page 14 AT516/AT516L User's Guide Warning: No putting current source, voltage source directly access test side. Energy storage device access to testing after discharging.
-
Page 15: Meas Display> Page
Figure 4‐1 <MEAS DISPLAY> Page 4.1.1 Trigger Mode [TRIG] SCPI Command: TRIGger:SOURce {INT,MAN,EXT,BUS} AT516 supports four trigger modes: INT (internal), EXT (external), MAN (manual) and BUS (RS-232). Trigger Mode Description AT516/AT516L continuously repeats the measurement cycle. AT516/AT516L performs one cycle of measurement each time you press the [Trig] key. -
Page 16: Range [Range]
SCPI Command: FUNCtion:RANGe {<range number>,min,max} SCPI Command: FUNCtion:RANGe:MODE {AUTO,HOLD,NOMinal} Table 4‐1 Range Mode Mode Function overview Advantage Disadvantage Auto AT516 sets the optimum range You don’t need to The measurement range automatic. select range. time is longer due to the ranging time Hold... -
Page 17: Comparator Bins [Comp]
Handler interface signals on the comparator output will be shut down. Please refer to the comparator section for detail. AT516’s built-in comparator can sort devices into a maximum of 10 bins (BIN1 to BIN9 and NG) using a maximum of 10 pairs limits Figure 4‐2... -
Page 18: Measurement Speed [Rate]
4.1.4 Measurement Speed [RATE] SCPI Command: FUNCtion:RATE {SLOW,MED,FAST,ULTRA} SLOW, MED, FAST, ULTRA and ULTRA(DISPLAY OFF) can be selected for AT516. SLOW mode will result in more stable and accurate measurement result. When in Range-Hold mode: Ultra(Display Off) : 140 readers/second (7ms) <AT516>... -
Page 19: Display Off When In Ultra(Disp Off) Speed
Soft key Function SLOW 2 readers per second (500ms) 12 readers/second (83ms) FAST 35 readers/second (28ms) <AT516> ULTRA 67 readers/second (15ms) <AT516> ULTRA(DISP OFF) 140 readers/second (7ms) <AT516> When in ULTRA(DISP OFF) mode, “DISPLAY OFF” will appear on the screen. -
Page 20: Setup> Page
Reference Temperature [REFER TEMP] NOTE: *1. These four settings can be set in <MEAS DISPLAY> page. Please refer Sector 错误!未找到引用源。 错误!未找到引用源。 to set. 5.1.1 Turn Temperature Compensation ON/OFF SCPI Command: FUNCtion:TC {ON,OFF,1，0} The AT516 built in Temperature Compensation Interface. The Temperature Compensation Formula is:... -
Page 21: Temperature [Coefficient] Α
Short‐circuit Clear Zero SCPI Command: CORRect:SHORt The short correction feature of the AT516 compensates for any residual resistance that may exist within the interval from the calibration plane, which is determined by the selected cable length, to the DUT connecting points (see Figure 5-2 ) Figure 5‐2... -
Page 22: Comparator> Page
Please make the test clips short-circuit like the following way: Step 5. Press [OK] soft key. The AT516 measures short resistance at the all ranges. During the measurement, an “SHORT measurement in progress” dialog message is shown on the display. -
Page 23: Comparator Limit Mode [Mode]
<SETUP> Page Comparator limit mode [MODE] NOTE: *1. This setting also can be set in the <MEAS DISPLAY> page. 5.3.1 Comparator limit mode [MODE] SCPI Command: COMParator:MODE {ABS,PER,SEQ} You can specify the primary parameter limit values in one of the following 2 ways: ... -
Page 24: Nominal Value For Tolerance Mode
5.3.3 Lower and Higher Limits SCPI Command: COMParator:BIN < 1~10>,<LOW>,<HIGH> AT516’s built-in comparator can sort DUTs into a maximum 10 levels (Bin1 thru Bin10 and OUT) using up to 10 sets limits. To enter the limit values Step 1. Press the [Meas] or [Setup] key Step 2. - Page 25 <SETUP> Page When in the ABS and SEQ mode, please enter the unit using the soft keys. When in the PER mode, the unit is %. Step 5. Repeat Step 4 using the cursor keys until you have entered all limit values.
-
Page 26: System Configurations
Figure 6‐1 <SYSTEM CONFIG> Page 6.1.1 Setting the system date and time AT516 features a built-in 24-hour clock. To change the date Step 1. Press the [Meas] or [Setup] key Step 2. Press the [SYSTEM] bottom soft key. Step 3. Use the cursor key to select date field Step 4. -
Page 27: Account Setting
Decreases the second in steps of 1. 6.1.2 Account Setting The AT516 has two accounts, administrator and user. Administrator: All functions can be configured by administrator except <SYSTEM SERVICE> page. User: All functions can be configured by user except < SYSTEM SERVICE> page and <FILE>... -
Page 28: Rs-232 Baud Rate [Baud]
Beep while the comparator sorting result is NG 6.1.4 RS‐232 Baud Rate [BAUD] Before you can control the AT516 by issuing RS-232 commands from built-in RS-232 controller connected via its DB-9 connector, you have to configure the RS-232 baud rate. The AT516’s built-in RS-232 interface uses the SCPI language. -
Page 29: Rs-232 Result Send Mode [Result Send]
FETCH Acquire the test result by sending “FETCH?” command only. AUTO AT516 return the result every EOM <SYSTEM INFO> Page When press the [Meas] or [Setup] key followed by [SYSTEM] bottom soft key, and press [SYSTEM INFO] soft key, the <SYSTEM INFO> page appears. -
Page 30: Handler Interface
In addition, the instrument accepts input of external trigger. You can use these signals to easily integrate the AT516 with a component handler or system controller. This means that you can fully automate such tasks as component inspection, component sorting, and processing of quality management data for higher manufacturing efficiency. -
Page 31: Power Rating
Handler Interface <AT516> /BIN1 Output 0:GD Internal GND 27-28 Internal GND Power Common signal of internal VCC. External GND 29-30 External GND Power Common signal for external DC current External VCC 33-34 Internal VCC Power Internal VCC (5VDC) External VCC (3.3V~35V) -
Page 32: Typical Circuit Diagram Of Handler Interface Output Signals
AT516/AT516L User's Guide JP204 R24 3 EXVCC TRIG U221 P521 JP205 Figure 7‐3 Typical Circuit Diagram of Handler Interface Output signals. EXT.DCV 4.99k OUTPUT GN D... -
Page 33: Remote Control
Select Baud Rate. About SCPI AT516 can use the RS-232 interface or USB interface to communicate with the computer to complete all the instrument functions. About RS‐232C You can connect a controller (i.e. PC and PLC) to the RS-232 interface using Applent RS-232 DB-9 cable. -
Page 34: About Usb-Serial Interface (Option)
AT516/AT516L User's Guide About USB‐Serial Interface (Option) The USB-Serial Interface allows you to connect AT516 to a USB port on your PC. NOTE: Please install the USB-Serial driver before using USB-Serial Interface. The Applent USB-Serial interface model is ATN2. Figure 8‐2 USB‐Serial Interface ATN2 To Select Baud Rate Before you can control the AT516 by issuing RS-232 commands from built-in RS-232 controller connected via its DB-9 connector, you have to configure the RS-232 baud rate. - Page 35 Remote Control RS-232 interfaces. NOTE: AT516 ONLY supports the SCPI Language.
-
Page 36: Command Reference
The common commands are defined in IEEE std. 488.2-1987, and these commands are common for all devices. The SCPI commands are used to control all of the AT516's functions. The SCPI commands are tree structured three levels deep. The highest level commands are called the subsystem commands in this manual. - Page 37 Command Reference ROOT COMmand1 COMmand2 COMmand3 COMmand4 COMmand5 Example: ROOT:COMmand3:COMmand5 ppp ROOT Subsystem Command COMmand3 Level 2 COMmand5 Level 3 Parameter The basic rules of the command tree are as follows. Letter case (upper and lower) is ignored. For example, ROOT:COMMAND3 = root:command3...
-
Page 38: Header And Parameters
AT516/AT516L User's Guide The AT516 accepts the three forms of the same SCPI commands: all upper case, all lower case, and mixed upper and lower case. Header and Parameters The commands consist of a command header and parameters. (See the following.) For example comp:nom 100.0e3... -
Page 39: Display Subsystem
Command Reference COMParator Subsystem CORRection Subsystem TRIGger Subsystem ERRor Subsystem Common Command: IDN? DISPlay Subsystem The DISP Subsystem command group sets the display page. Figure 9‐2 DISP Command Tree DISPlay :PAGE {MEASurement, SETUp, COMParator,SYSTem, SYSTEMINFO(SINF)} :LINE <string> 9.6.1 DISP:PAGE The :PAGE command sets the display page. -
Page 40: Function:range
AT516/AT516L User's Guide measurement range, monitors parameter control. Figure 9‐3 FUNCtion Subsystem Tree FUNCtion :RANGe {Range Number，max，min} :MODE {AUTO,HOLD,NOMinal} :RATE {SLOW,MED,FAST,ULTRA} : COEFficient <float> :REFEr <float> 9.7.1 FUNCtion:RANGe The FUNCtion:RANGe command sets the range. Command Syntax FUNC:RANGe <0-9,MIN,MAX> Parameter Where, <0-9,MIN, MAX> is:... -
Page 41: Function:tc: Coefficient
Command Reference Command Syntax FUNCtion:TC {on,off,1,0} Example SEND> FUNC:TC ON <NL> Query Syntax FUNC:TC? Query Response {ON,OFF} 9.7.5 FUNCtion:TC: COEFficient The FUNC:TC:COEF command sets the material coefficient. Command Syntax FUNCtion:TC:COEFficient {float} Example SEND> FUNC:TC:COEF 0.393 //the unit is % <NL> Query Syntax FUNC:TC:COEF? Query Response {fixfloat} Example SEND>... -
Page 42: Comparator:mode
AT516/AT516L User's Guide Example SEND> COMP:STAT? <NL> RET> 10-BINS <NL> 9.8.2 COMParator:MODE The :COMParator:MODE command sets the limit mode of the comparator function. Command Syntax COMParator:MODE {ABS,PER,SEQ} Parameter Where,{ABS,PER,SEQ} is: Absolute tolerance mode Percent tolerance mode Sequential mode Example SEND> COMP:MODE PER <NL>... -
Page 43: Trigger Subsystem
Command Reference Query Syntax COMParator:BIN? <n> Parameter Where,<n> is: Bin number 1~10 Query Response <float:low limit>,<float:high limit> Example SEND> COMP:BIN? 2 <NL> RET> 1.000000e-00,2.000000E-00 <NL> TRIGger Subsystem The TRIGger subsystem command group is used to enable a measurement and to set the trigger mode. -
Page 44: Fetch Subsystem
AT516/AT516L User's Guide RET> +1.00000E+20,BIN00 //OPEN or OVERLOAD Note This command can be used ONLY in BUS trigger mode. 9.10 FETCh Subsystem The FETCh subsystem command group is a sensor-only command which retrieves the measurement data taken by measurement(s) initiated by a trigger, and places the data into the output buffer. -
Page 45: Error Subsystem
Command Reference Example SEND> SYST:SEND AUTO <NL> Query Syntax SYST:SEND? Query Response <FETCH,AUTO > 9.13 ERRor Subsystem The ERRor subsystem retrieves last error information. Query Syntax ERRor? Query Response Error string Example SEND> ERR? <NL> RET> no error. <NL> 9.14 IDN? The *IDN? query returns the instrument ID. -
Page 46: Specification
AT516/AT516L User's Guide Specification This chapter describes the specifications and supplemental performance characteristics of the AT516： Specifications Dimension Accuracy is defined as meeting all of the following conditions. Temperature: 23℃±5℃ Humidity: 65% R.H. Zeroing: Open and Short Correction Warm up time is 30 min or more. -
Page 47: General Specification
2 readers per second (500ms) Ranging: Auto, Hold and Nominal range. Correction Function: SHORT-CIRCUIT Clear Zero Comparator: Total 13 Bins, 10 bins GD, 3 bins HI/IN/LO <AT516> Beep Feature: OFF/GD/NG Trigger Mode: Internal, Manual, External and Bus Trigger. Built-in Interface: Handler interface, RS232 interface, Temperature Compensation interface. -
Page 48: Dimensions
AT516/AT516L User's Guide 10.3 Dimensions Figure 10‐1 Dimensions @ Instruments -AT516/AT516L User’s Guide- English ©2005-2015 Applent Instruments Inc.
