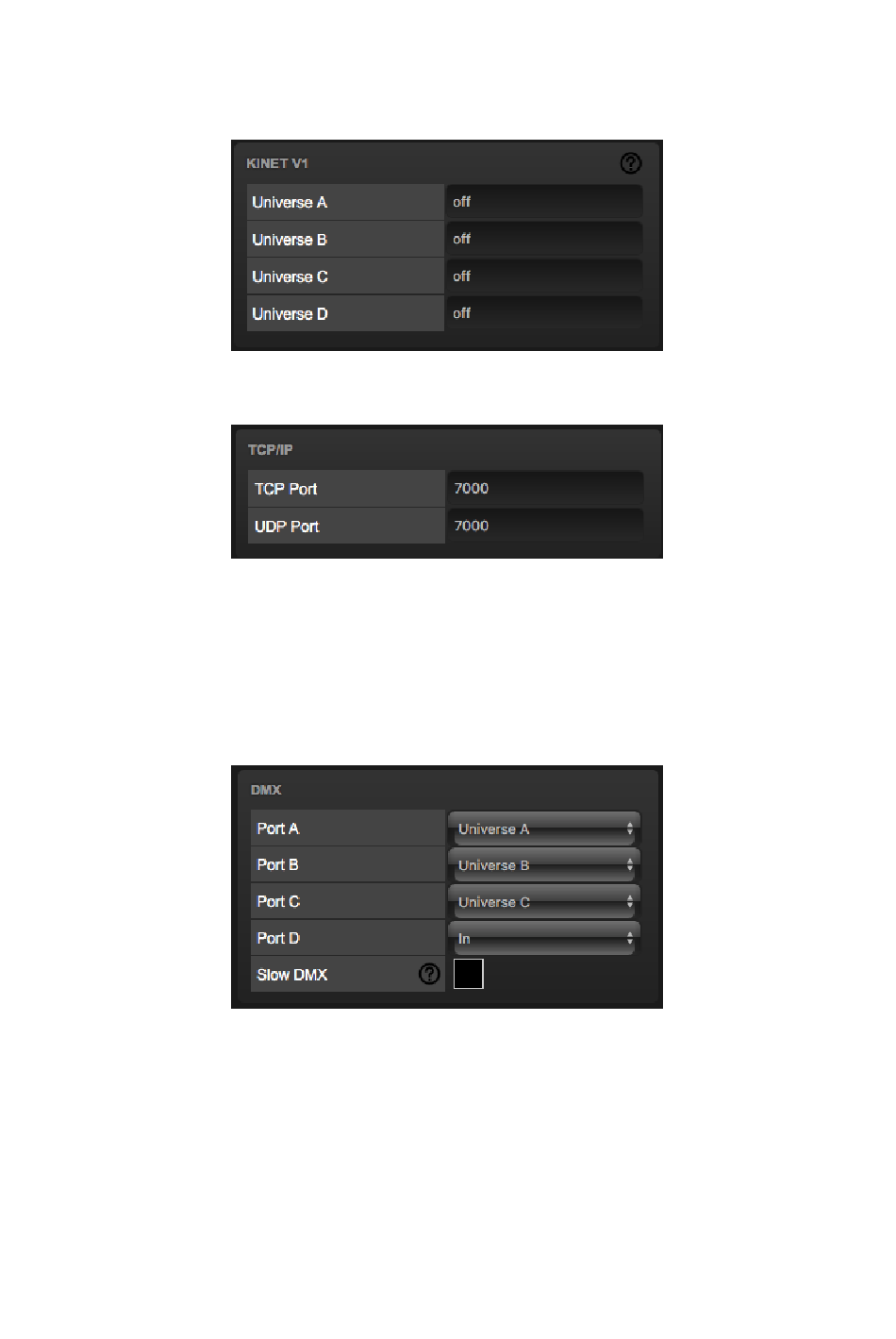

Figure 12.9: Kinet Settings
Figure 12.10: TCP/IP settings
12.10 DMX
The DMX settings specify wether a DMX port is input or output. Select 'Uni-
verse X' to set it to output.
Figure 12.11: DMX settings
When the 'Slow DMX' checkbox is enabled, the QuadCore will slowdown the
rate at which it sends out DMX from its ports. This is done to facilitate DMX
fixtures that have difficulties keeping up with the optimal DMX transmission
rate.
When programming a show that does not use all DMX universes it can be useful
to set multiple DMX ports to the same universe. This can make cabling more
