Visual Productions QuadCore Manual page 27

4. Configure the recording

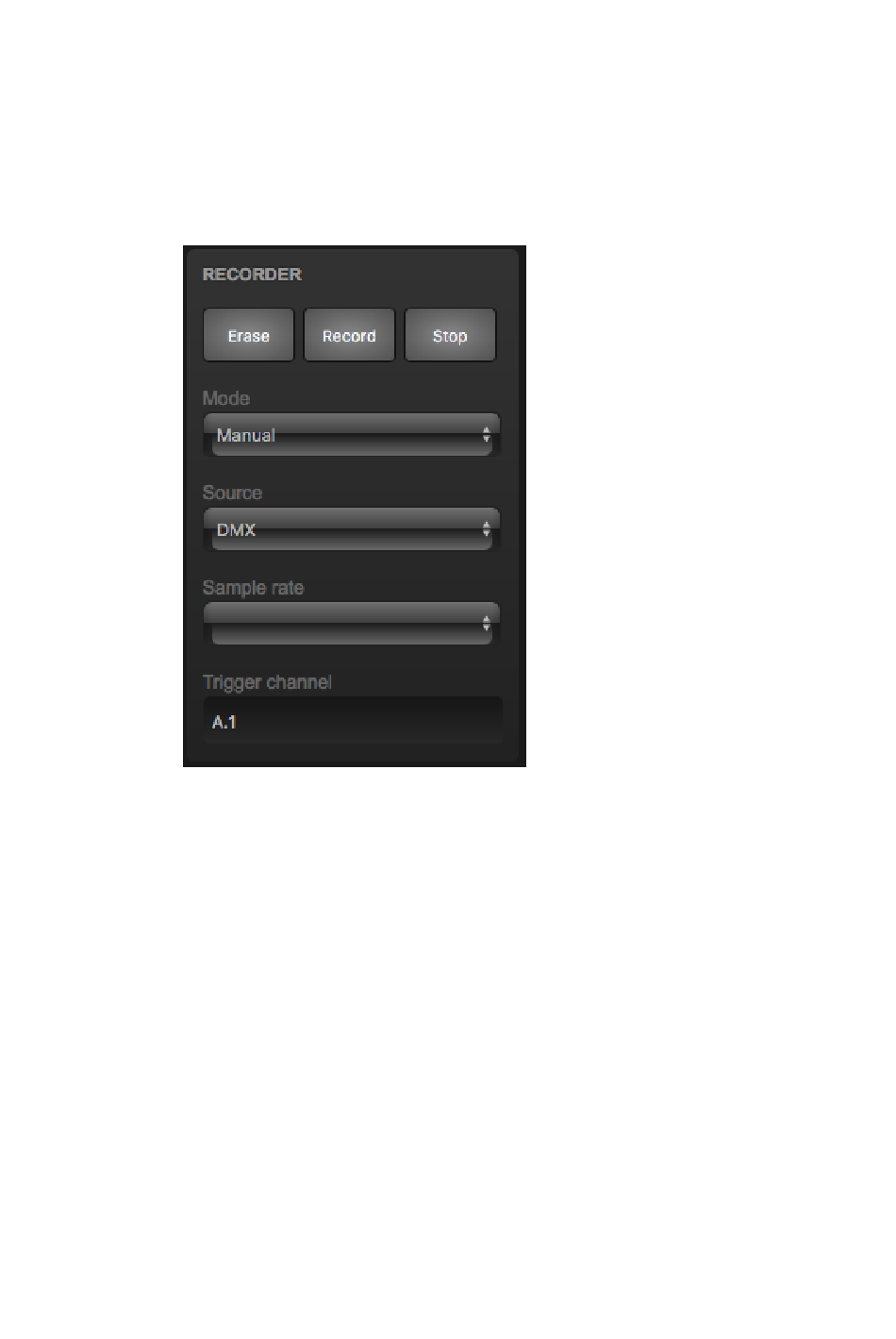

Go to the Track page. Select the first track and press the Erase button.
Wait until the erase process is completed. Set Mode to Manual. Set
Source to DMX and set Sample rate to 40 FPS.
5. Record
Press the Record button at the begin of the console's show. Press the
Stop button when the show is finished.
6. Test the result
Make sure the console outputs only zero values. Then playback the track's
content by enabling the Track Preview checkbox.
3.4 Configure as Art-Net Node
The QuadCore is capable of sending and receiving various data protocols. This
tutorial shows you how to receive Art-Net, and transmit the data through the
DMX ports on the QuadCore.
27
