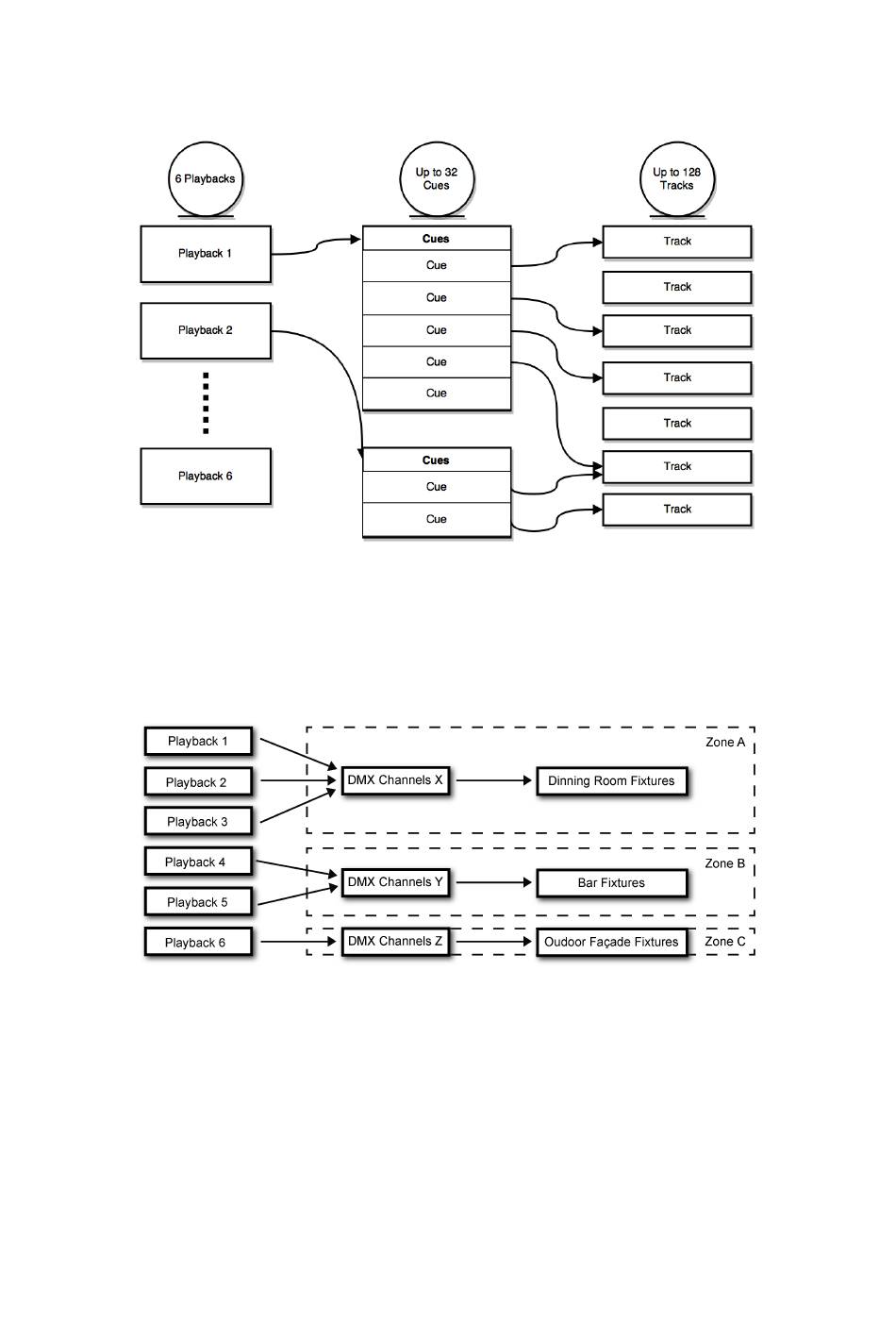

Figure 8.2: Playback structure
playbacks and have them merged together. Also, it is possible to have each play-
back control a different set of DMX channels; making each playback responsible
for a different zone. Figure 8.3 shows an example of controlling multiple zones
in a hypothetical restaurant.
Figure 8.3: Playbacks controlling zones in a restaurant
8.1
Precedence
All active Playbacks produce DMX values. These values will be merged to-
gether and sent to the DMX output. The precedence setting determines how
this merging is done. Each playback can be set to either HTP (Highest Takes
Precedence), LTP (Latest Takes Precedence) or Priority.
49
