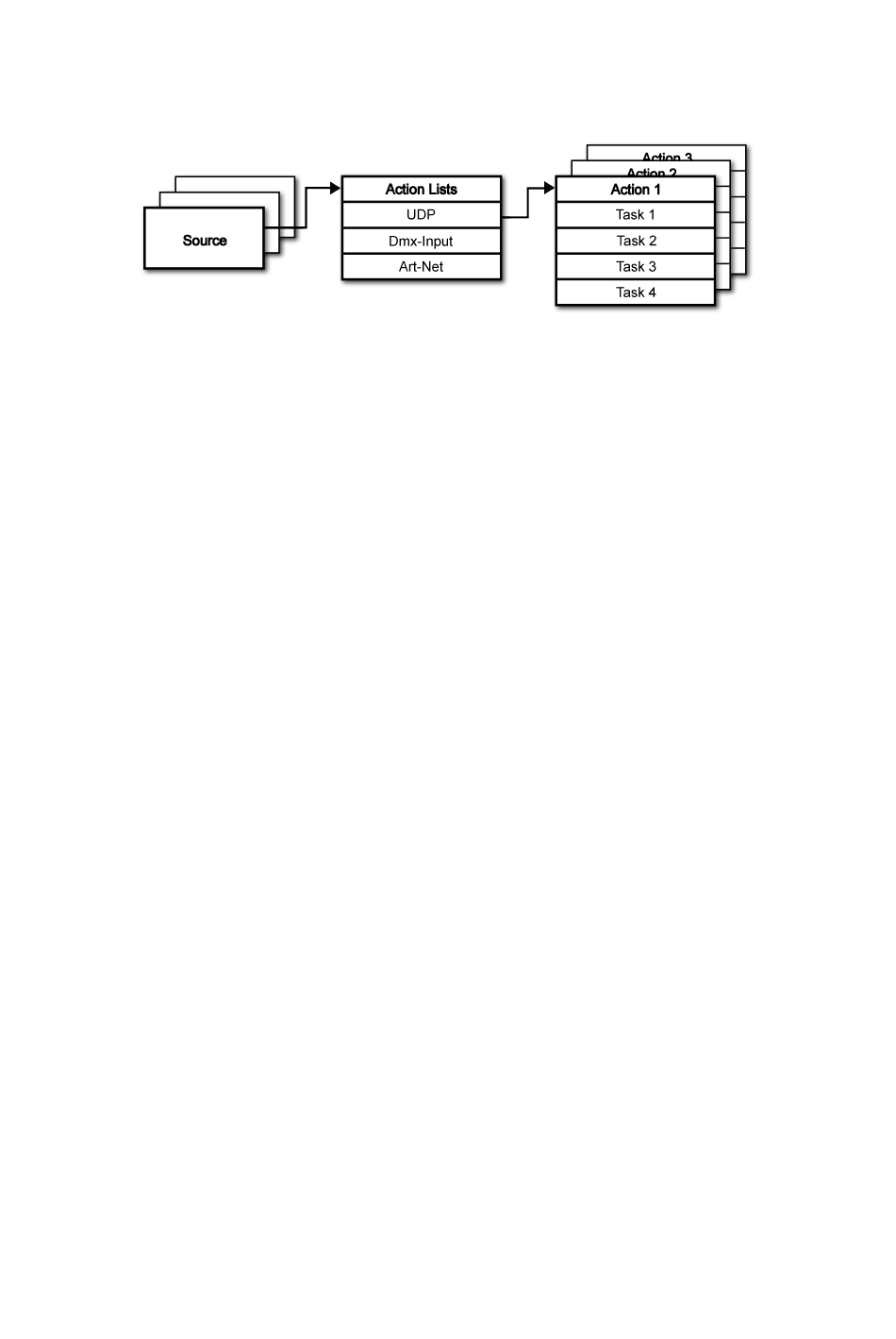

Figure 9.2: Show Control structure
The QuadCore is capable of listening to various protocols. These available
protocols are listed in Sources, however, the QuadCore can only actively listen
to 8 protocols at once. The active protocols are listed in Actionlists. Each
action list can contain actions. Within a protocol/source each individual sig-
nal requires its own action. For example, when listening to channel 1 and 2 on
the incoming DMX, the DMX action list needs two actions; one for each channel.
Inside the action we define the trigger and tasks. The trigger specifies for which
signal to filter. In the above DMX example the trigger would be set to 'channel
1' and 'channel 2' respectively. The tasks determine what the QuadCore will
do when this action is triggered. Several tasks can be placed in the action.
There are tasks available for a wide range of QuadCore features and external
protocols. Task types are detailed in Appendix B on page 96.
Please consult the API appendix on page 105 before implementing incoming
OSC or UDP messages; the API already exposes typical functionality through
OSC and UDP and therefor it might not be necessary to implement custom
messages.
9.1 Sources and Actionlists
The Sources listing presents all protocols that the QuadCore is capable of receiv-
ing. It also includes internal features that can create events that can be used for
triggering actions, such as the calendar-scheduler. These sources are available,
however, they will only be actively listened to once moved to the action-list table.
