Visual Productions QuadCore Manual page 31

4.2 Rackmount
There is an adapter available for mounting the QuadCore into a 19" rack . The
rackmount adapter is 1 HE and is sold separately. It fits two units, however, it
is supplied with one position closed by a blind panel, see figure 4.2.
4.3 Kensington Lock
The device can be secured by using a Kensington style laptop lock.
4.4 Power
The QuadCore requires a DC power supply between 9 and 12 Volt with a min-
imum of 500mA. The 2,1 mm DC connector is center-positive. The QuadCore
is also Power-over-Ethernet (PoE) enabled. It requires PoE Class I.

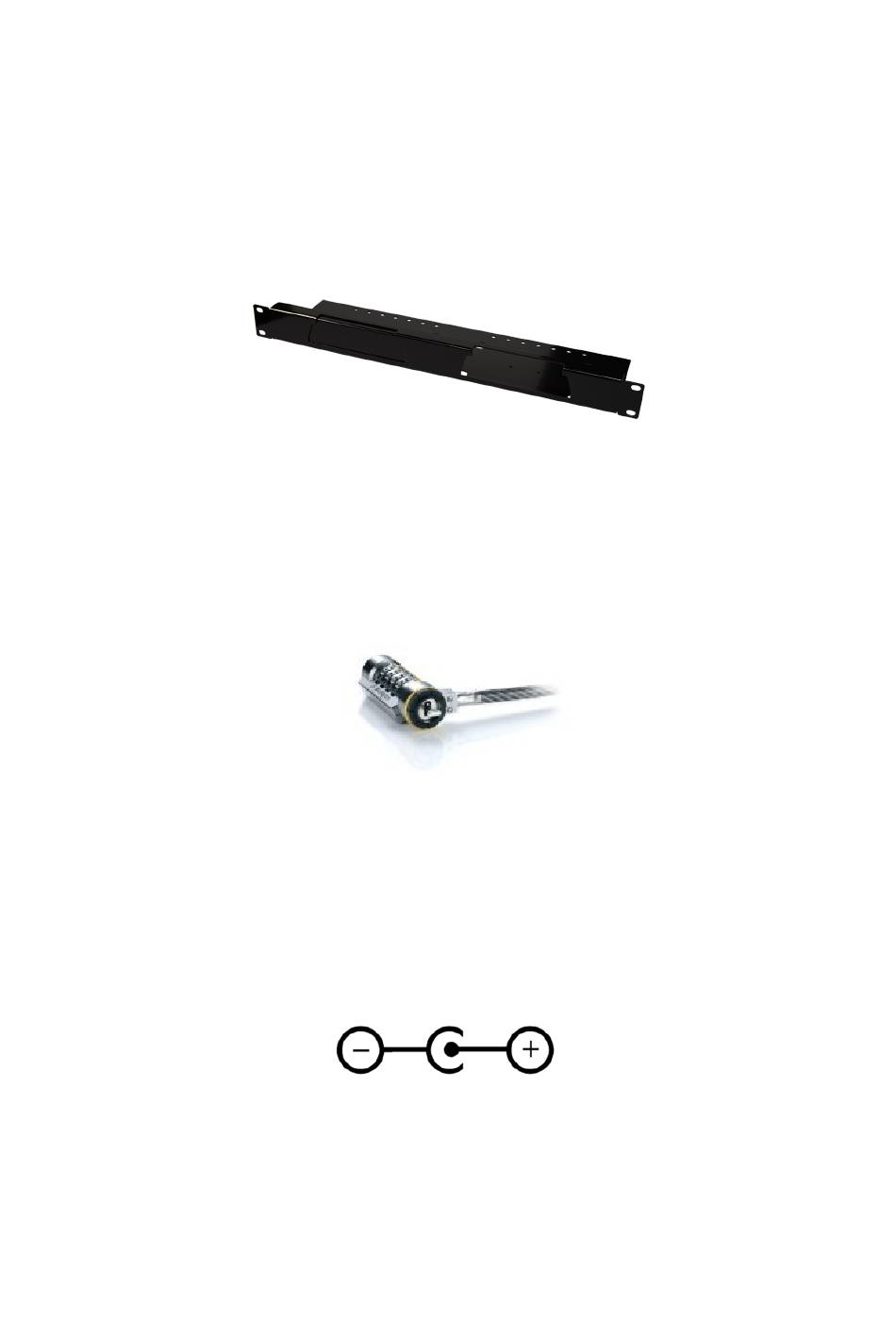

Figure 4.2: Rackmount adapter
Figure 4.3: Kensington lock
Figure 4.4: DC polarity
31
