7.2 Track Properties
The Track listing (See figure 7.1) displays the following track properties:
Label The name of the track; this field can be changed by
double-clicking.
Size The number of bytes used by the data inside the track. The
maximum size is indicated at the top of this column. This
maximum depends on the 'number of tracks' selected in the
Settings page.
Duration The length of the track displayed in
hours:minutes:seconds.milliseconds.
FPS The sample rate of the track displayed in Frames Per Second
(FPS). The sample rate has been chosen during the recording
process and cannot be altered afterwards.
7.3 Console
The Console page (see figure 7.2) allows to edit a track directly through the
web-interface, however, a track does need to be a static scene; it should only
contain a single DMX frame. If the track already contains more than one DMX
frames and thus it is a dynamic track, then it can be made static by erasing it.
The track can be edited by selecting the track in the table and then pressing

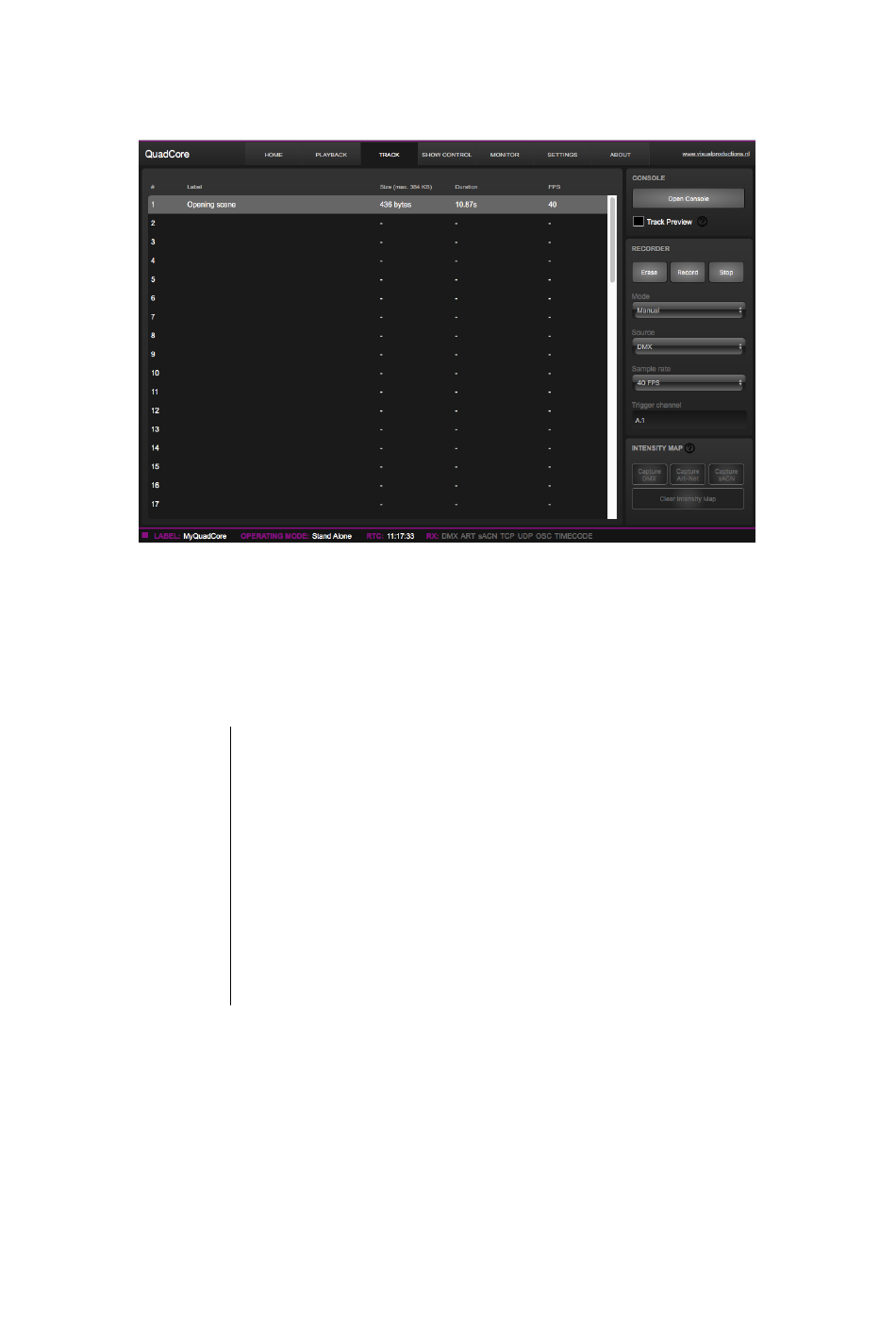

Figure 7.1: Tracks
