Visual Productions QuadCore Manual page 73

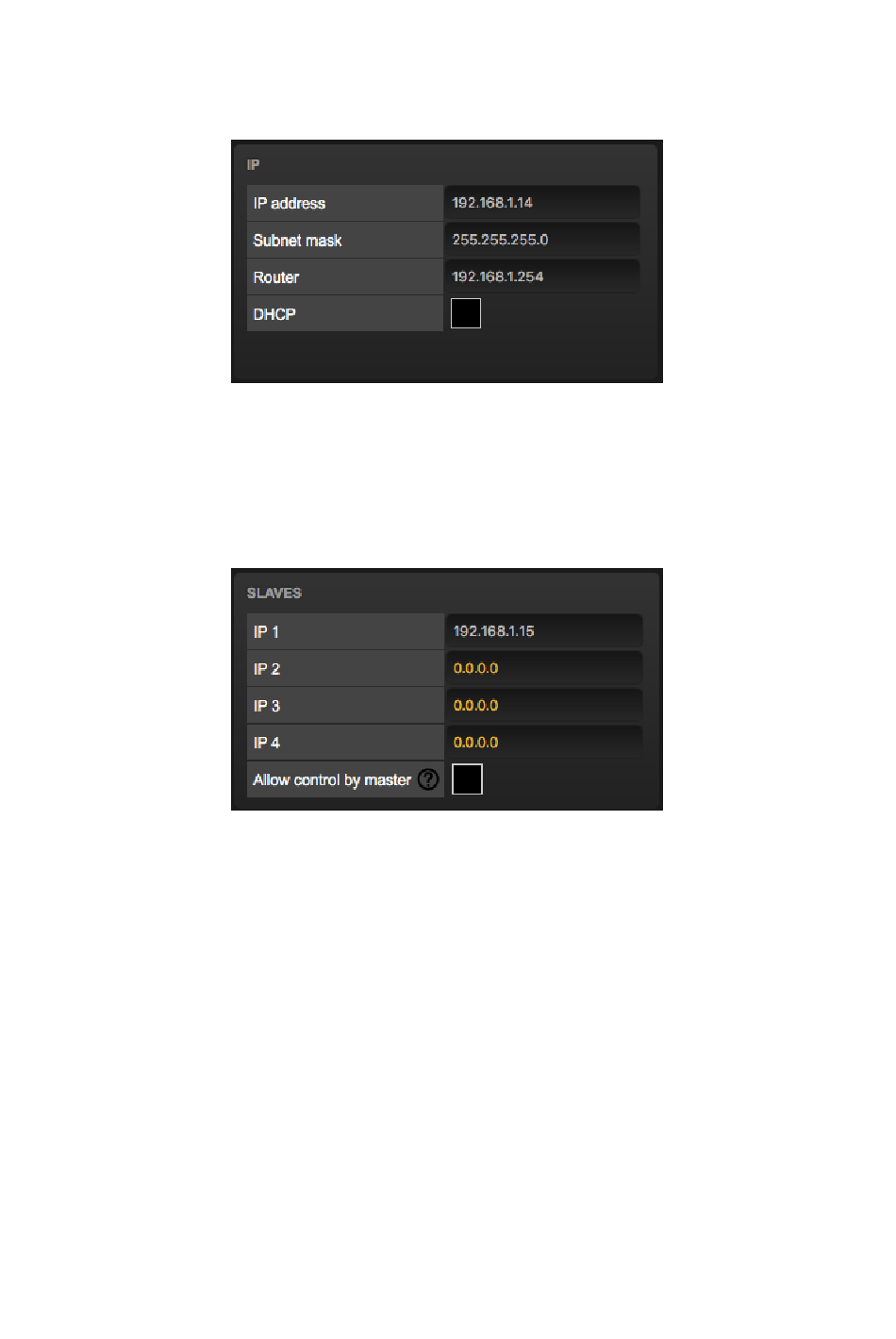

Figure 12.3: IP Settings
12.3 Slaves
This section enables the master-slave synchronisation.
Figure 12.4: Slaves Settings
The master-QuadCore should specify the IP addresses of its slaves. When the
IP is indicated in white then the master-slave connection is established, other-
wise the IP is indicated in orange. For creating a system with more than four
slaves, a broadcast IP can be set. A message sent to a broadcast address may
be received by all network-attached hosts. A typical broadcast IP address is
192.168.1.255, however, this depends on the subnet used.
The slave-QuadCore units require the 'Allow control by master' checkbox to
be enabled. Enabling 'Allow control by master' checkbox will cause playback
data to be overwritten.
