I I I I I Network Connection
Connect signal wires (N2+) to terminal 68 and (N2-)
to terminal 69 on main control board of the drive.
(See figure below.) It is highly recommended to use
shielded, twisted-pair cables to reduce the
differential mode interference between the
conductors. Observe standard shielding practice by
grounding the shielded wiring (S) at only one point in
the system. The Metasys reference wire (REF) may
be connected to terminal 70, but this is not
necessary.

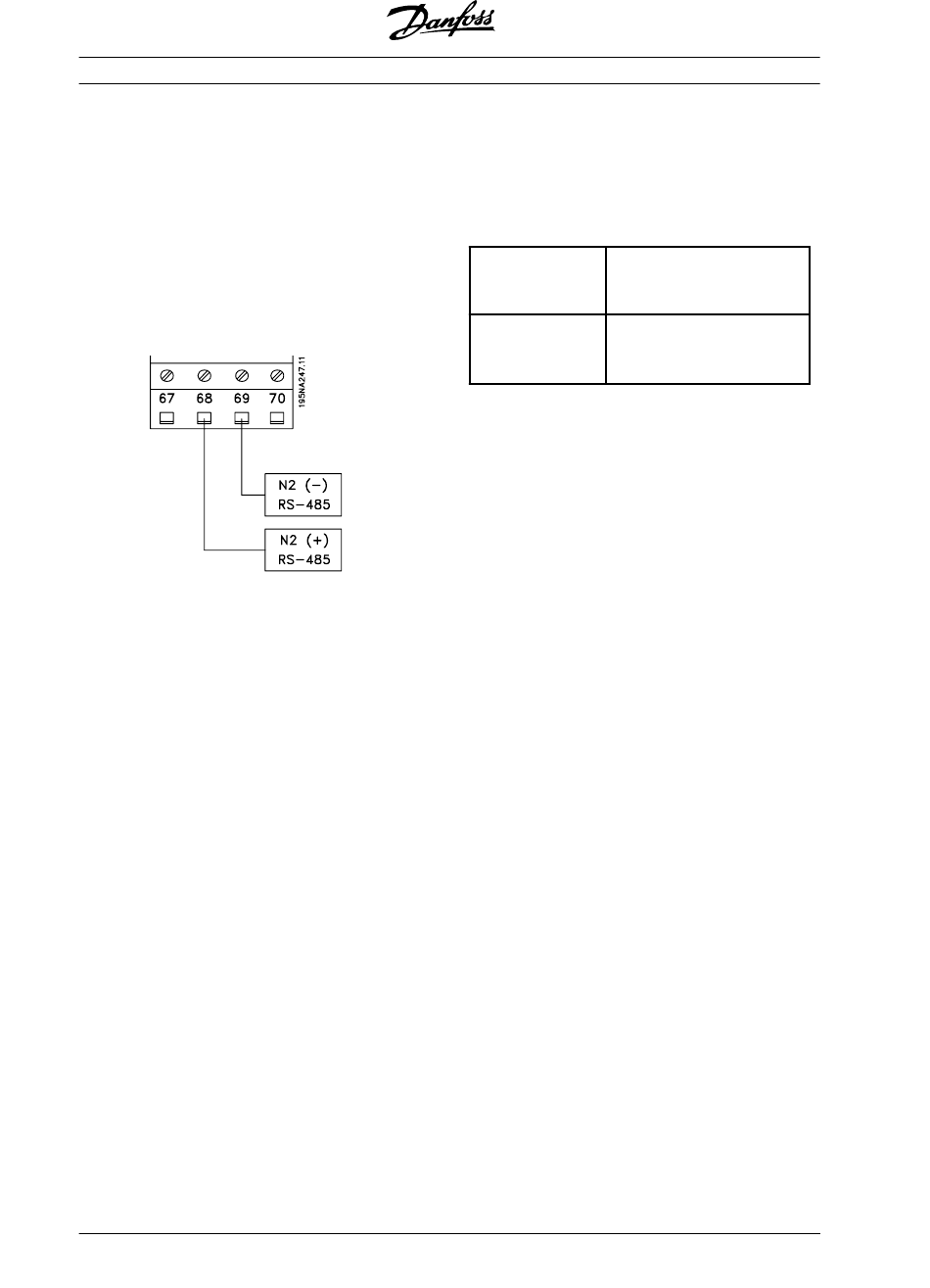

Figure 1. Network Connection
6
VLT ® 2800 Metasys N2
I I I I I Control Wiring and Terminal Tightening
Torque Specifications
Terminal tightening and control wire specifications
are defined in the table below.
o T q r u e S p e c s 4 5 .
1 8
C o n r t l o W i e r w t
s h
