Bill of Materials
A (1) Portable Base Assembly
B (1) H-Frame Backboard Mount
(2 long, 2 short)
C (4) Bboard Brace
D (1) Set of Base Padding
E (16) 5/16"x 1" Mach. Screw
F (2) 5/16"x 2 1/2" Mach. Screw
G (18) 5/16" Flatwasher
H (18) 5/16" Lockwasher
First Team Sports, Inc | Thunder
I (10) 5/16" Hex Nut
J (1) 3/8"x 1
K (2) 3/8" Flatwasher
L (1) 3/8" Lockwasher
M (1) 3/8" Hex Nut
N (1) Set of Rim Height Stickers
O (2) Padding Spacers
P (4) 3/8"x 2 1/2" Hex Bolt
" Hex Bolt
Advertisement
Table of Contents
Related Manuals for FIRST TEAM SPORTS Thunder Portable Series
Summary of Contents for FIRST TEAM SPORTS Thunder Portable Series
- Page 1 First Team Sports, Inc | Thunder Bill of Materials A (1) Portable Base Assembly I (10) 5/16" Hex Nut B (1) H-Frame Backboard Mount J (1) 3/8"x 1 " Hex Bolt (2 long, 2 short) K (2) 3/8" Flatwasher C (4) Bboard Brace D (1) Set of Base Padding L (1) 3/8"...
- Page 2 1. Remove portable base from shipping pallet. For your convenience your Thunder portable basketball goal has been 95% pre-assembled. 2. Remove both side covers from base of unit and install ballast. WARNING!! Failure to install minimum required ballast may result in serious injury! A minimum 700 lbs. of counter balance weight is required in the ballast compartment furthest back on the unit.
- Page 3 rim instead of the 3/8"x 2" bolts provided in the rim box. (Follow rim attachment instructions provided in rim box) Leave rim bolts finger tight for now, DO NOT TIGHTEN RIM HARDWARE YET! 10. Level the backboard & rim. First, make sure the base of the unit is sitting on a level surface and also make sure the base is resting on the footpads in front.

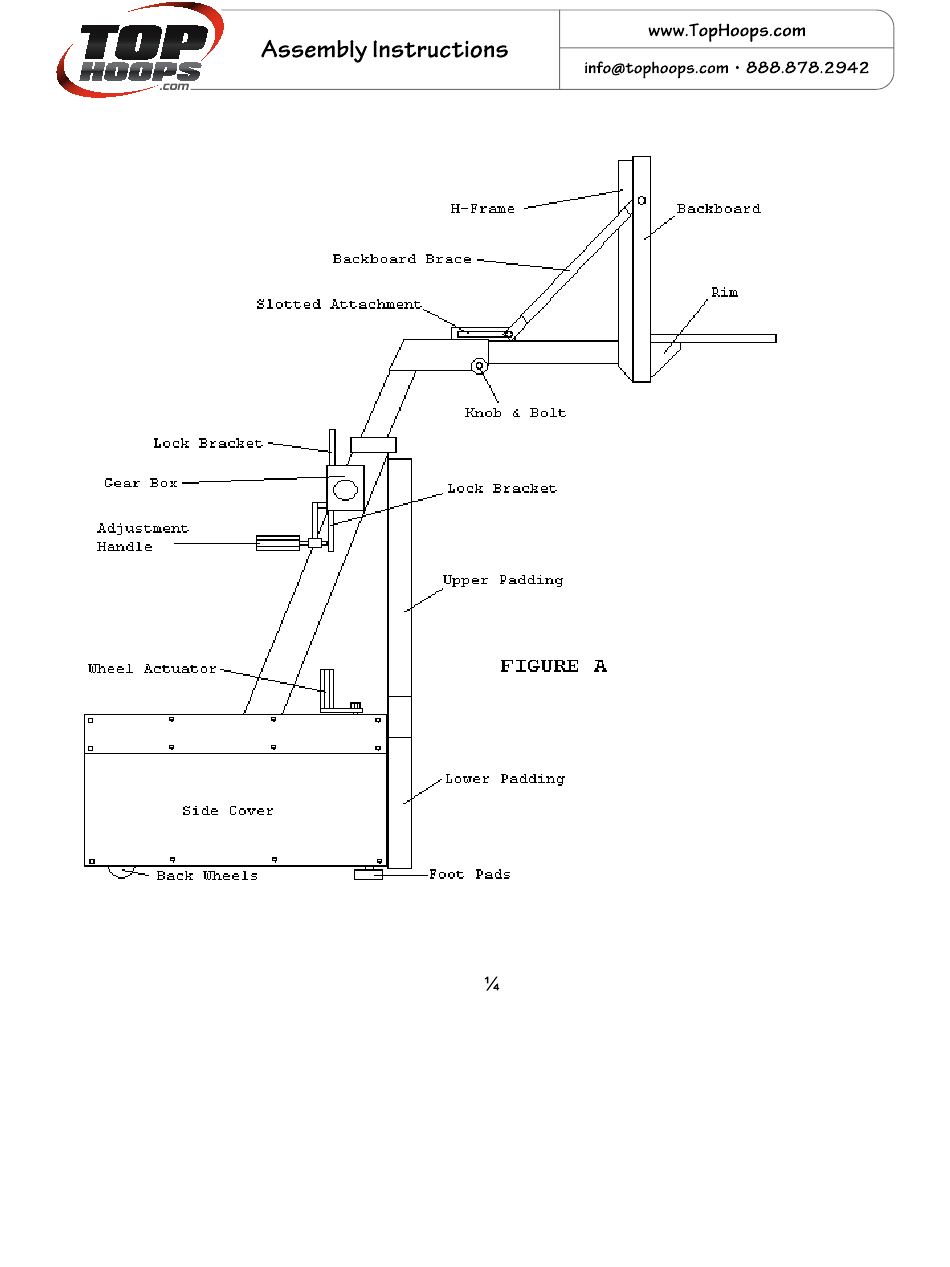

- Page 4 be positioned next to the Rack welded on the backside of the InnderBoom. Measure the rim height at each position with a measuring tape and apply the appropriate sticker using the intersection between the Inner Boom and the Outer Boom as a reference point. (See Figure A) 19.
- Page 5 Maintaining Your Thunder Portable Goal Though your Thunder portable goal is designed and coated to withstand the elements, it is not advisable to leave the goal system outdoors for extended periods of time. If this cannot be avoided follow these steps to increase the life of the unit. 1.
