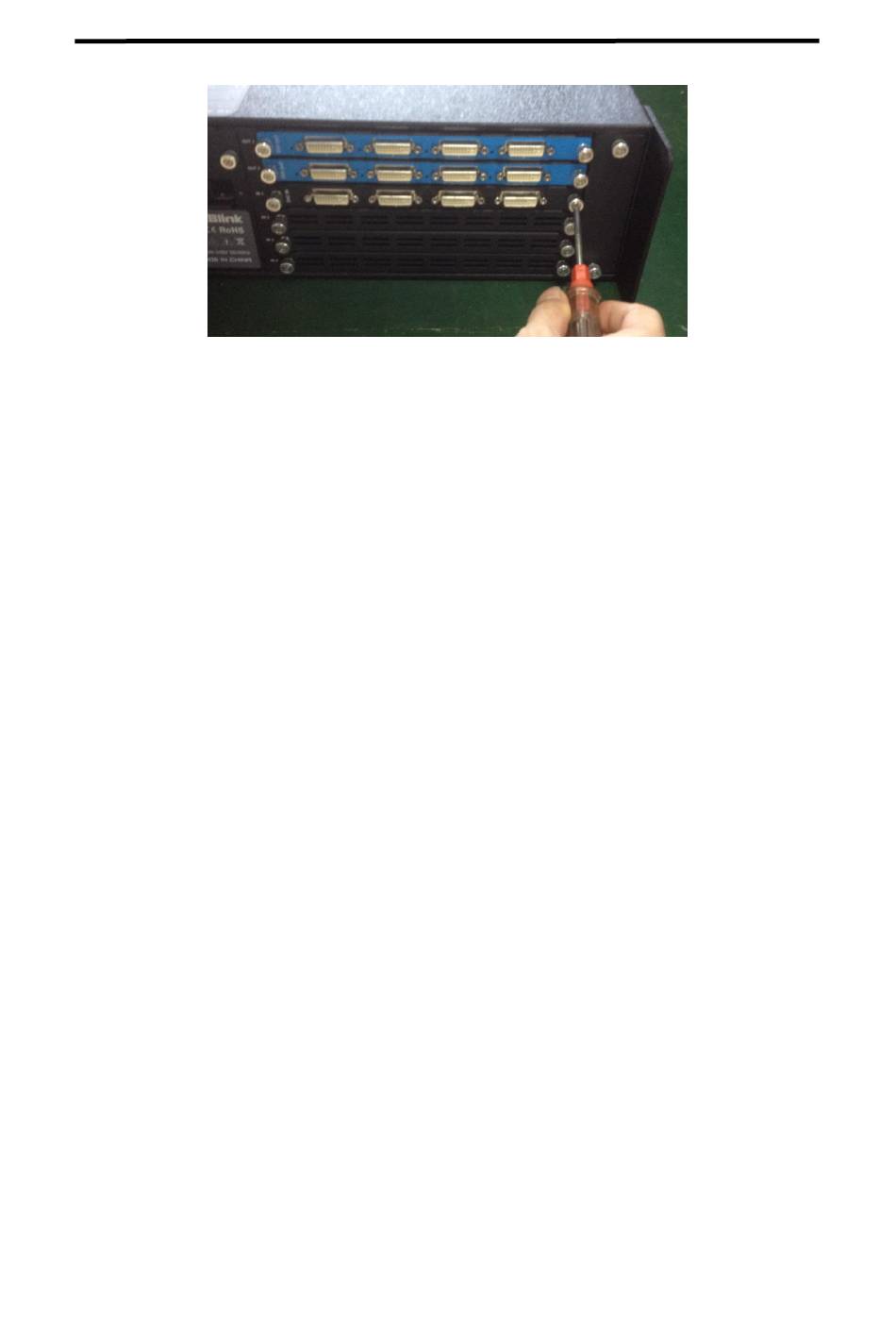

Note: The install steps of output module installation and input/output module replacement
are the same as above.
6.3 Terms & Definitions
●RCA: Connector used primarily in consumer AV equipment for both audio and video.
The RCA connector was developed by the Radio Corporation of America.
●BNC: Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named
for its inventors). A cylindrical bayonet connector that operates with a twist-locking motion .
●CVBS: CVBS or Composite video, is an analog video signal without audio. Most commonly CVBS
is used for transmission of standard definition signals. In consumer applications the connector is
typically RCA type, while in professional applications the connector is BNC type.
●YPbPr: Used to describe the colour space for progressive-scan. Otherwise known as component
video.
●VGA: Video Graphics Array. VGA is an analog signal typically used on earlier computers. The signal is
non-interlaced in modes 1, 2, and 3 and interlaced when using in mode.
●DVI: Digital Visual Interface. The digital video connectivity standard that was developed by
DDWG (Digital Display Work Group). This connection standard offers two different connectors:
one with 24 pins that handles digital video signals only, and one with 29 pins that handles both
digital and analog video.
●SDI: Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate.
Video pixels are characterized with a 10-bit depth and 4:2:2 color quantization. Ancillary data is
included on this interface and typically includes audio or other metadata. Up to sixteen audio
channels can be transmitted. Audio is organised into blocks of 4 stereo pairs. Connector is BNC.
●HD-SDI: High-definition serial digital interface (HD-SDI), is standardized in SMPTE 292M this provides
