In videowall mode, there are max 16 image in the output interface, group of two outputs,
one output module can display 8 images.
Split Mode: Default quick split "OFF". User can enable the quick split function by sliding
the switch to "ON". LED type and LCD type can also be selected by sliding the monitor
type switch, specific as follows:
LED Type: Default LED type. In LED type, user can select equal type and unequal split
type.
Equal Type: User can custom the H total, V total, row and column, for example, set H total
as 7680, V total as 4320, Row and Column as 4, as shown in the figure below:

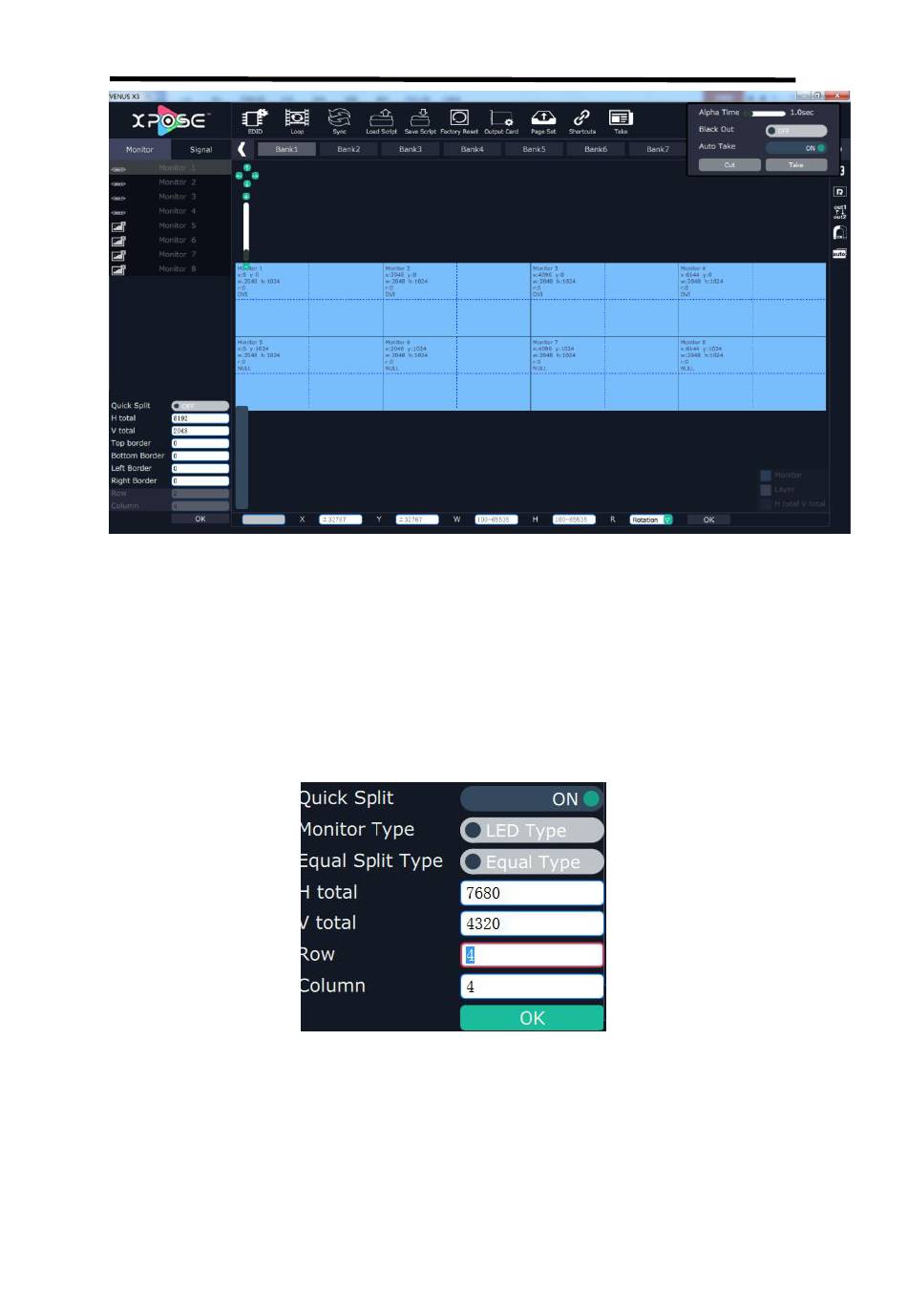

The layout is shown in the figure below:
