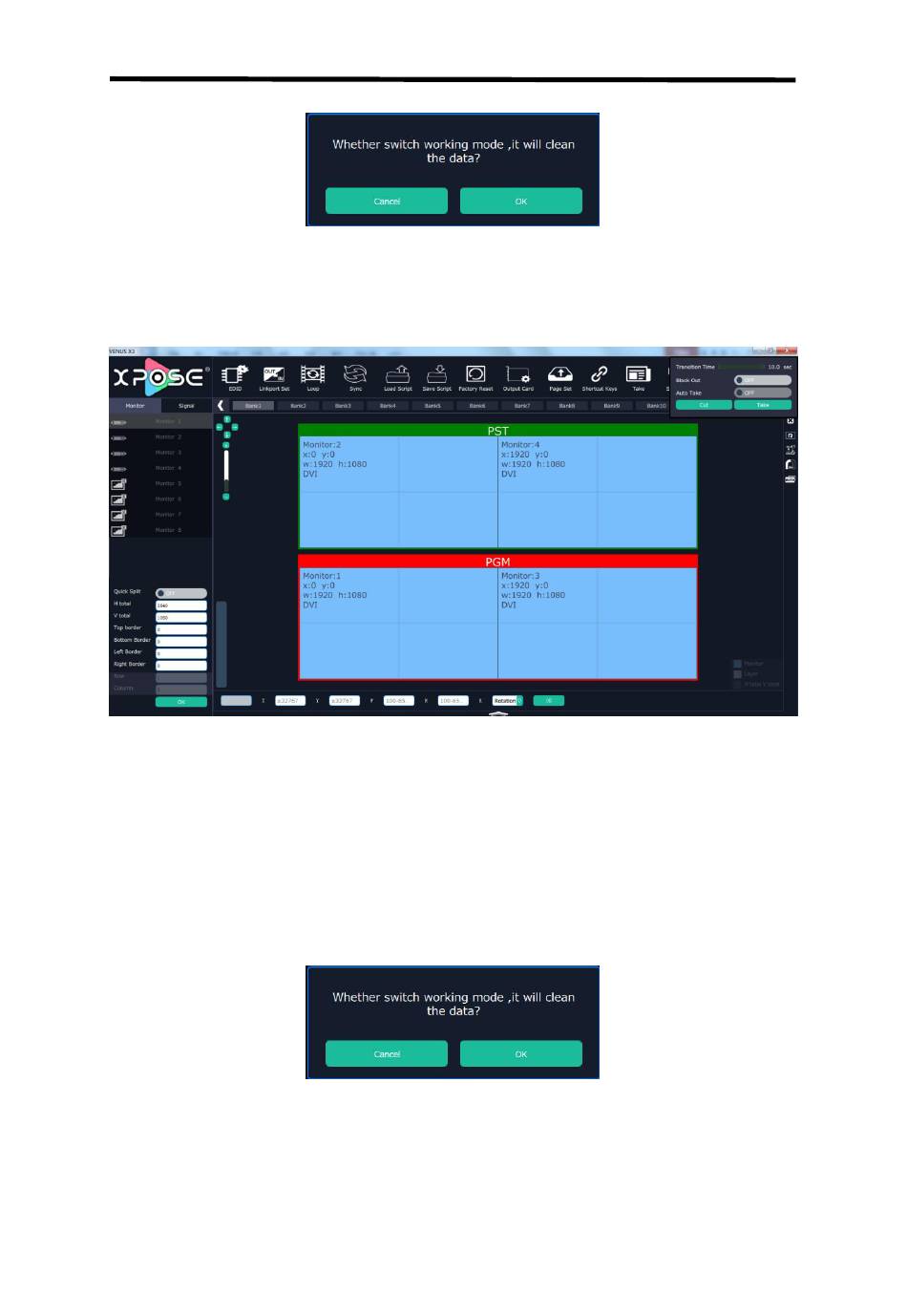

Click the "Link Mode", and pop-up window as follows:
Click "OK", the system will synchronize the data, and it will finish about 5 seconds later,
click "OK", it will enter the interface as follows:
The link mode can achieve 5 pictures to 5 pictures seamless switching. It needs to
connect output 6 and output 8 to the inputs ports that support for same signal, for instance,
if output 6 is DVI connector, then link it to DVI input or HDMI input via adapter; if it is HDMI
output, link it to HDMI input or DVI input via adapter; but if it is SDI output, link only to SDI
input.
3D-Mode
Click the "3D-Mode", and pop-up window as follows:
Click "OK", the system will synchronize the data, and it will finish about 5 seconds later,
click "OK", it will enter the interface as follows:
