the
figure below:
User can also scale or crop the layer.
4K Input Set

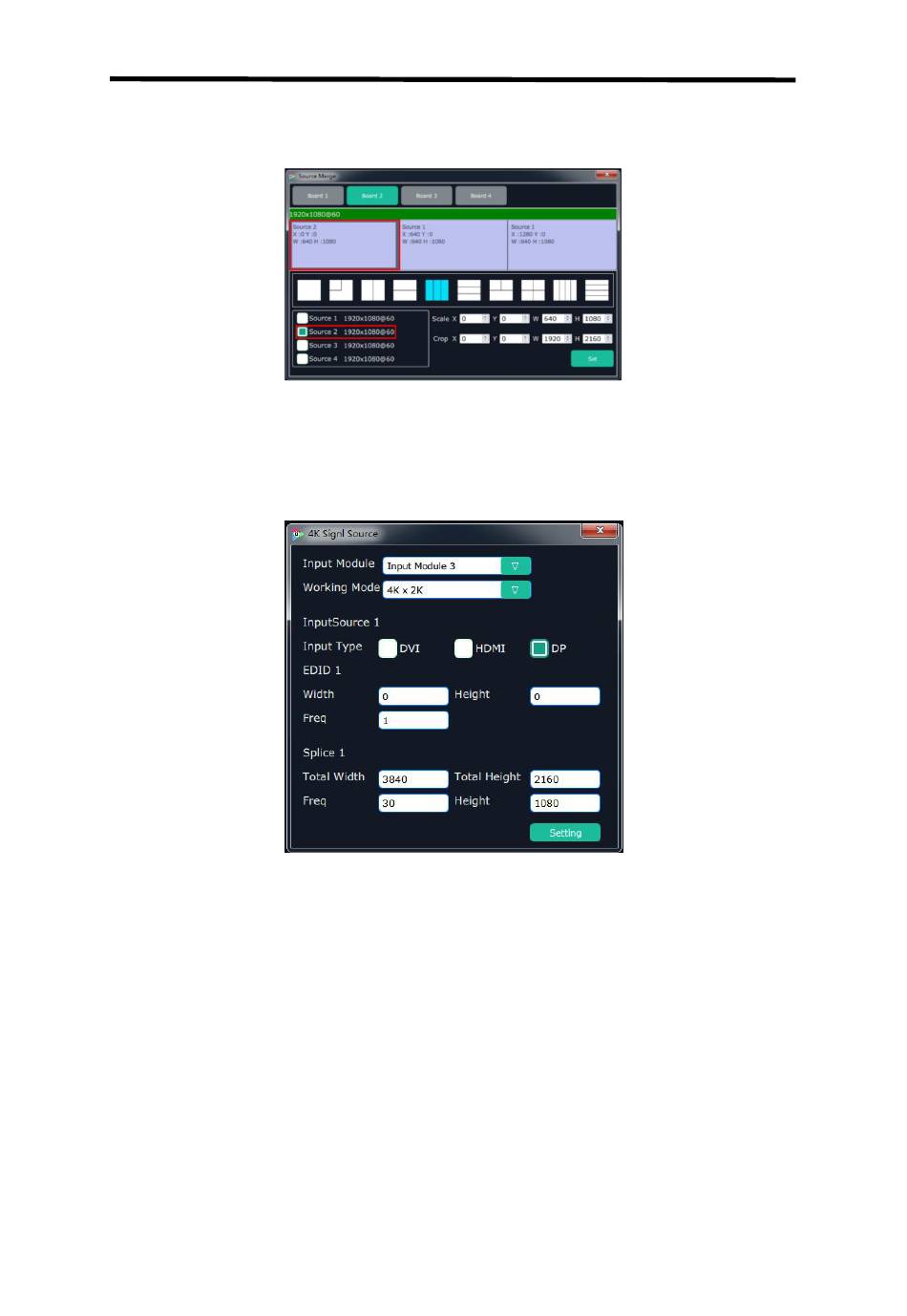

Click the "4K Input Set", and pop-up window as follows:
Input Module: Click the pull down arrow to select the 4K input module.
Source:
1. If select 4Kx2K, user can only select one source from source 1 (select one among DVI,
HDMI and DP).
2. If select 4Kx1K, user need to select each one source from source 1 and source 2 (the
two sources can be same or different, for example, DVI and DVI, DVI and HDMI).
3. If select 2Kx1K, user need to select each one source from source 1 and source 2 (the
two sources can be same or different, for example, DVI and DVI, DVI and HDMI).
4. Click "Set" after select the working mode.
4K Group
1. Connect the 4K input board, and select the working mode, for example, select 4K×1K,
