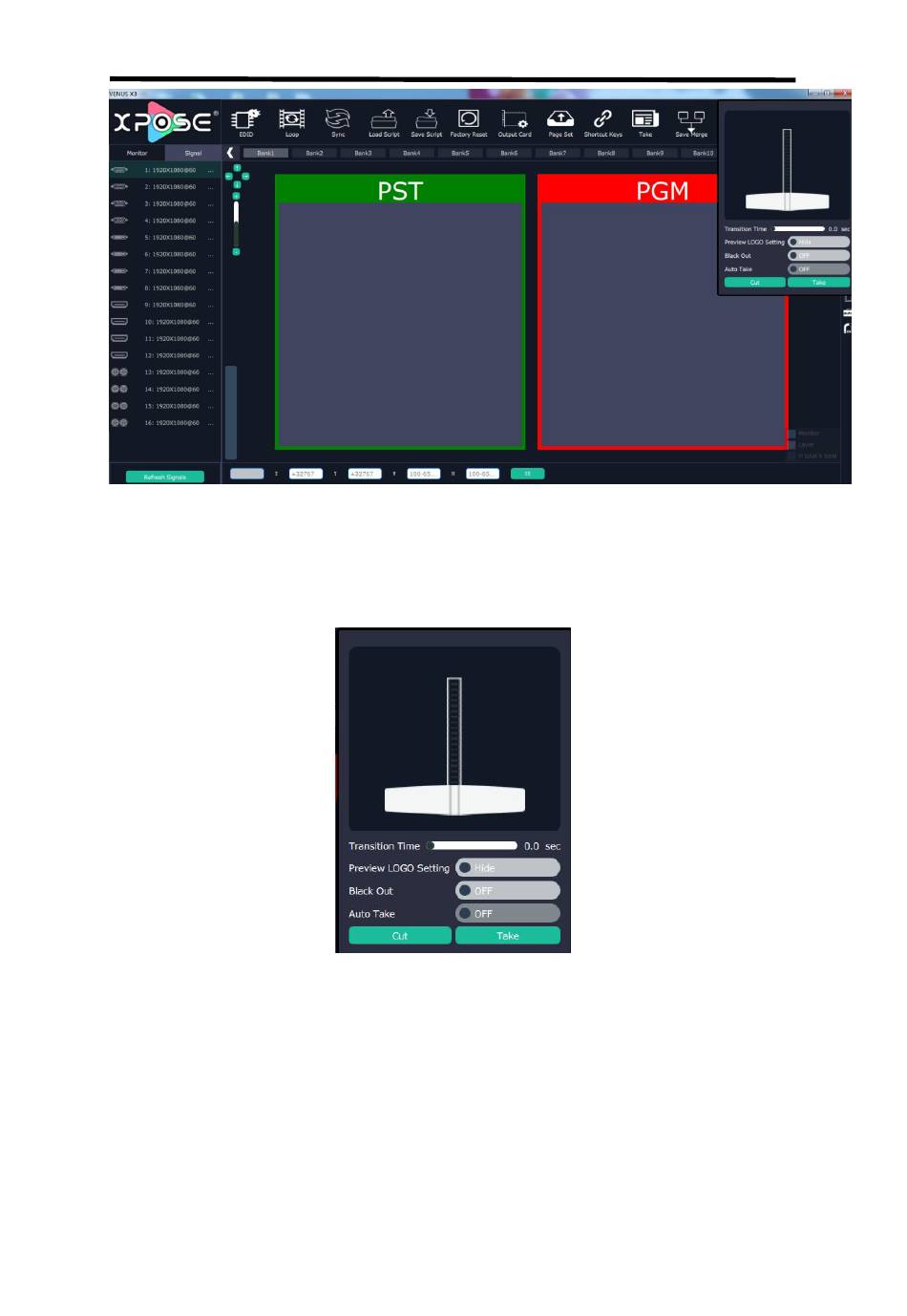

In preview mode, Default outputs 2.4.6.8 as preview channel and outputs1.3.5.7 as
program channel.
All scene settings are done in PST and display on preview monitor. Users can drag the
signal from the singal list to PST and when the scene setting is finished. Use the virtual
T-Bar to switch the display to PGM.
Transition Time: Users can slide the bar to set the transition Time, rang from 0-10s
Preview Logo Setting: Hide or Display the "Preview" logo on the preview monitor.
Black Out: On or Off
Auto Take: doesn't work under Preview Mode
CUT:switch PST to PGM display instantaneously
Take:swtch PST to PGM in transition time.
Link Mode
