RGBlink X3 User Manual page 46

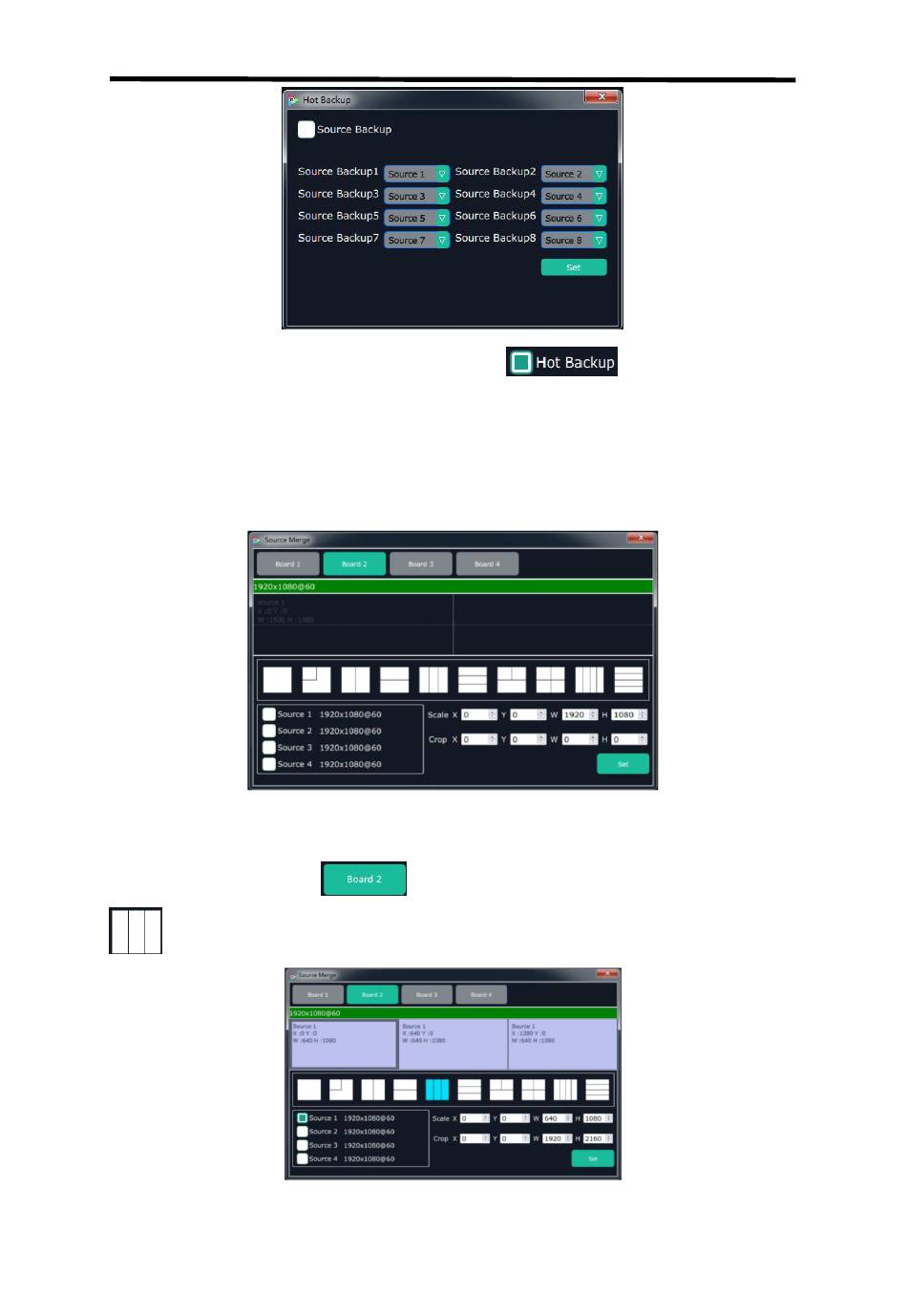

Enable the hot backup function, as shown in figure , and set the backup
signal for Hot Backup 1 to Hot Backup 8. It will switch to the backup signal if the signal is
interrupted.
Source Merge
Click the "Source Merge", and pop-up window as follows:
The DVI and S-HDMI input optional module support signal merger. Click any valid input
board, for example, select , then select the merger mode, for example, select
, as shown in the figure below:
Click any layer, then click any source, and the layer source can be switched, as shown in
