1.5 Analog outputs (option)

The device can be equipped with 8 analog outputs (4 mA - 20 mA).

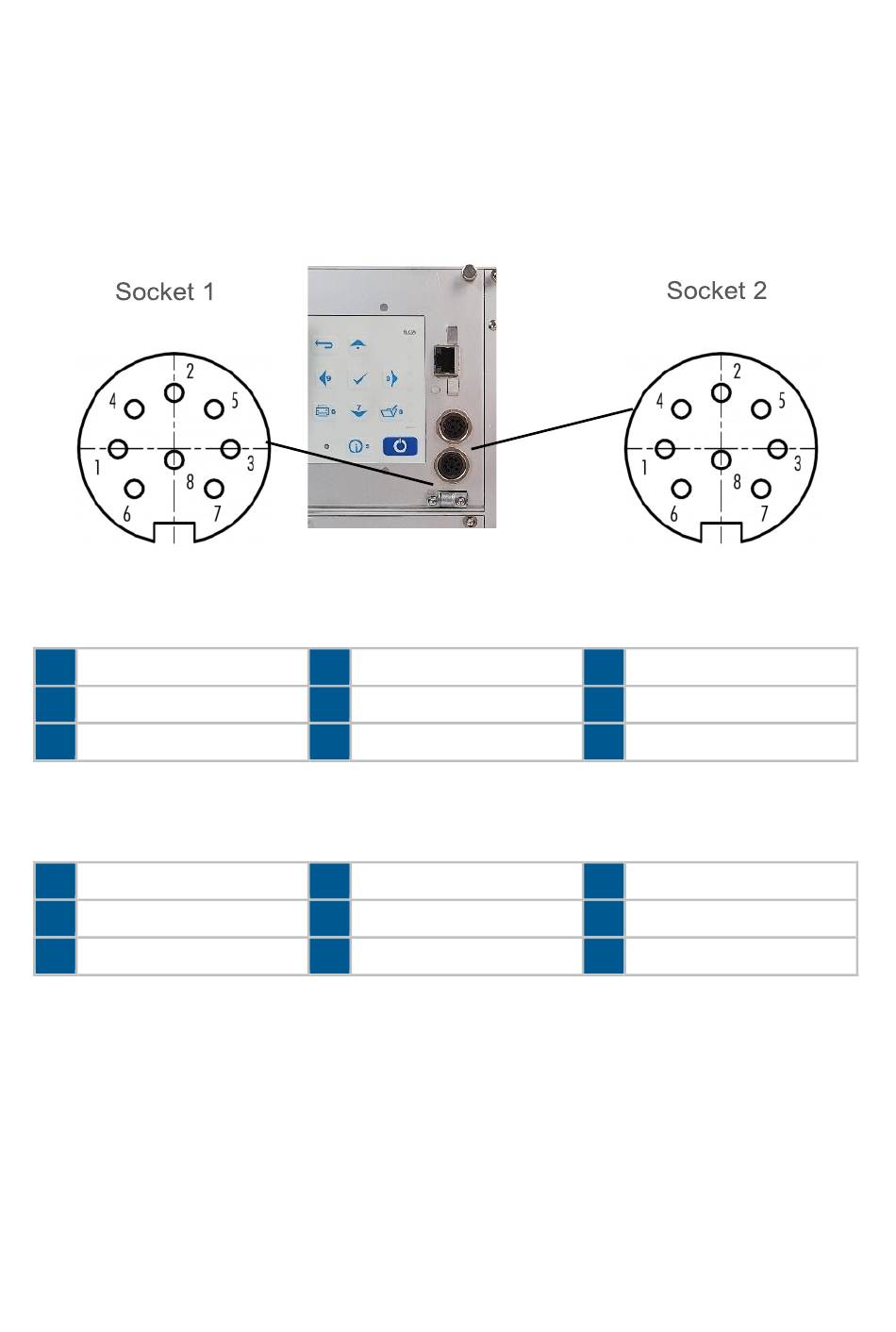

Channels 1 to 4 are available at socket 1 (lower socket) (see pin
assignment socket 1). Channels 5 to 8 are available at socket 2 (upper
socket) (see pin assignment socket 2).
Pin assignment socket 1
1 GND channel 4
2
Signal channel 4
3
GND channel 3
Pin assignment socket 2
1 GND channel 8
2
Signal channel 8
3 GND channel 7
Each channel can be assigned a measurement or calculation variable
with free scaling (see chapter "Configuring the Analog outputs").
16
4 Signal channel 3
5
GND channel 2
6
Signal channel 2
4 Signal channel 7
5
GND channel 6
6 Signal channel 6
7 GND channel 1
8
Signal channel 1
7 GND channel 5
8
Signal channel 5
