3. CONFIGURATION

The easiest way to configure the SNMP/WEB Interface is running EzSetting, you can find the software in the CD. Please see below
sub-section for more information.
If you have configured the essential network parameters successfully, you can launch the internet browser or telnet to the device
which you just assigned to do detail configuration. The first thing is to open the User Manager page and change your accounts and
passwords.
3.1 Configuring the SNMP/WEB Interface by EzSetting
1. Prepare a workstation (Microsoft Windows 9x, Me, NT4.0, 2000, 2003, XP or later installed).
2. Make sure both the DIP-switches of SNMP/WEB Interface to OFF position (default: normal mode) to enable network transmis-
sion.
3. Make sure the workstation and SNMP/WEB Interface device are in the same LAN.
4. Put the provided CD in the CD-ROM drive and find the SNMP/WEB Interface EzSetting then launch it.
5. Press the Discover button to search all
of the UPS in the LAN. All of the UPS
SNMP DEVICE will be listed in the
Device List. (See 3.1-1)
If you want to search the SNMP/WEB
Interface devices in a different domain
network, just change the subnet and
subnet mask addresses then press the
Discover button to list them.1. Prepare
a workstation (Microsoft Windows 9x,
Me, NT4.0, 2000, 2003, XP or later
installed).
6. If the SNMP/WEB Interface device can
not be found, check the networking
port UDP 3456 in the OS. Open it if it
is blocked.
7. Select the device in the device list to
configure the network parameters then
press the Modify button to provide your
account and password. The default
account and password are admin and
password. (See 3.1-2)
8 - Ref.: IOMNETRTXX02-GB 01
klick to
klick to
www www
u-s-v
Y O U R C O N N E C T I O N TO S A F E T Y
ACDC-DCDC

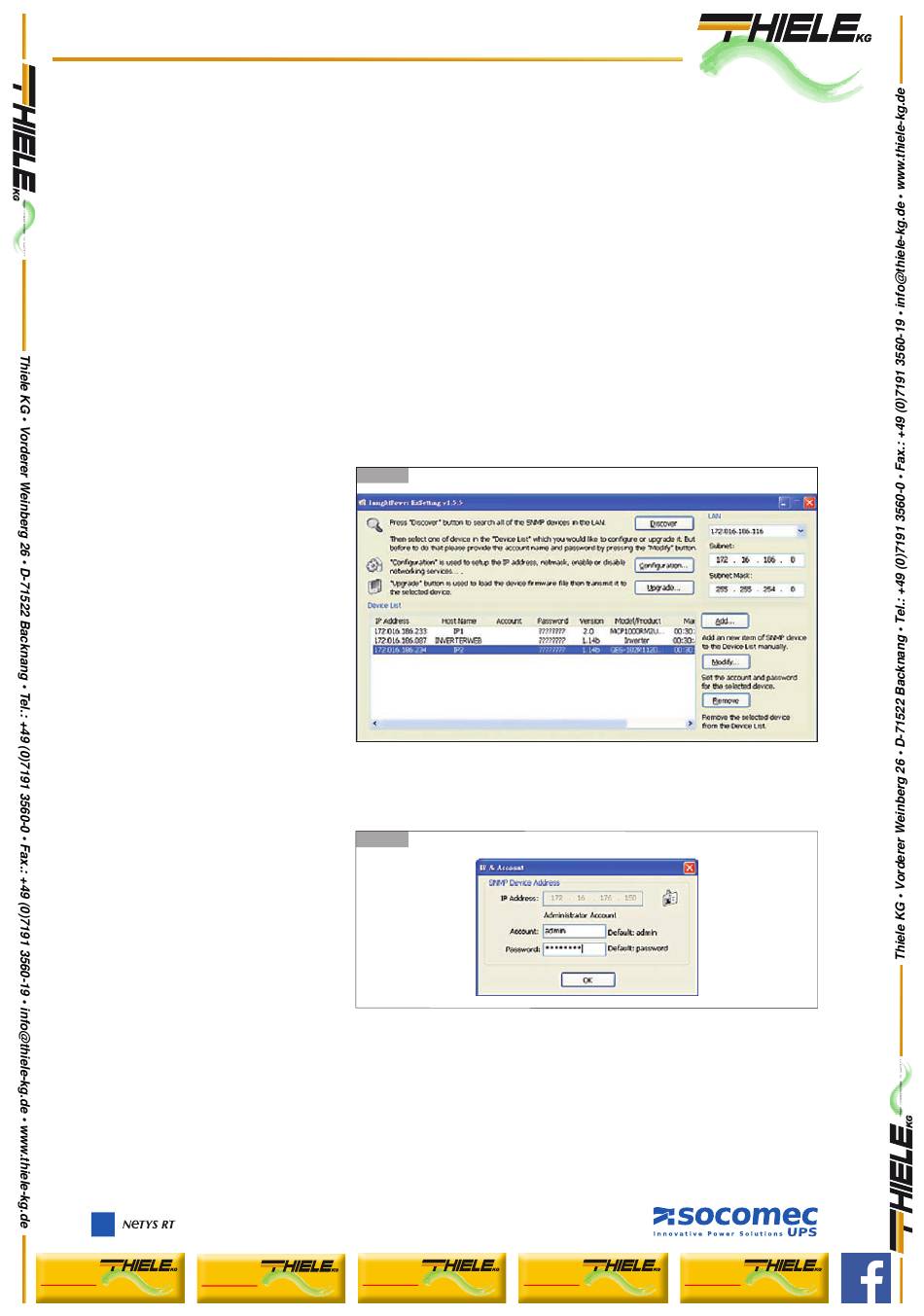

3.1-1
EzSetting screen.
3.1-2
Provide the account and password.
