4. ELECTRICAL INSTALLATION

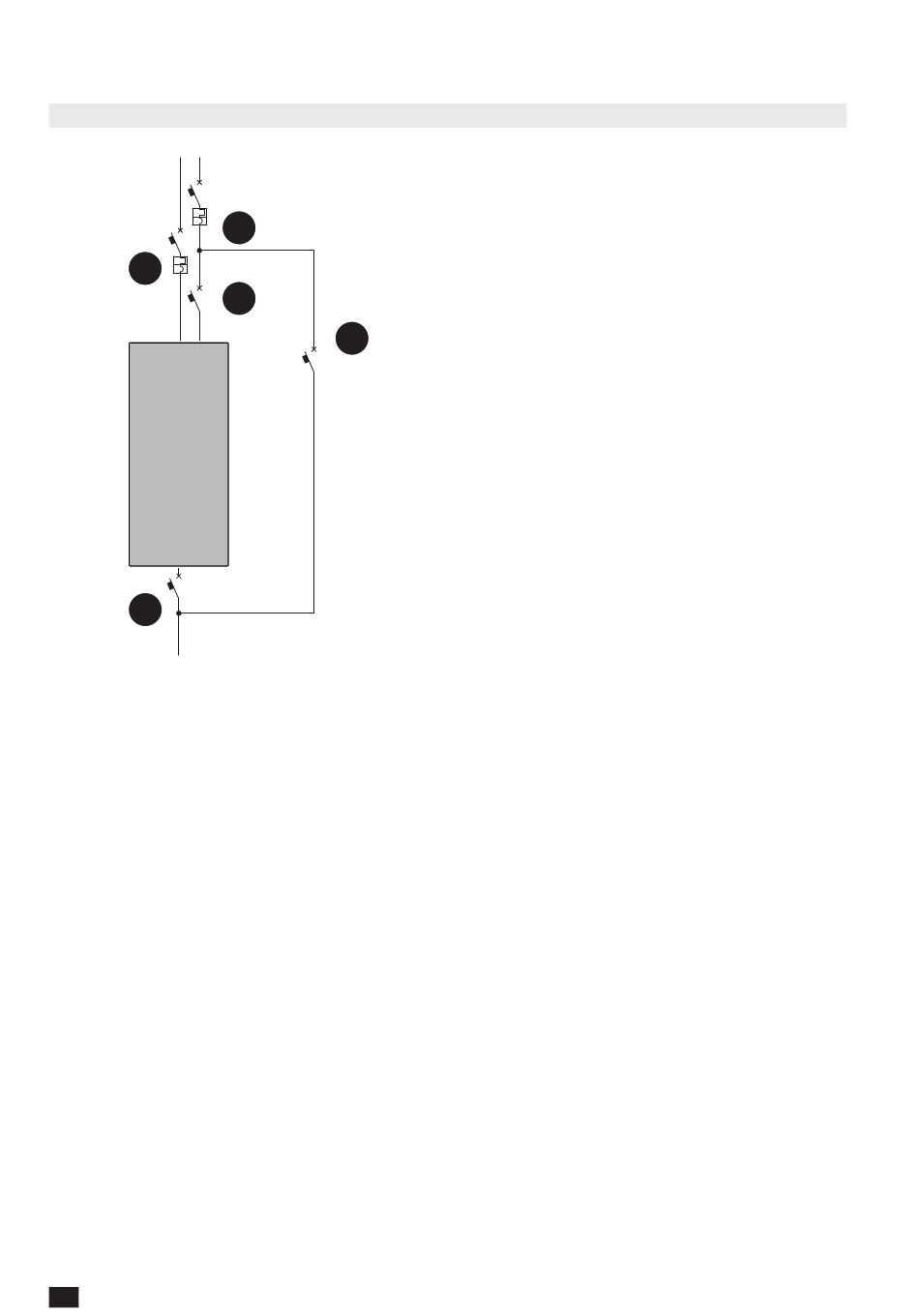

4.1 UPS SINGLE CONFIGURATION

MAINS
A
UPS
G
12 EN
AUX MAINS
B
I
F
OUT
KEY
A Input mains thermal-magnetic circuit breaker.
B Auxiliary mains thermal-magnetic circuit breaker.
F (1) External maintenance by pass switch.
G Unit output switch.
I Unit Auxiliary mains switch
1. Connect a normally-closed early make contact from the
External Maintenance bypass switch to the dedicated
connector (if present) or to the ADC+SL board.
MASTERYS BC+ 10-40 kVA - Ref.: IOMMASBCXX0G-EN 00
