4. ELECTRICAL INSTALLATION

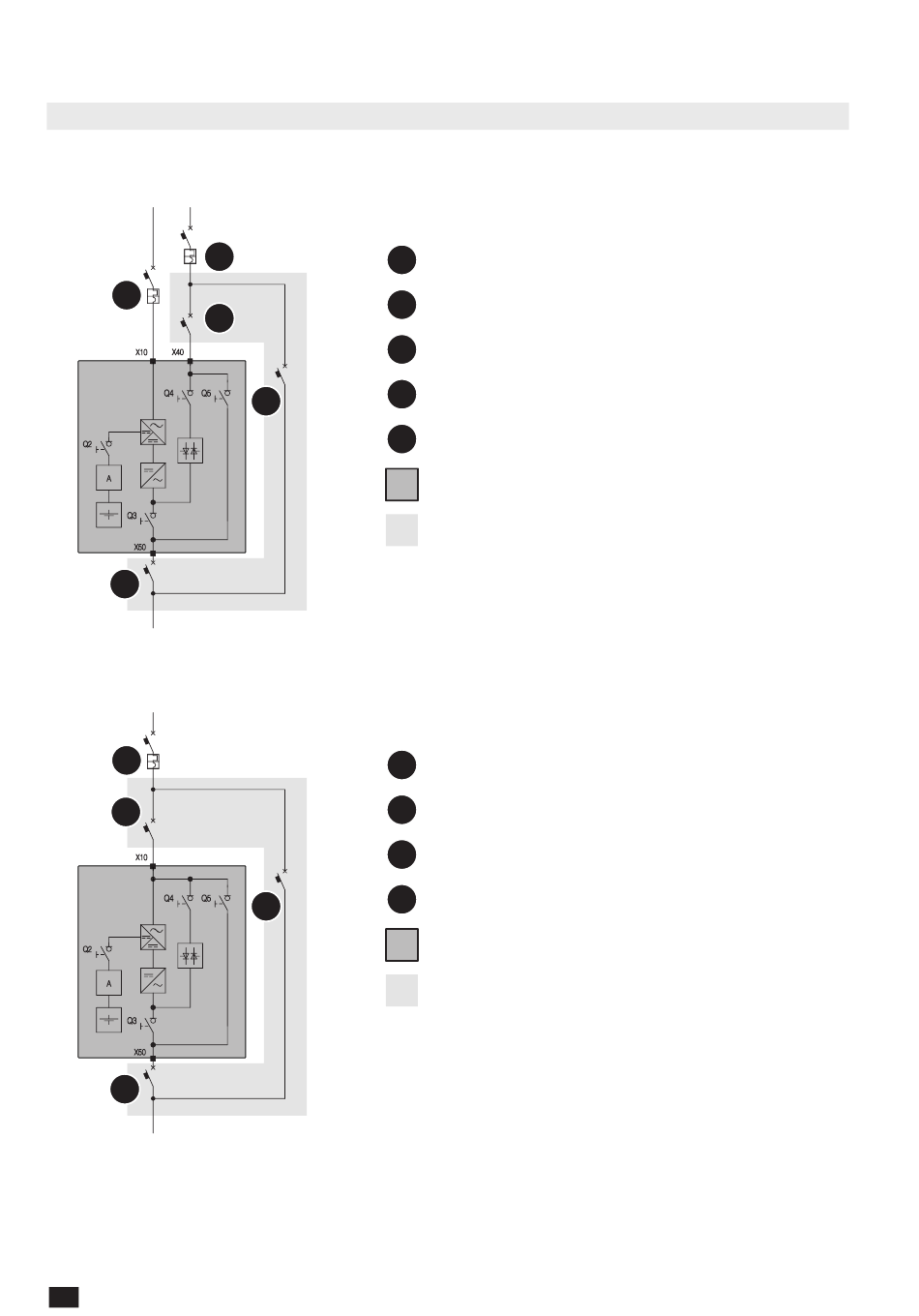

4.1 UPS single confi guration

4.1.1 Mains and Auxiliary mains connected separately (

MAINS AUXILIARY
MAINS
A
X10 X40
Q4
X20
Q2
A
Q3
X50
G
OUT
4.1.2 Mains and Auxiliary mains connected together (
MAINS
A
J
X10
Q4
X20
Q2
A
Q3
X50
G
OUT
12 EN
KEY
B
I
Q5
F
KEY
Q5
F

with internal batteries

Input mains thermal-magnetic circuit breaker.
A
Auxiliary mains thermal-magnetic circuit breaker.
B
F External maintenance bypass switch
Unit output switch.
G
Unit Auxiliary mains switch.
I
UPS
External maintenance bypass
1. Connect a normally-closed early make contact from the External
Maintenance bypass switch to the dedicated connector (if present) or to
the ADC+SL board.
2. See 'Standard features and option' chapter.
with internal batteries
Input mains thermal-magnetic circuit breaker.
A
External maintenance bypass switch
F
G Unit output switch.
Unit Input mains switch.
J
UPS
External maintenance bypass
1. Connect a normally-closed early make contact from the External
Maintenance bypass switch to the dedicated connector (if present) or to
the ADC+SL board.
2. See 'Standard features and option' chapter.
MASTERYS BC+ 10-40 kVA - IOMMASBCXX0G-EN 02 - SOCOMEC
)
