8. Click on the Configuration button and
setup the essential network parame-
ters. (See 3.1-3)
3.2 Configuring the SNMP/WEB Interface throught COM Port
1. Prepare a workstation (Microsoft Windows 9x, Me, NT4.0, 2000, 2003, XP or later installed).
2. Use the RJ45 to DB9 serial cable that provided from package connect between the SNMP/WEB Interface COM port and the
COM port on the workstation.
3. Set both the DIP-switches of the SNMP/WEB Interface device to OFF position (normal mode).
4. From the workstation running Microsoft Windows (9x, Me, NT4.0, 2000, 2003, XP or later,), and click on the HyperTerminal icon
of the accessory programs group.
5. Enter a name and choose an icon for the connection.
6. Select direct COM port connection.
7. Setup the COM port parameters - 2400 bps, 8 data bits, no parity, 1 stop bit and no flow control.
8. Set both the DIP-switches of the SNMP/WEB Interface to ON position (configuration mode). Messages will then are displayed
on the screen; afterwards, key in the administrator account (default account is admin) and password (default password is
password). The SNMP/WEB Interface configuration utility main menu will be displayed on the screen. Please refer to the Text
Mode Configuration section for more information.
3.3 Configuring the SNMP/WEB Interface throught Telnet
1. Connect the SNMP/WEB Interface to the network.
2. Prepare a workstation (Microsoft Window, Max OSX or Linux installed) which is connected to the same LAN.
3. Make sure both the DIP-switches of the SNMP/WEB Interface to OFF position (normal mode).
4. From the Windows workstation running DOS Prompt and type "telnet HostName or IP" to open the telnet connection with SNMP/
WEB Interface. For other operating system user, please run the OS shell and type the same command as in the DOS prompt.
5. Messages will then are displayed on the screen; afterwards, key in the administrator account (default account is admin) and
password (default password is password). The SNMP/WEB Interface configuration main menu will be displayed on the screen.
Please refer to the Text Mode Configuration section for more information.
Note: SNMP/WEB Interface will terminate the telnet connection if there is no data transmittion in 1 minute.
klick to
klick to
www www
u-s-v
Y O U R C O N N E C T I O N TO S A F E T Y
ACDC-DCDC
3.1-3

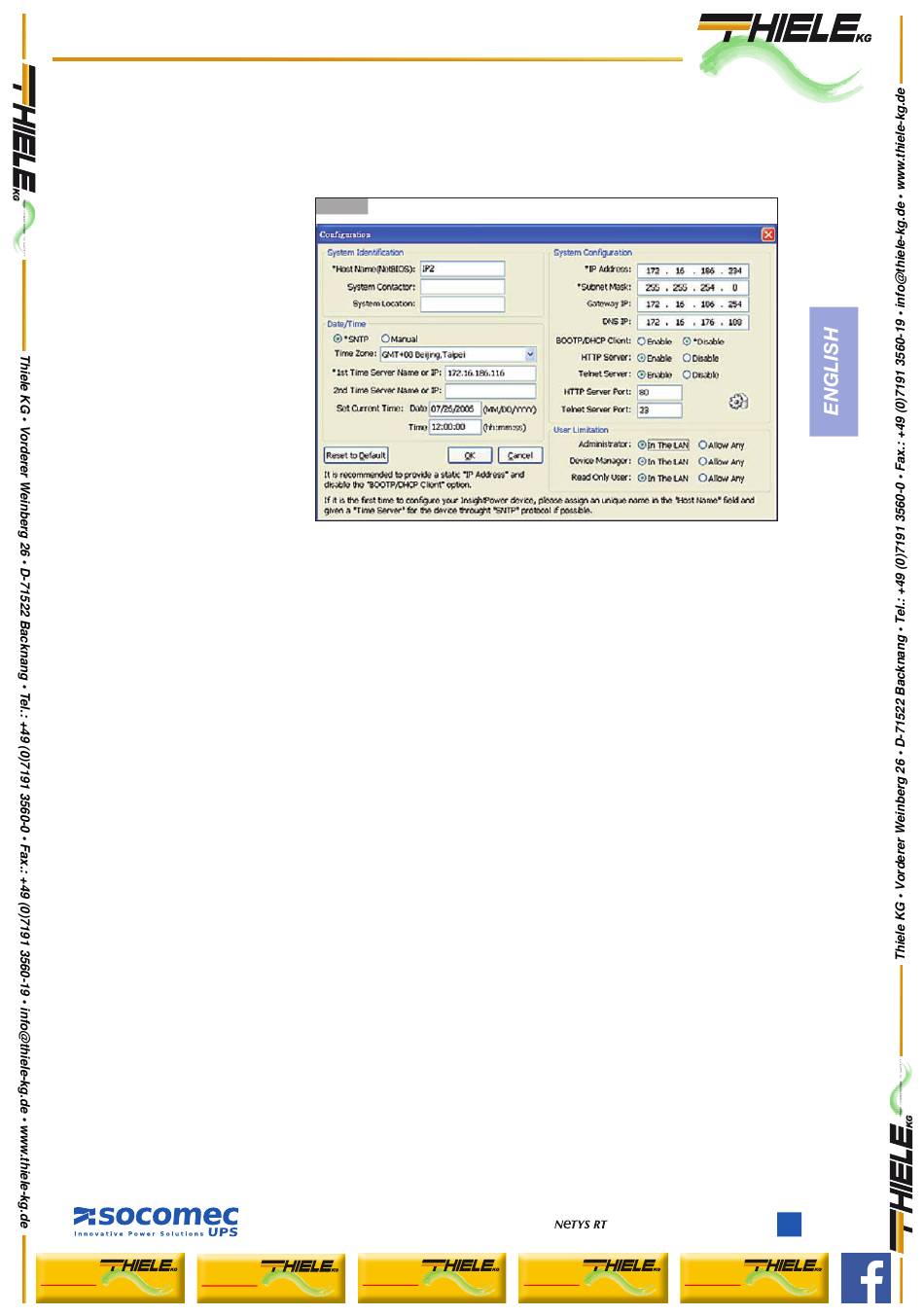

Configure the system parameters.
