  • Page 1 YOUR CONNECTION TO SAFETY SNM P/W EB Int e rfac e UP S SNMP Ca rd Installation and operating manual klick to klick to klick to klick to klick to u-s-v Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y...

  • Page 2: Table Of Contents

    YOUR CONNECTION TO SAFETY TABLE OF CONTENTS 1. INTRODUCTION ............4 1.1 Model Differences .

  • Page 3: Introduction

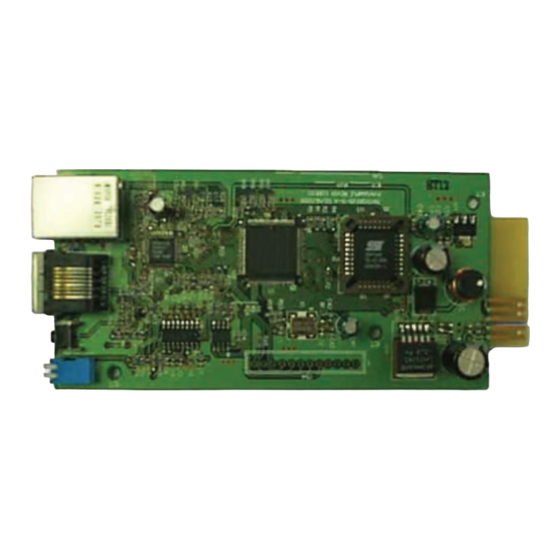

    YOUR CONNECTION TO SAFETY 1. INTRODUCTION 1.1 Model Differences There are 2 models for SNMP card: One is SNMP/WEB Interface SNMP card with golden finger connector, the other one is mini SNMP card. Their outlines are as the following: • SNMP/WEB Interface SNMP Card There is an additional COM port for 1.1-1 SNMP/WEB Interface SNMP card with...

  • Page 4: Features

    YOUR CONNECTION TO SAFETY 1. INTRODUCTION 1.2 Features • Network connection through RJ45 connector Allows connection of the UPS directly to the ethernet network through a RJ45 connector without using RS232 ports on the compu- ter and without loading any individual UPS management software on the network server. •...

  • Page 5: First Installation

    YOUR CONNECTION TO SAFETY 2. FIRST INSTALLATION 2.1 First Installation Please check your network environment, if there is a BOOTP/DHCP server in your LAN then begin from step 1, otherwise start from step 9. 1. Connect the SNMP/WEB Interface device in your LAN. 2.
  • Page 6 YOUR CONNECTION TO SAFETY 2. FIRST INSTALLATION 4. How to refresh the NetBIOS table in Windows operating system? Answer: Sometimes the IP address of SNMP/WEB Interface will be changed but keep the same host name, although Windows will update its NetBIOS table periodically but we can force it to purge its cache immediately by typing the following command “nbtstat -R.

  • Page 7: Configuration

    YOUR CONNECTION TO SAFETY 3. CONFIGURATION The easiest way to configure the SNMP/WEB Interface is running EzSetting, you can find the software in the CD. Please see below sub-section for more information. If you have configured the essential network parameters successfully, you can launch the internet browser or telnet to the device which you just assigned to do detail configuration.

  • Page 8: Configuring The Snmp/Web Interface Throught Com Port

    YOUR CONNECTION TO SAFETY 3. CONFIGURATION 8. Click on the Configuration button and 3.1-3 Configure the system parameters. setup the essential network parame- ters. (See 3.1-3) 3.2 Configuring the SNMP/WEB Interface throught COM Port 1. Prepare a workstation (Microsoft Windows 9x, Me, NT4.0, 2000, 2003, XP or later installed). 2.

  • Page 9: Text Mode Configuration

    YOUR CONNECTION TO SAFETY 3. CONFIGURATION 3.4 Text Mode Configuration 3.4-1 SNMP/WEB Interface Main menu. UPS Web Card Main Menu UPS Web Version 1.0 [1] . User Manager [2] . System Configuration [3] . SNMP Access Control [4] . SNMP Trap [5] .

  • Page 10: System Configuration

    YOUR CONNECTION TO SAFETY 3. CONFIGURATION 3.6 System Configuration 3.6-1 System Configuration menu. System Configuration [1] . IP Address: 192.168.001.100 [2] . Subnet Mask: 255.255.255.000 [3] . Gateway IP: 192.168.001.254 [4] . DNS IP: 192.168.001.001 [5] . BOOTP/DHCP Client: Enable [6] .

  • Page 11: Snmpv1 Access Control

    YOUR CONNECTION TO SAFETY 3. CONFIGURATION 3.7 SNMPv1 Access Control If you wish to use a workstation with 3.7-1 SNMP Access Table. SNMP Manager installed, or if you wish to set more restrictive SNMP/WEB Interface SNMP Access Table access, you can use the access table to Index NMS IP Community...

  • Page 12: Wake On Lan

    YOUR CONNECTION TO SAFETY 3. CONFIGURATION 3.10 Wake On LAN SNMP/WEB Interface supports the 3.10-1 Setting Trap Receivers. magic packet to wakeup workstations in 2 conditions: power restore or system Wake On LAN startup with a delay time. Index MAC Address Delay Trigger Conditions 00-0c-08-34-4d-57...

  • Page 13: Managing Snmp/Web Interface

    YOUR CONNECTION TO SAFETY 4. MANAGING SNMP/WEB INTERFACE 4.1 Running the Web Browser Internet Explorer 1. Make sure that you have a TCP/IP network already installed. 2. If there is no DHCP network service on the network, contact your network administrator to get an IP address for you workstation that has the same network’s address as the SNMP/WEB Interface IP address.

  • Page 14: Email Notification

    YOUR CONNECTION TO SAFETY 4. MANAGING SNMP/WEB INTERFACE 4.5 Email Notification This page describing of UPS email notification setting to let administrator configure Mail server and Mail receivers in order to receive notification or report from SNMP/WEB Interface by email once power event was occurred. 1.

  • Page 15: Specification

    YOUR CONNECTION TO SAFETY 5. SPECIFICATION 5.1 Technical Specification Network Connection RJ-45 jack connector Operating Temperature 0 ~ 40° C Operating Humidity 10 ~ 80 % Power Input 9~24V DC Power Consumption 1 Watt Maximum Size 130 mm x 60 mm (L x W) Weight 58 g 5.2 PIN Assignment...
