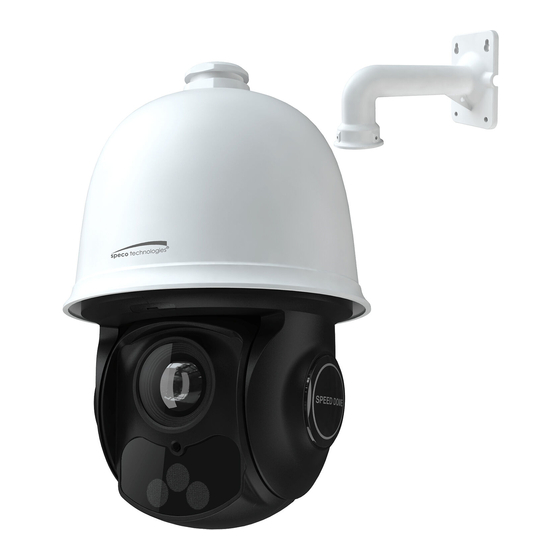

- Page 1 User Manual 4MP PTZ Network Camera O4P30X2 Please read this instruction carefully before operating the unit and keep it for further reference...
- Page 2 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC/DC24V/AC24V power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 3 Statement This guide is for reference only. Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation.
-
Page 4: Table Of Contents
Table of Contents Introduction ..........................................2 Web Access and Login ......................................3 Live View..........................................4 PTZ Menu Setup ........................................6 System Information ................................6 System Setup ..................................6 4.2.1 Auto PT Flip ................................. 7 4.2.2 Language Setup................................7 4.2.3 RS485 Setup ................................7 4.2.4 Date Setup .................................. - Page 5 Event Setup ...................................24 5.4.1 Motion Detection ..............................24 5.4.2 Other Alarms ................................25 5.4.3 Alarm In (Sensor Input) .............................27 5.4.4 Alarm Out .................................27 5.4.5 Alarm Server ................................28 5.4.6 Smart Tracking ................................28 Analytics Configuration .................................30 5.5.1 Abnormality ................................30 5.5.2 Line Crossing ................................31 5.5.3 Intrusion ..................................32 5.5.4 Region Entrance ................................34...
-
Page 6: Introduction
Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features ⚫ Built-in PoE (Power over Ethernet) ⚫... -
Page 7: Web Access And Login
2 Web Access and Login The IP camera settings can be accessed via a web browser (Internet Explorer 8 and up) through the LAN. ⚫ Access through IP Scanner Network connection: ①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. -
Page 8: Live View
3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface. Icon Description Icon Description Original size Color abnormal indicator Fit correct scale Abnormal clarity indicator Auto (fill the window) Scene change indicator Full screen Line crossing indicator... - Page 9 The descriptions of the control panel are as follows: Icon Description Icon Description Move upper left direction Move upper right direction Move up Stop movement Move left Move right Move lower left direction Move lower right direction Move down Speed adjustment Zoom out Zoom in Focus -...
-
Page 10: Ptz Menu Setup
4 PTZ Menu Setup On the PTZ control panel of IE remote preview interface, call Preset 95 and click . This will take you to see the following main menu setup. The menu setup can be displayed when the resolution of the live is set to 1920×1080. After you go to the main menu interface, you can select the menu by clicking the direction button ( ：To select menu by moving up and down. -
Page 11: Auto Pt Flip
4.2.1 Auto PT Flip Select Auto PT Flip and then click to set up the menu on the right; click button to select On/Off. If “On” is selected, please click button to return to the menu on the left and click button to select Exit. -
Page 12: North Setup
4.2.6 North Setup Go to System Setup→North Setup as below: Choose a location by clicking the direction button. ① Select STORE to save the setting. ② The horizontal angle will treat the north position as a reference; otherwise it will treat the horizontal origin as a reference to ③... -
Page 13: Camera Control
4.3.1 Camera Control After you select Camera Control, you will see the following menu. 【Brightness】: Set the brightness level of the camera’s image. 【Sharpness】: Set the resolution level of the image plane and the sharpness level of the image edge. 【Contrast】: Set the color difference between the brightest and darkest parts. -
Page 14: Image Setup
【Defog】: Activating this function and setting an appropriate value as needed in foggy, dusty, smoggy or rainy environment to get clear images. 【Gamma】 ：Measurement of the contrast of an image. 【VE】: Visibility enhancement. 【High Sensitivity】: Set it as needed. 4.3.2 Image Setup Select Image Setup to go to the following sub-menu. -
Page 15: Lens Setup
【MWB Blue Gain】 ：The operation is effective in manual mode. ⚫ AGC The larger the number is, the higher the brightness and the more the noises of the image are. ⚫ Image Flip ❖ MIRR: Turn over the image left or right. ❖... -
Page 16: Infrared Control
❖ Auto：Camera will automatically switch the mode between day and night as the ambient illumination. ❖ Night：The camera will be night mode at all time. You’d better use this mode at night. ❖ Day: The camera will be day mode at all time. You’d better use this mode in daytime. ❖... -
Page 17: Cruise Setup
④ Press iris – to switch menu mode and PTZ mode. And then set the position of the preset by clicking the direction buttons. ⑤ Set the title by clicking button. Save the setting. 4.4.2 Cruise Setup Go to Dome Function→Cruise Setup menu as below: In this interface, by programming presets in cruise list in advance, the system will keep calling those presets at the set time in sequence when executing cruise command so that non-stop monitoring between multiple important positions can be achieved. -
Page 18: Task Setup
Go to “Edit Group” menu as shown below. 8 cruises can be set in a group. CRU 1 stands for Cruise 1, CRU 2 stands for Cruise 2 and so on. “Run Group” means to run the cruises in order. 4.4.4 Task Setup Go to Dome Function→Task Setup menu as shown below: By dividing 24 hours into several periods and appointing different commands for each period, the camera system will automatically... -
Page 19: Alarm Setup
trace. Setting Steps: ① Choose the trace number. ② Edit the trace. Enter the trace setting menu. Click “Iris –”to start recording trace. Control the dome movement by direction buttons and then save the setting. Each trace can record up to 180s. If the time exceeds 180s, the system will automatically save the operation data and return to the previous menu. -
Page 20: Wiper Setup
The setting steps: ① Enable the home position function and select the preset which should be set in advance. ② Then select delay time (range from 007s to 180s) and exit the menu. When the stand-by time of the dome camera exceeds the delay time, the camera will automatically execute the command to monitor the selected preset. -
Page 21: Camera Configuration
5 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 5.1 System Configuration 5.1.1 System Information In the “System Information” interface, the system information of the device is listed. 5.1.2 Date and Time To set the time and date, go to System→Date and Time. -
Page 22: Storage
be selected to save to the local PC. 5.1.4 Storage Go to System→Storage to go to the interface as shown below. ⚫ SD Card Management When the card is used for the first time, click the “Format” button to format the SD card. All data on the card will be cleared by clicking this button. - Page 23 Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green means scheduled. Blank means unscheduled. “Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline. “Erase”: Delete the schedule.
-
Page 24: Video Configuration
snapshots is less than the set quantity of snapshots. Timing Snapshot: Enable timing snapshot first and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording). 5.2 Video Configuration Video Configuration includes Image Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest. -
Page 25: Video / Audio Configuration
Drag “ ” icons to set the time of day and night. Blue means day time and blank means night time. If the current mode of camera parameters is set to “Timing”, the image configuration mode will automatically switch between day and night according to the schedule. -
Page 26: Osd Configuration
Audio Encoding: G711A and G711U are selectable. Audio Type: LIN. Note: only some models support audio input/output. If your PTZ camera doesn’t support this function, please skip the above- mentioned audio setup instruction. 5.2.3 OSD Configuration Go to Video→OSD interface as shown below. Set time stamp, device name, OSD content and picture overlap here. -
Page 27: Ptz Configuration
To set up video mask: 1. Enable video mask. 2. Click direction buttons to change the area you want to mask. 3. Click “Draw Area” and then drag the mouse to draw the video mask area. 4. Return to the live to verify that the area have been drawn as shown as blocked out in the image. To clear the video mask: Select the mask area in the mask area list and then click the “Delete”... -
Page 28: Restore
⚫ Password Setting If the password is set, you must enter the password every time you go to the menu of the PTZ by calling preset NO. 95. Go to Config→PTZ→Setting→Others. You can set the password of the PTZ menu. 5.3.2 Restore It includes the function of reset and clear. -
Page 29: Other Alarms
Move the “Sensitivity” scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select “Add” and click “Draw”. Drag the mouse to draw the motion detection area; Select “Erase” and drag the mouse to clear motion detection area. - Page 30 2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detectionchapter for details. ⚫ IP Address Conflict 1.
-
Page 31: Alarm In (Sensor Input)
5.4.3 Alarm In (Sensor Input) This function is only available for some models. To set sensor alarm (alarm in): Go to Event Setup→Alarm In interface as shown below. 1. Click “Enable” and set the alarm type, alarm holding time and sensor name. 2. -
Page 32: Alarm Server
camera switches to day mode or night mode. Timing: Select the alarm type. Then click “Add” and drag the mouse on the timeline to set the schedule of alarm out; click “Erase” and drag the mouse on the timeline to erase the set time schedule. After this schedule is saved, the alarm out will be triggered in the specified time. - Page 33 control panel in the live view interface. Manual PTZ Control Priority: if this mode is selected, in smart tracking mode, you can control PTZ by clicking the buttons on the PTZ control panel in the live view interface and then the camera will immediately stop the tracking action. After you finish controlling PTZ for 5 seconds, the PTZ camera will return to the start tracking position and wait for the object to appear.
-
Page 34: Analytics Configuration
5.5 Analytics Configuration This series of IP cameras supports certain smart functions, such as line crossing detection, region intrusion detection, etc. These events can be triggered as alarm events. For more accuracy, here are some recommendations for installation. Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of detection. ⚫... -
Page 35: Line Crossing
2. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. 3. Click “Save” button to save the settings. 4. Set the sensitivity of the exception detection. Click “Sensitivity” tab to go to the interface as shown below. Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. -
Page 36: Intrusion
Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line. Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the pre-defined alarm line. - Page 37 1. Enable intrusion alarm and select the snapshot type and the detection target. 2. Set the alarm holding time. 3. Click the “Save” button to save the settings. 4. Set the alarm area of the intrusion detection. Click the “Area” tab to go to the interface as shown below. Set the alarm area number on the right side.
-
Page 38: Region Entrance
4. Keep the mounting angle of the camera at about 45°. 5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image. 6. -
Page 39: Target Counting
1. Enable region exiting detection, select the snapshot type and the detection target and set the alarm holding time and alarm trigger options. The detection setup steps are the same as line crossing detection. Please refer to the detection configuration of line crossing detection for details. - Page 40 2. Enable target counting and select the snapshot type and the detection target. Detection Target: Select the target to calculate. Human, motor vehicle and motorcycle/bicycle can be selected. Counting Reset: The current number of the target counting can be reset. You can choose to reset the counting daily, weekly or monthly. Click “Reset”...
-
Page 41: Face Comparison
5.5.7 Face Comparison 1. Go to Analytics→Face Detection as shown below. 2. Enable the face detection function. Save Source Information: if checked, the whole picture will be saved to an SD card when detecting a face. Save Face Information: if checked, the captured face picture will be saved to an SD card when detecting a face. Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). - Page 42 Use this to draw the approximate size of the face that you want the camera to capture. This is useful when there are multiple faces in the background or foreground that are not needed to be captured. To enable, Click “Draw Area” and drag the border lines of the rectangle to modify its size.
- Page 43 Click “Modify” to change people information and click “Delete” to delete this face picture. Set face comparison trigger options. Click “Comparison and Linkage” to go to the following interface. Deduplication Period: In the set period, delete the repeated comparison results. Similarity threshold: When the similarity of the captured face picture and the face picture added into the face database exceeds the similarity threshold, alarms will be triggered.
-
Page 44: Network Configuration
face comparison information. Area ①: captured face pictures; area ②: face comparison area ⚫ View the comparison details In area ②, click the compared face picture to bring up the following window. In this interface, you can view the detailed comparison information. -
Page 45: Port
Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera. Use PPPoE-Click the “PPPoE Config” tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP. -
Page 46: Server Configuration
HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. HTTPS Port: The default HTTPs port is 443. It can be changed to any port which is not occupied. Data Port: The default data port is 9008. Please change it as necessary. RTSP Port: The default port is 554. -
Page 47: Snmp
5.6.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, the SNMP function can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address. 1. -
Page 48: 802.1X
5.6.6 802.1x If it is enabled, the camera’s data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed. To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network. -
Page 49: Upnp
5.6.8 UPNP If this function is enabled, the camera can be quickly accessed through the LAN. Go to Network→UPnP. Enable UPNP and then enter UPnP name. 5.6.9 Email If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to Network→Email. -
Page 50: Https
Server Name: The name of the FTP server. Server Address: The IP address or domain name of the FTP. Upload Path: The directory where files will be uploaded to. Port: The port of the FTP server. Use Name and Password: The username and password that are used to login to the FTP server. 5.6.11 HTTPS HTTPs provides authentication of the web site and protects user privacy. -
Page 51: Qos
Click the “Create” button to create a private certificate. Enter the country (only two letters available), domain (camera’s IP address/domain), validity date, password, province/state, region and so on. Then click “OK” to save the settings. * Click “Create a certificate request” to enter the following interface. Click “Create”... - Page 52 Add user: 1. Click “Add” to pop up the following textbox. 2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. Please set the password according to the requirement of the password security level (Go to Setup→Security→Security Management→Password Security interface to set the security level). 4.
-
Page 53: Online User
3. Enter the old password of the user in the “Old Password” text box. 4. Enter the new password in the “New password” and “Confirm Password” text box. 5. Enter computer’s MAC address as necessary. 6. Click the “OK” button to save the settings. Note: To change the access level of a user, the user must be deleted and added again with the new access level. -
Page 54: Maintenance Configuration
enabled, login failure after trying six times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots. ⚫ Password Security Please set the password level and expiration time as needed. Password Level: Weak, Medium or Strong. -
Page 55: Reboot
5.8.2 Reboot Go to Maintenance→Reboot. Click the “Reboot” button to reboot the device. Timed Reboot Setting: If necessary, the camera can be set up to reboot on a time interval. Enable “Time Settings”, set the date and time and then click the “Save”... -
Page 56: Search
6 Search 6.1 Image Search In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here. ⚫ Local Image Search 1. Choose “Picture”—“Local”. 2. - Page 57 Click to return to the previous interface. ⚫ SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.
-
Page 58: Video Search
Icon Description Icon Description Close: Select an image and click this Close all: Click this button to close all button to close the image. images. Save: Click this button to select the Save all: Click this button to select the path for saving the image on the path for saving all pictures on the PC. -
Page 59: Sd Card Video Search
Icon Description Icon Description Play button. After pausing the video, Pause button click this button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. 6.2.2 SD Card Video Search Click Search to go to the interface as shown below. - Page 60 4. Select the alarm events at the bottom of the interface. 5. Select mix stream (video and audio stream) or video stream as needed. 6. Double click on a file name in the list to start playback. The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1.
- Page 61 Click “Set up” to set the storage directory of the video files. Click “Open” to play the video. Click “Clear List” to clear the downloading list. Click “Close” to close the downloading window.
-
Page 62: Face Match Result Search
7 Face Match Result Search Click “Face Log” tab to go to the face recognition result search interface. Set the start time and end time and click “Search” to view the face recognition result. A photo of each recognized face is marked with a colored bar. The red color of the bar means no comparison result. -
Page 63: Appendix
Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1. - Page 64 Models: O4P30X2 Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
