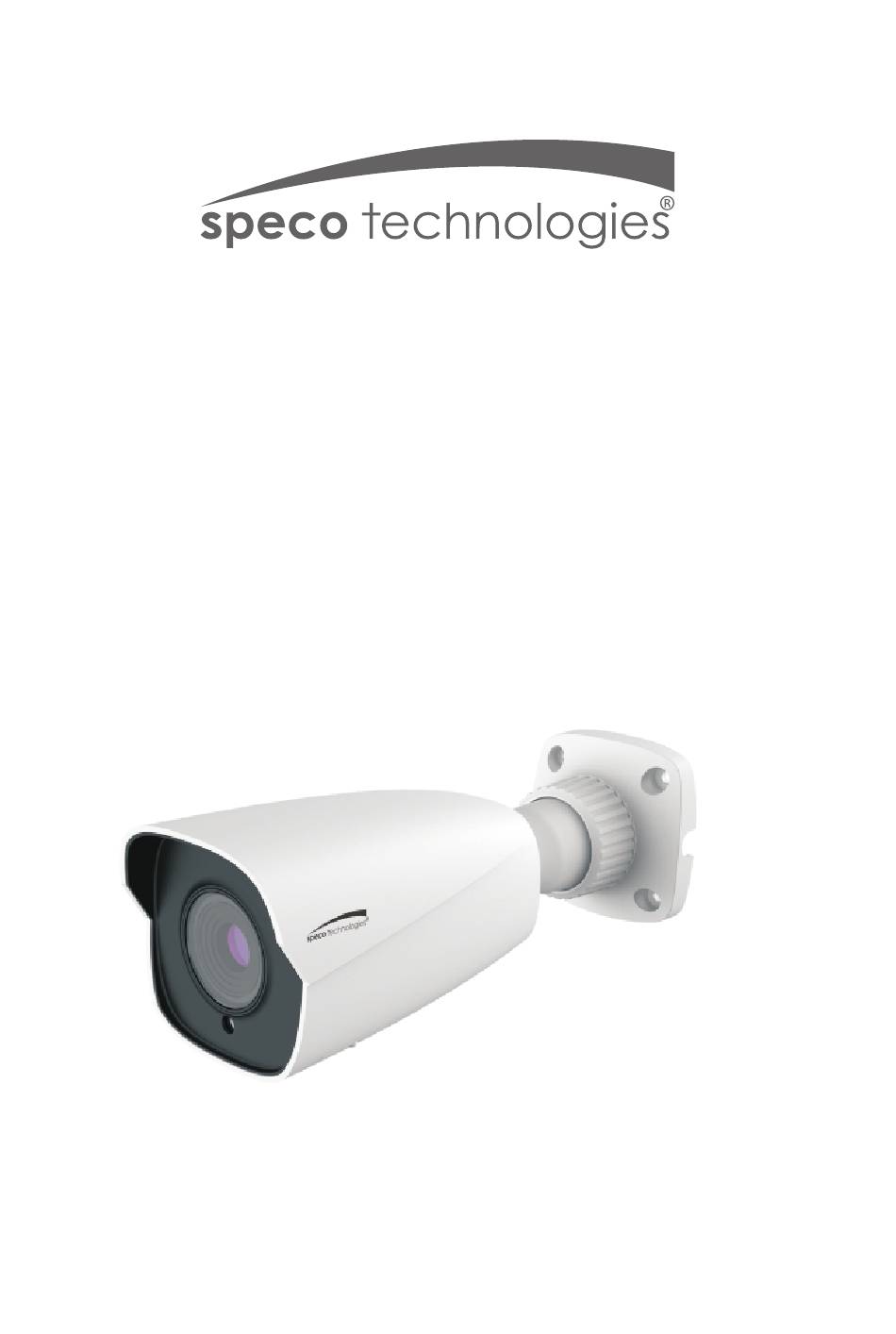

- Page 1 Quick Start Guide O4B7M...
- Page 2 Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■...
- Page 3 Camera Quick start guide Drill Template 4 tapping screws × 4 Rubber plug Plastic plug Junction box 1 machine screw Overview Overview Fixed ring DC power connector Mounting base Micro SD card slot Reset Ethernet connector Audio input connector...
- Page 4 DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②...
- Page 5 Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover ②...
- Page 6 Rubber plug ④ Connect the cables and then i nstall the camera onto the junction box as shown below. ⑤ Bracket Adjustment-Loosen the fixed ring to adjust the view angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation.
- Page 7 Fixed Ring Pan 360° Tilt 90° Web Operation and Login IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ②...
- Page 8 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins.
